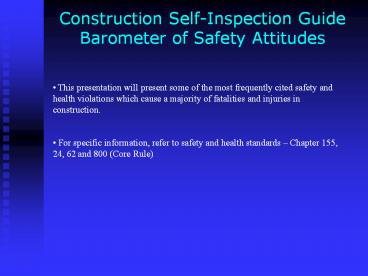

Construction Self-Inspection Guide Barometer of Safety Attitudes

1
Construction Self-Inspection GuideBarometer of
Safety Attitudes

• This presentation will present some of the most
  frequently cited safety and health violations
  which cause a majority of fatalities and injuries
  in construction.
• For specific information, refer to safety and
  health standards Chapter 155, 24, 62 and 800
  (Core Rule)

2
Power Lines
Minimum 10 foot clearance
3
Trenching/Excavation
Any trench four feet deep or more must be
protected.
4
Guardrails
Openings with a drop of four feet or more must be
guarded
5
Standard Guardrail Specification

• Top rail 3945 inches with mid-rail
• 200 pound load requirement

6
Scaffolding Fully Planked and With Guardrails
7
Stairways
Four or more risers must have handrails
8
Fall Protection
Elevations ten feet or greater must be protected
9
Fall Protection Work plan
10
Open Belts Pulleys, Chains and Sprockets
11
Power Saws Must Be Guarded
12
Chainsaws
Leg, face , hearing head protection required
13
Angle Grinders - 180 Guard Required
14
Ladders

• Extend 36 inches above landing
• Secure to prevent displacement

15
Articulating Boom Lift
Full body harness required at all times
16
Floor Holes/Openings
Covered and secured with no tripping hazards.
17
Electrical Hazards

• All temporary power must be GFCI-protected
• All electrical circuits and connections must be
  approved

18
Minimum Clothing
At least a short-sleeve shirt, long pants and
substantial footwear required
19
Hard Hats

• Readily accessible
• Must be worn whenever overhead hazards exist

20
Compressed Gas Cylinders
Must be stored properly
21
Vehicular Traffic Hazards
Employees must wear high-vis apparel
22
Housekeeping
During construction, continuous cleanup is
required to eliminate tripping hazards
23
First Aid Kits Training
First-aid supplies must be readily available
24
Accident Prevention Program

• Written in outline format
• Tailored to the particular operation

25
Crew-leader Meetings
Document meetings and attendance
