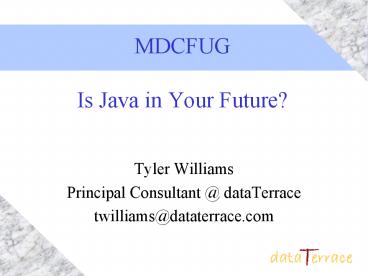

MDCFUG Is Java in Your Future

1
MDCFUGIs Java in Your Future?

• Tyler Williams
• Principal Consultant _at_ dataTerrace
• twilliams_at_dataterrace.com

2
Agenda

• The Java Learning Curve
• Why This is a Good Thing
• J2EE Breakdown
• Sample Program
• Q A

3
My Background

• Consultant 2 1/2 years
• Certified CF Developer
• 4 years CF
• 1 year Java
• 6 years Oracle

4
Java Language Barriers

• Non-Tag Based
• Lower Level Than CF (more code)
• Object Oriented
• Strongly Typed Case Sensitive
• Large Function Library
• Powerful, Complex and Less Forgiving

5
Power of Perception

• CF is Easy to Learn
• Ease of Entry Brings Less Qualified Programmers
  to the Language
• More Low Grade Programs are Written
• CF Language Gets a Bad Rap

6
The Good Side of Barriers

• Less Competition
• Higher Rates
• Protected Reputation

7
J2EE - Enterprise Java

• Server-side Web Development
• Standard Created by Sun
• Many Competing Application Servers
• App Servers Must Pass a Compatibility Test Suite
• Vendors Add Extensions JSP Tag Libraries

8
J2EE Technologies

• Lower Complexity
• Java Server Pages (JSP)
• Servlets
• Higher Complexity
• JDBC (Database Connectivity)
• Enterprise Java Beans (EJB)
• Java Messaging Service (JMS)

9
JSP Example

• String str "8th"
• Simple JSP Page
• Welcome to the dimension

10
Servlet Example

• import java.io.
• import servlet.
• import servlet.http.
• public class SimpleServlet extends HttpServlet
• public void doGet (HttpServletRequest req,
  HttpServletResponse res)
• throws ServletException, IOException
• response.setContentType(text/html)
• PrintWriter out response.getWriter()
• out.println(Simple Servlet
  Example)
• out.println()
• String str "8th"
• out.println(Welcome to the str
  dimension)
• out.println()

11
JDBC Example

• Class.forName("oracle.jdbc.driver.OracleDriver")

• String stUrl_ "jdbcoraclethin_at_host1521sid"
• Connection connection_ DriverManager.getConnecti
  on(stUrl_, username",password")
• PreparedStatement statement_ connection_.prepare
  Statement("SELECT fname, lname FROM EMPLOYEE")
• ResultSet rs statement_.executeQuery()
  //execute query
• while (rs.next())
• String firstName rs.getString(1)
• String lastName rs.getString(2)
• strOut strOut firstName " " lastName
  "
  "
• rs.close()
• statement_.close()
• connection_.close()

12
CF Comparison

• SELECT fname, lname FROM EMPLOYEE
• main_select.fname main_select.lname

13
JDBC Metadata

• getColumnCount - Returns the number of columns in
  this Result Set
• getColumnName - Get the designated column's name
• getColumnType - Retrieve the designated column's
  SQL type
• isAutoIncrement - Indicates whether the
  designated column is automatically numbered, thus
  read-only

14
Model-View-Controller (MVC)

• Model Data JDBC
• View Presentation JSP
• Controller Framework Servlet

15
MVC Flow
Client
1) Client submits a page request 2) Servlet
interprets request 3) Servlet retrieves
necessary info from JDBC 4) Servlet hands off
request and details to JSP for formatting and
presentation
Servlet
JDBC
JSP
16
Complete MVC Example

• DimensionApp.java (Servlet)
• DimensionVO.java (JDCB Class)
• Display.jsp (JSP)

17
DimensionApp.java

• import java.io.
• import javax.servlet.
• import javax.servlet.http.
• import DimensionVO
• public class DimensionApp extends HttpServlet
• public void service (HttpServletRequest req,
  HttpServletResponse res)
• throws ServletException, IOException
• DimensionVO dvo new DimensionVO()
• String mydim dvo.getDimension()
• req.setAttribute("dimension", mydim)
• RequestDispatcher rd
• rd getServletContext().getRequestDispatche
  r("/jsp/Display.jsp")
• rd.forward(req, res)

18
DimensionVO.java

• import java.sql.
• import java.util.
• import java.io.
• public class DimensionVO
• String strOut
• String stUrl_ "jdbcodbcmdcfug"
• private Connection connection_ null
• private PreparedStatement statement_ null
• private ResultSet rs
• public String getDimension ()
• throws IOException
• try
• Class.forName("sun.jdbc.odbc.JdbcOdbcDriver")
• Connection connection_ DriverManager.getConne
  ction(stUrl_, "Admin","")
• statement_ connection_.prepareStatement("SELE
  CT dimension FROM DIMENSIONS")
• rs statement_.executeQuery() //execute
  query
• String mydim rs.getString(1)
• strOut mydim
• rs.close()

19
Display.jsp

• sion")
• MVC Example
• nbsp
• Welcome to the str dimension

20
Java Resources

• Javas Home _at_ Sun
• http//java.sun.com
• Java Portals
• http//www.theserverside.com
• http//www.jguru.com/
• Suns JDBC Tutorial
• http//developer.java.sun.com/developer/onlineTra
  ining/Database/JDBC20Intro/

21
Java Bookshelf

• The Java Language
• Java in a Nutshell - Flanagan
• Servlets/JSP
• Java Servlet Programming - Hunter
• Web Development With JavaServer Pages -
  Fields/Kolb
• Core Servlets and JavaServer Pages - Hall
• J2EE Application Architecture
• Core J2EE Patterns - Alur
