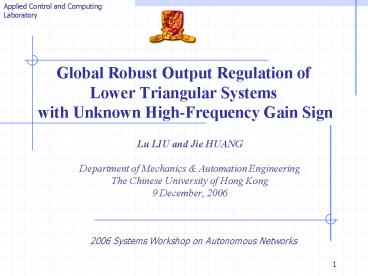

Global Robust Output Regulation of Lower
Triangular Systems with Unknown High-Frequency
Gain Sign
Applied Control and Computing Laboratory
  • Lu LIU and Jie HUANG
  • Department of Mechanics Automation Engineering
  • The Chinese University of Hong Kong
  • 9 December, 2006

2006 Systems Workshop on Autonomous Networks
2
Outline
  • Introduction
  • Problem Formulation
  • Main Result
  • An Example
  • Conclusion

Applied Control and Computing Laboratory
3
1. Introduction
Applied Control and Computing Laboratory
4
Background
  • The global robust output regulation problem for
    nonlinear systems in lower triangular form is
    considered with various solvability conditions.
  • A basic assumption is that the sign of the
    high-frequency gain, i.e., the control direction,
    is known.
  • The knowledge of the high-frequency gain sign
    makes control design much more tractable.

Applied Control and Computing Laboratory
5
Objective
  • Solve the global robust output regulation problem
    for nonlinear systems in lower triangular form
    without knowing the high-frequency gain sign.
  • Remark
  • Nonlinear systems in lower triangular form
    is an important class of nonlinear systems, and
    many systems can be converted into lower
    triangular form by coordinate transformation.

Applied Control and Computing Laboratory
6
Related Work
  • When the high-frequency gain sign is known
  • The global robust output regulation problem
    (GRORP) for nonlinear systems in lower triangular
    form has been solved by using the robust control
    method.
  • When the high-frequency gain sign is unknown
  • The same problem has been rarely considered in
    the existing literature.

Applied Control and Computing Laboratory
7
Proposed Approach
  • Approach
  • Integrate the robust control approach and
    the adaptive control approach to develop a
    Lyapunov direct method.

Applied Control and Computing Laboratory
8
2. Problem Formulation
Applied Control and Computing Laboratory
9
Problem Formulation
  • Nonlinear systems in lower triangular form
  • Remark
  • The high-frequency gain sign, i.e., the sign
    of

, is unknown.
Applied Control and Computing Laboratory
10
Problem Formulation
  • Global Robust Output Regulation Problem (GRORP)
  • Design a control law such that, for all
    bounded exogenous signal and any
    uncertain parameter , the
    trajectories of the closed-loop system starting
    from all initial states are bounded, and the
    tracking error e converges to zero asymptotically.

Applied Control and Computing Laboratory
11
Remark
  • Output regulation problem is more challenging
    than stabilization and the conventional tracking
    and disturbance rejection problem.
  • Requires more than stabilization.
  • The class of reference signals and disturbances
    are generated by some autonomous differential
    equation.

Applied Control and Computing Laboratory
12
Remark
  • A general framework has been established to
    convert the output regulation problem for a
    nonlinear system into a stabilization problem for
    an appropriately augmented system (Huang and
    Chen, 2004).
  • The GRORP for the original system can be
    converted into a GRSP for an augmented system
    composed of the original plant and the internal
    model
  • The solvability of the GRSP for the augmented
    system implies the solvability of the GRORP for
    the original system.

Applied Control and Computing Laboratory
13
Solvability of the Problem
  • Using the existing framework, the GRORP for the
    original plant can be converted into the GRSP for
    the augmented system
  • Remark
  • The augmented system is not in the lower
    triangular form as system (1). Some standard
    assumptions are needed to solve the stabilization
    problem for the augmented system.

Applied Control and Computing Laboratory
14
Standard Assumptions
Applied Control and Computing Laboratory
15
3. Main Result
Applied Control and Computing Laboratory
16
Control Strategy
  • When the sign of is known, the
    existing result gives
  • When the sign of is unknown, we
    propose

Applied Control and Computing Laboratory
17
Remark
  • Apply change supply rate technique to handle the
    dynamic uncertainty, and Nussbaum gain technique
    for the unknown high-frequency gain sign.
  • is introduced to estimate the unknown control
    coefficient b(w).
  • N(k) is a type of dynamically generated gain
    which oscillates to ensure that both positive and
    negative control directions are tried (Nussbaum,
    1983).

Applied Control and Computing Laboratory
18
Main Theorem
  • Theorem

Applied Control and Computing Laboratory
19
Idea of the Proof
  • Use a recursive approach to design virtual
    control
  • Define

Applied Control and Computing Laboratory
20
Idea of the Proof
Applied Control and Computing Laboratory
21
Outline of the Proof
  • By appropriately selecting the design functions,
    we obtain
  • then applying a lemma by Ye and Jiang and
    Barbalats lemma gives,

Applied Control and Computing Laboratory
22
4. An Example
Applied Control and Computing Laboratory
23
An Example
  • Plant
  • Exosystem

Applied Control and Computing Laboratory
24
  • Controller

Applied Control and Computing Laboratory
25
Simulation
Applied Control and Computing Laboratory
26
Simulation
Applied Control and Computing Laboratory
27
Simulation
Applied Control and Computing Laboratory
28
5. Conclusion
Applied Control and Computing Laboratory
29
Conclusion
  • Solved the GRORP for nonlinear systems in lower
    triangular form without knowing the
    high-frequency gain sign.
  • Obtained the control law by integrating the
    robust control method and the adaptive control
    method.

Applied Control and Computing Laboratory
30
Thank you!
