Bridged, ThreePath Fused MultiplyAdders

1

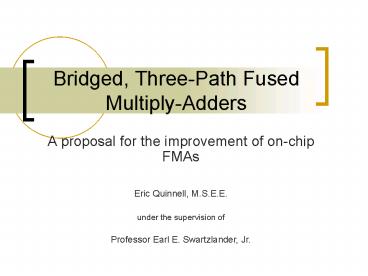

Bridged, Three-Path Fused Multiply-Adders

• A proposal for the improvement of on-chip FMAs

Eric Quinnell, M.S.E.E. under the supervision
of Professor Earl E. Swartzlander, Jr.
2
Qualification Committee

• Dr. Earl E. Swartzlander, Jr.
• Dr. Adnan Aziz
• Dr. Jacob Abraham
• Dr. Tony Ambler
• Dr. Jason Arbaugh
• Mr. Carl Lemonds

3
Outline

• Introduction
• Problem Statement
• Previous Work
• Proposed Work
• Expected Results
• Implementation
• Conclusion
• Questions

4
Introduction

• Proposed project in IEEE-754 (1985)
  double-precision format
• 52-bit significand/mantissa (fraction)
• 11-bit exponent
• 1-bit sign
• Follows format of previous papers on subject
• Focus on arithmetic, operand execution
• Exceptions, specials, denorms, NaN, infinity not
  considered

5
Fused Multiply-Add

• Principal paper and patent under Montoye et al.
  from IBM in 1990
• Equation found in any polynomial
• Used in DSP, FFT, graphics, division,
  transcendentals, dot-products, advanced
  mathematics
• Faster than FADD, FMUL
• Only one rounding stage

D (A x B) C
6
Fused Multiply-Add
RISC System/6000
Montoye et al., IBM 1990
7
Industrial Use

• IBM RS/6000
• IBM PowerPC 603 604 series
• HP PA 8000 series
• MIPS R10000
• ARM VFP10
• Intel Itanium

8
Problem Statement

• All industrial FMAs use RS/6000 architecture as
  base
• Many FMAs entirely replace FADD, FMUL. This taxes
  the stand-alone instructions. (Bad backwards
  compatibility)
• FADD (A x 1.0) B
• FMUL (A x B ) 0.0
• FMA has weak success in industry

9
Problem Statement
In order for the FMA unit to have a future in
processing and to continue the benefits of its
use, a new architecture that both reduces latency
and remains compatible with old applications must
be designed.
10
Previous work Power PC 603e
11
Previous Work HAL SPARC64

• pseudo-FMA forwards finished multiplies
  directly to the FPA
• FMA data is rounded twice, hence pseudo

12
Previous Work Lang/Bruguera

• Combine addition/rounding stage
• Critical path is through LZA. Data waits at
  161-bit normalizer for shifting instructions

13
Previous Work Seidel Multi-Path

• 5-cases and paths
• Speculatively compute in parallel.
• Select path at the end based on correct exponent
  difference
• Stemmed from the dual-path FPA

14
Previous Work Seidel Multi-Path
15
Previous Work Xiao

• 3-input LZA equations to speed up critical path
  of Lang/Bruguera

16
Proposed Work Three-Path FMA

• Variation on Seidel multiple-path suggestion by
  reducing 5-cases to 3-paths
• Uses a Lang/Bruguera improvement to combine
  addition/rounding with a Xiao 3-input LZA for
  near path
• Architecture designed for reduced latency

17
(No Transcript)
18
Proposed Work Bridged FMA

• Variation of SPARC pseudo FMA.
• Keep full multiplier and adder in FPU.
• Bridge the two by re-using resources when FMA
  instruction is called
• Architecture designed for backwards compatibility
  with legacy code

19
(No Transcript)
20
Proposed Work Bridged, 3-Path FMA

• Combination of three-path FMA and bridged FMA
• Three-path for reduced latency
• Bridge for re-use of components, backwards
  compatibility
• Only needs to share multiplier

21
(No Transcript)
22
Expected Results

• 3-path FMA architecture expected to be fastest,
  lowest latency FMA to date
• Bridged FMA expected to perform execution without
  adding latency to multiplier/adder
• 3-path, bridged expected to provide both reduced
  latency and hardware reuse, providing a full
  execution hardware set option for future FPUs.

23
Implementation

• All proposed hardware, as well as an RS/6000,
  will be implemented for latency, area, and power
  comparison
• Implementation will be done using AMD 45 and 65nm
  HSpice models, timing tools, floorplanning, power
  estimation, routing, and parasitic extraction
• Tool licensing agreement in writing. Tool use
  will be considered a PR donation from AMD for
  support of UT dissertation research.

24
Implementation Schedule
25
Conclusion

• FMAs are a rising power in industrial level
  computing, with several chips already putting
  them to use
• No reduced latency improvements to the RS/6000
  architecture have been adopted in the 16 years
  since its introduction
• Single add or multiplication instructions are
  currently latency taxed in FMAs
• Proposed three-path and bridged architectures
  decrease FMA latency significantly and remain
  single add/multiply compatible
• Proposed architectures to be implemented on AMD
  45nm/65nm technology to prove theorized gains
