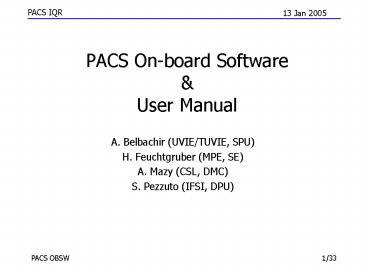

PACS Onboard Software

1
PACS On-board Software User Manual

• A. Belbachir (UVIE/TUVIE, SPU)
• H. Feuchtgruber (MPE, SE)
• A. Mazy (CSL, DMC)
• S. Pezzuto (IFSI, DPU)

2

• - 5 commandable units
• 6 interfaces
• 27 Mbytes memory
• (PROM,EEPROM,PRAM,DRAM)
• Virtuoso RTOS
• 2 different detection systems
• Autonomous operation
• Uplink bandwidth limit
• Downlink bandwidth limit
• Redundant units

MTL

Blue arrows TC/SCI/HK Green arrows TC/HK Red
lines power Black analog lines
3
DPU OBSW Status (1)

• Last Version 7.65 delivered on 25th October
• 73 Requirements in last URD (Version 2.5)
• 88 implemented
• 5 missing specifications
• 4 no longer applicable
• 3 obsolete
• 34 OBCP available to activate subsystems, to
  enter specific observing/operative modes
  (incl. SAFE), to execute measurements, to
  calibrate the instrument, stand-alone test

4
DPU OBSW Status (2)

• Open Issues
• (Major) On time scale of 36/48 hours, a 1553
  memory corruption occurs (SPR-0230) NCR raised
  and delivered to CGS on November 19th
• Loading of OBCP implemented but not tested
• AF not defined this may have impact on OBSW
• PS-ICD V4 compatible apart from req. 1020-A1 on
  bit alignment are (necessarily) violated in HK
  packets
• Burst mode successfully tested with CDMS
  simulator provided by RAL communications almost
  stopped with CDMU provided by SSBV already at
  nominal HK rate (1 packet/2 seconds). No reason
  identified yet

5
DPU OBSW Status (3)

• As part of the new contract ASI-CGS, IFSI
  provides the OBSW as subcontractor of CGS
• Version delivered to CGS is 7.63 (minor bugs wrt
  version 7.65, irrelevant for what the SW is aimed
  to, i.e. test tool for CGS HW)
• Version 7.63, Version 1 for CGS, is going to
  pass the whole SW verification and validation
  phase. The 1st phase (test at IFSI with AVM1) has
  been done on 16/17 December on 20/21/22 December
  test repetition at CGS premises with IFSI AVM1
  first, and then with new AVM2, both tests were
  successful, only a minor SW update for the DPU
  reset was required to work on both models AVM 1
  and AVM2.
• Upon acceptance Version 1 will be easily
  upgraded to Version 7.65

6
DPU OBSW CAPTEC Report

• Possible problems of interference between tasks
  when accessing global or static variables. These
  conditions have been isolated and solved in
  almost all cases. Minor problems will be
  corrected in future releases.
• Documents missing parts have been inserted
• SW requirements matrix in SSD
• How to build a new image in SUM
• Improvement in documentation expected with new
  personnel

7
DPU OBSW Documents

• URD --gt Issue 2.5, 1 December 2004
• SSD --gt Issue 2.2, 1 December 2004
• SVVP --gt Issue 3.2, 1 December 2004
• OBS Test Report --gt New issue after test
  activities with CGS
• SUM --gt Issue 1.7, 15 September 2004 (1.8 in
  prep. for CGS)
• They follow guidelines given in BSSC(96)2

Modifications of SW Version 1 will proceed
formally through CGS (via RID, SPR, NCR), to
evaluate the impact on the documents and on the
code. For Version 2 CGS only asks to be informed
of changes in documents and to have the new
versions. Delivery of SW Version 2 goes directly
to Consortia.
8
DPU OBSW Next developments and maintenance

• Activities detailed in DPU/ICU OBS Version 2
  Development Plan - CNR-IFSI-2004-PL001
• Mainly
• Version 1 support to CGS activities (eg
  integration with next models) consolidation
  activities
• Version 2 design and development activities
  toward FM

Activities for version 1 and 2 will be covered by
different contracts with ASI and CGS IFSI is
looking for two SW engineers to help in all these
activities, from SW coding to documentation.
9
DPU OBSW Boot and Application SW

• When DPU is switched on FPGA copies boot SW from
  PROM (EPROM in AVM) to 21020 Program Memory
• Boot SW checks PM, DM and EEPROM. If all the
  checks are OK, an event TM(5,2) is reported
• If the command FORCE BOOT is sent, the
  application SW is copied from EEPROM to PM and
  started
• Alternatively, a new image can be uploaded via
  service TM(6,2) Implementation of this service in
  the boot SW is not fully PS-ICD compliant.
• Version 7.63 (and also 7.65) requires 1368 TC.
  If all TC are correctly received (no event
  TM(5,4) is reported), after the command LOAD TC
  AND BOOT is sent, the application SW is copied
  from DM into PM, and started

10
DPU OBSW Default Status of Application SW (1)

• 1553 interface nominal mode burst mode only
  if commanded
• 1355 interface SMCS332 initialized, links not
  started
• HK list non prime (1 packet of 382 bytes /2
  seconds) additional HK packet (1 packet
  equivalent to non prime HK every 10 seconds)
• OBCP 34 available, ready to be started
• AF 2 available, one for BOL (even if not used)
  and one for test purposes. By default AF are
  disabled (enabling each AF is supposed to be part
  of the transition from one operative/observing
  mode to another one)

11
DPU OBSW Default Status of Application SW (2)

• Available TM packets (not considering events)
  25 (19 are enabled) science transmission
  disabled. Each SPU array can be enabled
  separately. TM (1,1) and TM(1,2) can not be
  disabled (but TM(1,1) is generated only if a
  specific bit in the TC packet header is set).
  Also essential HK packet can not be disabled
• Events defined 27 --gt 24 are TM(5,1), 3 are
  TM(5,2), 0 TM(5,4).
• TM(5,2) are request to switch off BOL-C
  request to set PACS in SAFE mode message to
  satellite PACS ready to be switched off. Each
  event can be disabled one by one.

12
DPU OBSW User Manual
Main purpose how to send commands to DPU,
meaning of parameters (for DPU commands),
understanding TM packets (TC verification, HK,
events, science ...) - How to build and load a
new image - Content of HK packets - List of OBCP,
functions and DMC sequences. Usage of special
OBCP (starting 1355 links, writing image in
EEPROM, starting application SW in
subsystems) Structured following PS-ICD if
service (x,y) is used, operational instructions
are found in Section 4.x.y while a more technical
description is given in Section 5.x.y
13
Summary Status of SPU HLSW

• SW actual version 11.1 dated of 23-Jul-2004.
• SW configuration
• The CVS repository at Leuven has all SW versions,
  tools and release notes.
• SW problems are reported through the SPR system.
• All SW documents are at PACS Central File at
  Leuven.
• Documentation
• User Manual issue 11.1 dated of 23-Jul-2004.
• SW Specifications issue 4.3 dated of 30-Mar-2004.
• Release Note issue 11.1 dated of 23-Jul-2004.
• User Requirements issue 3.1 dated of 29-Mar-2004.
• Others ICDs, Test Plan and Test Reports (see
  CIDL).
• CAPTEC Review on 05-06 April 2004 in Vienna

14
Detailed Status of SPU HLSW Version 11.1 (1)

• The software has been tested on the AVM SPU and
  resides in its EEPROM Boot SW HLSW interfaces
  by command
• Command/response, HK and science protocols
  DPU-SPU-DMC are tested and o.k.
• 13 different compression/reduction modes
  available and tested
• SW updates either directly to EEPROM or to RAM
  are possible and tested. One memory load command
  to both SPU processors is replicated inside the
  DPU and then sent to SPU-L and SPU-S as two
  independent commands.
• Test mode for spectroscopy and photometry
  available

15
Detailed Status of SPU HLSW Version 11.1 (2)

• Open issues
• Compression ratio is too small and/or CPU
  workload becomes too high. Closer match to actual
  detector data required.
• Sporadic misalignment of science data header vs.
  science data (not clear if SPU or DMC, however
  most likely SPU)

16
SPU Documentation
17
SPU Captec Review Consequences

• Captec reviewed HLSW version 8.6
• Assessments
• SW code maps to the architecture
• Configuration management procedure are working
• CQM and FM ILT dates are compatible with ESA
  needs
• Requirement, design and coding are 100 complete.

• No planning for maintenance
• The documentation (major open area) has been
  improved for HLSW 11.1
• Missing CIDL has been provided (issue 1.0 on Nov.
  19th,04)
• Major recommendations
• SW code commenting should be improved
• Compression needs to be checked against latest
  'noisy' detector data

18
SPU User Manual Usage

• General overview
• Procedure for software installation and update
• Running confidence check for proper software
  installation
• List of software modules. Software input and
  output specifications
• Software procedure to handle 1355 links and how
  the SW operates when the connection is lost
• How to command the SPU SW. Detailed description
  of all commands and required parameters
• Summary of packet structure between DMC-SPU and
  DPU and SPU.
• HK list with default parameters
• Simulated data description
• Software memory map

19
DMC Software status

• Version 5.023
• in EEPROM on DMC EM
• In KUL CVS repository
• Full acceptance test passed with version 5.016
• Delta acceptance test passed with version 5.020
• Modifications since 5.020
• Changed default mechanisms controller parameters
• Complete rebuild

20
DMC Software status open issues

• Open SPRs
• 161 Non nominal behaviour of DMC_FW_GRATHALL_AB
  not a software problem
• 250 Swoff spectro array should never be
  rejected accepted for implementation in future
  version
• Others
• Grating controller error detection still need
  some improvements
• Some FPGA bug correction still need to be removed
  when the final version of the FPGA will be
  available

21
DMC Software status autonomy concept

• No autonomy in DMC OBS except for
• To protect grating from bad operation, the
  controller can be disabled by DMC OBS when some
  errors are detected.

22
DMC Software status SUSW ASW interaction

• SUSW is used to copy from EEPROM to RAM or to
  upload new version of ASW in RAM (the writing in
  EEPROM is done in the ASW itself)
• SUSW does not have to know anything about ASW gt
  no SUSW update required. Everything is done via
  commanding.

23
Software status default settings in DMC OBS

• All writeable parameters have default parameters.
• The mechanisms controller defaults values are for
  room T operations
• All functionalities are available without
  overwriting any of the default values (except for
  the grating direction that must be inverted for
  grating QM)
• Simulated science test modes available

24
Documentation status

• URD v2.2 (01/10/2003)
• SSD v1.0 (03/10/2003)
• SUM v3.3 (06/12/2004)
• Test Plan v1.4 (02/12/2004)

25
CAPTEC review follow-up

• 2 bugs detected in HK generation
• URD-SSD update needed
• SUM updated with additional information

26
User Manual overview

• Content
• Procedure to start/upload the software
• Description of commands
• How to use sections for grating, chopper,
• Description of telemetry

27
TM/TC Status of BOLC

• No OBSW within BOLC, however it controls the
  photometer FPU and has its command and sync.
  interface via DMC.
• Commanding and HK defined in
• BOLC to DMC Electrical ICD, Sap-PACS-CCa-0046-01
• Operations of the entire photometer are described
  in
• PACS Photometer FPU User manual,
  Sap-PACS-MS-0247-04
• Testmode of science data available and tested

28
TM/TC Status of BOLC

• Warm and cold functional tests, cooler recycling,
  setup and operation of the bolometer detectors
  has been successfully tested following the User
  Manual.
• Open Issues
• Unexpected loss of the spacecraft powered 28 V
  line may cause irreversible damage to the
  bolometers
• Wrong and/or incomplete bias settings to the
  bolometers may cause irreversible damage to the
  bolometers. Although limit monitoring
  instructions are being provided within the user
  manual, a clear strategy to monitor and
  autonomously recover from failed bias commands
  does not exist yet.

29
Qualification Status of PACS OBSW (1)
SPU
DMC
BOLC
DPU
DMC

SPU
PACS WE mounted on SVM Simulator panel
30
Qualification Status of PACS OBSW (2)

• All latest PACS OBSW packages reside in KUL CVS
  with SPR system in place.
• DPU, mostly successful testing during AVM ILT
• 2 Problems 1553 memory corruption and burst
  mode
• SPU, mostly successful testing during AVM ILT
• 2 Problems Science data compression ratio (
  CPU workload), potential data misalignment in
  spectroscopy (SPU or DMC ?)
• DMC mostly successful testing during AVM ILT
• No major open problem at present, however the
  present software has built in corrections for
  FPGA misbehaviour which need to be removed in
  future versions.
• BOLC, successful testing during AVM ILT
• 2 Problems (Unexpected switch-off), procedural
  handling in case of failed detector bias setting
  (missing specifications).

31
Qualification Status of PACS OBSW (3)

• 19 out of the available 34 OBCPs have been tested
  during the ILT. (All OBCPs which are planned for
  use in actual AOTs have been verified.)
• Other OBCPs are either obsolete (6-7) and/or
  require updates according to the results of the
  ILT.
• The concept of OBCPs (service 18) in general has
  been verified.

32
The PACS User Manual

• All information how to use and operate PACS is at
  present contained in 4 separate user manuals
  according to the individual WE sub-systems and a
  number of other documents.

33
The PACS User Manual

• The way to go for a User Manual according to the
  OIRD (mostly to be collected from other already
  available documents)
• Introductory, flow and descriptive information
• Instrument interfaces and performance (heat
  diss., power cons. etc)
• Instrument Operations Modes (details TBW)
• Instrument failures, fault management and
  redundancy (TBW)
• OBSW ? pointer to sub-system SUMs, OBSM facility
  ?
• Telemetry ? pointer to DPU SUM, sub-system SUM
  and MIB
• Telecommands ? pointer to DPU SUM, sub-system SUM
  and MIB
• Instrument Operations Procedures (Comm., Nom.,
  Cont.)
• (Partly available as TOPE procedures, to be
  updated and TBW)
• Instrument Budgets (power, data, mass, error and
  alignment, timing)
• Instrument Science Data Definition
