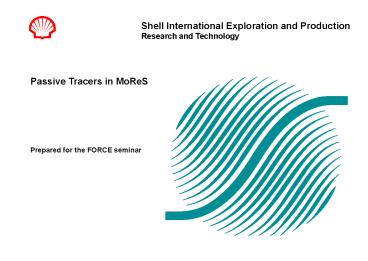

Passive Tracers in MoReS
Prepared for the FORCE seminar

2
Improved description of gas mixing

• Objective
• develop reservoir simulation models to describe
  gas-gas mixing
• predict quality of produced gas under UGS
  conditions
• Mixing at different length scales
• microscopic (core, flow path tortuosity,
  molecular diffusion)
• macroscopic (geological unit, permeability
  heterogeneity)
• megascopic (layer-induced mixing)
• Computational effort
• up-scaling to field model (coupling of different
  length scales)
• reduction of numerical dispersion

3
Grijpskerk UGS background
4
Gas Mixing Mechanisms
Pore Level
Reservoir scale
Within Sand Interval
5
Numerical dispersion
Indigeneous gas
Timestep
Injected gas
1 2 3

6
Tracer distribution around GRK-11High-Res MoReS
7
Tracer distribution around GRK-11 (high perm.
layer)Standard MoReS
8
Tracer distribution around GRK-11 (low perm.
layer)Standard MoReS
9
Separate (explicit) tracer solver
10
Tracer distribution around GRK-11 (high perm.
layer)High-Res MoReS
11
Tracer distribution around GRK-11 (low perm.
layer)High-Res MoReS
12
Tracer distribution around GRK-11 (high perm.
layer)
Hi-Res MoReS
Conventional MoReS
13
Single Well Tracer Test - Match (1)

• Excellent match early response
• tail mis-match due to ignoring dispersion within
  grid blocks

14
Single Well Tracer Test - Match (2)

• Excellent match early response
• Improved match tail by re-introducing a physical
  diffusion and dispersion model

15
Phase 2 Tracer Test - Design

• Gas Displacement

16
Phase 2 Tracer Test - Preliminary results
