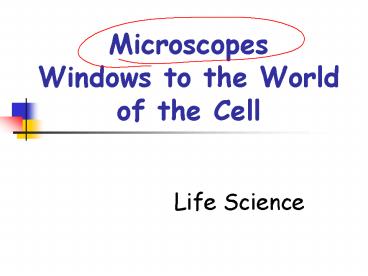

MicroscopesWindows to the World of the Cell

• Life Science

2
Microscopes

• An instrument used observe minute objects
• Enlarges images of small objects

3
History

• In the 1660s Leeuwenhoek made a simple microscope
  and started to observe live specimens
• Leeuwenhoeks microscope could magnify images up
  to 200x

4
Types of Microscopes

• Light uses light and lenses to magnify image
• Electron uses magnets and electrons to magnify

5
(No Transcript)
6
Compound Microscope

• Can magnify images up to 1000x
• Made up of
• Mechanical System
• Optical System
• Light System

7
Mechanical System

• Holds specimen
• Allows one to focus
• Parts
• Stage/clips
• Focusing knobs
• Body of the microscope

8
Optical System

• Made of two lenses
• Objective Lens
• Eyepiece
• Both together produce the magnified image

9
Light System

• Light source (mirror) illuminates object
• Diaphragm allows to control amount of light

10
Parts of a Microscope
(Eyepiece)
11
Magnification

• The ability to make objects look larger

12
Magnification

• To calculate
• Power of objective lens x Power of Eyepiece
• Do these calculations
• Eyepiece 10x
• Objective 10x 40x 100x

13
Micrograph

• Photograph taken through a microscope

14
Electron Microscope
15
Electron Microscope

• Uses magnets and electrons to magnify images
• Magnifies 1000x better than a light microscope
• Specimen cannot be living

16
Types of Electron Microscopes

• Transmission Electron Microscope internal
  structures
• Scanning Electron Microscope surface structures
