Plasmids, Viruses

1

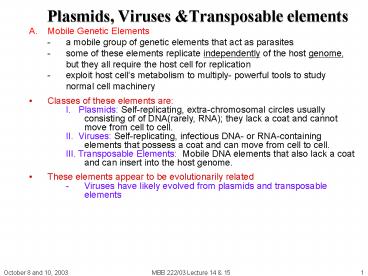

Plasmids, Viruses Transposable elements

• Mobile Genetic Elements
• a mobile group of genetic elements that act as
  parasites
• some of these elements replicate independently of
  the host genome, but they all require the host
  cell for replication
• exploit host cells metabolism to multiply-
  powerful tools to study normal cell machinery
• Classes of these elements are
• I. Plasmids Self-replicating,
  extra-chromosomal circles usually consisting of
  of DNA(rarely, RNA) they lack a coat and cannot
  move from cell to cell.
• II. Viruses Self-replicating, infectious DNA-
  or RNA-containing elements that possess a coat
  and can move from cell to cell.
• III. Transposable Elements Mobile DNA elements
  that also lack a coat and can insert into the
  host genome.
• These elements appear to be evolutionarily
  related
• Viruses have likely evolved from plasmids and
  transposable elements

2
I. Plasmids

• Properties of Plasmids
• Small, self-replicating, circular DNA (rarely,
  RNA) molecules some are very large
• - commonly found in bacteria
• - typically 2 ? 50 copies/cell (i.e., low
  and high copy)
• b. Often encode functions that are dispensable
  to the host, but may be of selective advantage
  e.g. antibiotic resistance
• c. Some can participate in plasmid-mediated
  conjugation
• - transfer of a plasmid from one cell to another
• d. Sometimes they can undergo recombination
  with each other or with host cell chromosome
• e. Replication similar to hosts chromosome
  replication they have one origin of replication
  specific sequence that allows initiation of
  replication

3

• Cell Characteristics Can Be Conferred by Plasmid
  Genes
• Drug (antibiotic) Resistance
• - gene for an enzyme that can inactivate a drug
• - gene for a variant protein which is unaffected
  by a drug (i.e. can substitute for host
  equivalent)
• Virulence
• - Plasmid genes that contribute to, or are
  essential for, the virulence of a pathogenic host
  cell
• e.g., encode toxins anthrax - Bacillus
  anthracis toxin
• tetanus - Clostridium tetani toxin
• Metabolic Activities
• - Plasmid genes that affect metabolic pathways
• e.g., Nitrogen Fixation (N2 ? NH3) by Klebsiella
• e.g., degradation of octane by Pseudomonas

4

• Chromosome Transfer
• - integration with host chromosome
• - conjugation plasmid chromosomal DNA
  transferred from one cell to another
• 3. Relationship of Plasmids to Viruses
• Major Difference
• - viral DNA encodes virions with coats ?
  liberated ? pass to other cells via the medium
• Many similarities suggest a close evolutionary
  relationship between plasmids bacteriophages
• Note that plasmids are extremely useful vehicles
  for recombinant DNA technology (more later).

5
II. Viruses

• 1. Characteristics
• Often disease-causing agents
• Can be extremely small (e.g. less than 100 nm in
  diam..
• Genetic elements enclosed by a coat that allows
  them to move from cell to cell
• Virus multiplication is often lethal to the cell-
  lysis
• Viruses vary in several features
• Type of nucleic acid and structure of chromosome
• Structure of coat
• Mode of entry into or exit from the host cell
• Mechanism of replication
• Bacterial viruses (bacteriophages) have
  prokaryotic-like molecular biology
• Plant and animal viruses have eukaryotic-like
  molecular biology (e.g. introns were first
  discovered in the adenovirus or human
  cold-causing virus)

6

• 2. Bacteriophages or bacterial viruses
• - Many different families. T2, T4 T7 are
• typical bacteriophages
• - Made up of a complex of nucleic acids and
  protein
• Only the nucleic acid enters the host cell
• Genome encodes proteins needed for packaging of
  new virus and release from host cell
• Recall that the T2 bacteriophage was used in
  experiments that established that DNA is the
  genetic material

7
T4 Bacteriophage
Head
Collar
DNA
Sheath
Figure 24.22
Tail Fiber
8
Lytic viral replication cycle
9

• 3. Animal Viruses there are many types of
  eukaryotic viruses some are of considerable
  medical importance
• an example of an animal virus family
• Herpes Viruses DNA viruses
• Herpes Simplex Type 1 ? cold sores
• Type II ? genital lesions
• Varicella Zoster ? chicken pox shingles
• Epstein-Barr ?infectious mononucleosis




10
4. Genome Types

• RNA Genomes (single and double-stranded genomes)
• ssRNAgenomes
• - e.g., Poliovirus, Rabies virus, HIV retrovirus
• dsRNA
• - e.g., Reovirus
• This virus genome consists of 10-12 linear
  pieces of dsRNA
• b. DNA Genomes ( also single and
  double-stranded genomes)
• i) ssDNA genomes
• - linear ? paroviruses
• - circular ? M13 phage

11

• dsDNA genomes
• - linear - T4 phage
• - Herpes viruses
• - circular - Simian virus 40 (SV40)
• - sealed ends/closed - Poxvirus
• - terminal protein - Adenovirus

12
5. Viral genomes encode

• genes for their own replication (in the case of
  RNA retroviruses, gene for reverse
  transcriptase-copies RNA into DNA)
• genes for taking over the hosts metabolism
  and/or integrating into the hosts genome (in the
  case of retroviruses, integration gene codes for
  integrase), where it is then replicated by the
  host machinery
• genes for capsid proteins/viral coat proteins

13
6. Virus Replication

• Viruses encode some or all proteins required to
  replicate the viral genome
• As mentioned, T4 has 30 genes (out of 300) that
  encode products that lead to rapid replication of
  the phage DNA.
• clever strategies
• T4 uses 5-OHMeC (not cytosine) in its DNA
• can selectively degrade just the E. coli genome
  through T4-encoded nucleases (these will not
  attack the marked viral DNA).
• smaller (simpler) DNA viruses must use the hosts
  replication machinery but have special
  replication origins
• encode proteins which selectively promote
  replication at their own origins by recognizing
  specific DNA sequences in viral genome that act
  as origins
• Virus must overcome cellular mechanisms that
  limit replication

14
6. Virus Replication (contd)

• RNA viruses - unusual situation
• Must polymerize nucleotides onto an RNA template
• Single Stranded RNA/DNA viruses replicate their
  genomes by making complementary strands
• Minus (-) Strand Viruses
• The infecting single strand is complementary to
  the protein-encoding strand
• Thus before viral proteins can be made, the
  nucleic acid coding strand () must be synthesized

15
Complementary strands

• Note that (-) strand RNA virus particles always
  contain
• (-) strand RNA and an RNA-dependent RNA
  polymerase (replicase) packaged into particle
• this is used once the virus infects a cell to
  begin synthesizing new genomes
• without the replicase the (-) strand RNA genome
  cannot be replicated.
• e.g., influenza virus
• But, in the case of () strand viruses
• These viruses already carry the coding strand ie.
• the viral () strand can act directly as the
  mRNA and the replicase is synthesized from it
  right after infection
• e.g., poliovirus

16
Other Specific Features of Viral Replication

• Generally, viral RNA polymerases and reverse
  transcriptases are simple proteins which do not
  have proofreading functions
• is proof reading needed in this case?
• error rate 1 in 10,000 (similar to rate seen in
  DNA transcription)
• Not a big problem for such a small genome
• Viral RNA Synthesis
• Begins at the 3-end of the RNA
  template,synthesis of 5 end of new RNA
  progressing in 5-3 direction
• Viral DNA Synthesis
• Begins at a replication origin
• Viral proteins bind at origin and recruit host
  replication enzymes

17
Replication of DNA viruses

• Many different replication schemes based on
  genome form
• DNA polymerase requires a primer
• How can a linear viral DNAs be replicated? There
  is a problem for one of the strands, because the
  primer must be removed. Diverse replication
  schemes allow these molecules to be replicated
• A diverse range of replication mechanisms are
  also observed with the other viral types e.g.
  circular, sealed ends/closed, terminal proteins
  (see slide11)

18
Example Linear single stranded genomes With
Terminal Repeats
Terminal repeats can form hairpin
structures 5----CTCGTAAATCAGATTTA-OH-3 5----CTC
GTAAATC 3-OH-ATTTAG
A
- the linear DNA genome can be replicated by
extending the hairpin, restricting the coding
strand, and replicating it until the end
5
extend (polymerase)
?
5
cut (endonuclease)
5
19
Integration into host genome

• some viruses upon infection go into a latent
  stage
• Do not produce large numbers of progeny
• Genomes get integrated into host genome- provirus
• Bacteriophages that can integrate are called
  temperate bacteriophages best example Lambda-
  infects E. coli.
• free ends of genome join and circularized genome
  integrates via site specific recombination
• Bacterium multiplies normally until it is
  stressed (e.g. can happen during the SOS response
  due to UV damage)
• This induces the provirus to leave host and begin
  lytic cycle- saves itself from the dying
  bacterium

20
Viruses and cancer

• DNA viruses that integrate into cells or exist as
  plasmids
• Sometimes result in genetic changes that cause
  the cell to proliferate in an uncontrolled way
• Transform normal cells into cancer cells - called
  DNA tumour viruses
• SV40 and polyoma viruses affect cell cycle
  regulation by making viral proteins that can
  over-ride normal growth control mechanisms of
  host cell.
• RNA tumour viruses
• Infection can lead to permanent genetic change
  in host genome that makes it cancerous
• They are retroviruses
• That reverse part of normal process of
  information flow, since RNA? DNA
• That use the reverse transcriptase enzyme
• DNA polymerase that uses either RNA or DNA as its
  template

21
Retroviruses RNA viruses that integrate DNA
copies of their genome into the hosts genome -
how do you make DNA from RNA?
Simplified View
RNA
Reverse Transcriptase
DNA
RNA
DNA
Virus Particle Assembly
DNA
Integrase
integrated DNA
Transcription
Translation
host genome
22
Retrovirus Replication
Reverse Transcriptase is a DNA Polymerase so it
needs a primer
Transformation of cells occurs because viral DNA
in the genome leads to production of new proteins
that alter host cell proliferation ?
oncogenes RNA tumour viruses (retroviruses)-
encode altered host proteins (often replace viral
genome sequences) that can cause cancer. DNA
tumour viruses- encode viral proteins that can
cause cancer
-transcription -translation of viral capsid
proteins and RT -assembly of new virus
23
Structure of Eukaryotic Viruses
-Nucleic Acid (RNA or DNA) - Capsid ? Viral
proteins is a container for RNA or DNA
(sometimes associated with an envelope) -
Envelope ? contains Lipid Bilayer (not in present
bacteriophages) - Viral Proteins Host membrane
lipids - Envelope obtained by budding from the
plasma membrane (this can allow viruses to exit
host cell without destroying it).
24
Acquisition of a Viral Envelope
25
Basic Viral Life Cycle
a. Enters Host Cell - binds to host cell membrane
protein e.g., HIV ? CD4 of T-Cells e.g., ? phage
? maltose receptor - fuses with host cell
membrane (HIV) - or injects genome (T4)
b. Replicates Genome
26

• Produces Viral Proteins
• Whereas transcription of DNA ? RNA is
  accomplished by host and/or viral machinery,
• translation of proteins is accomplished entirely
  by the hosts cell machinery
• Exits Host Cell
• Cell Lysis (T4)
• Budding

27
Retrovirus Life Cycle
28
HIV is a retrovirus

• Acquired immune deficiency syndrome (AIDS)
• Disease associated with severe defect in immune
  system due to infection of T lymphocytes (vitally
  important to defending against infections)
• Researchers isolated a retrovirus from T
  lymphocytes of infected individuals
• Virus enters cells by binding cell surface
  receptor, CD4
• eventually kills host cell (unlike most
  retroviruses)
• Stays integrated and latent for long periods-
  makes it difficult to treat with antiviral drugs
• Current research is aimed at understanding its
  life cycle to develop drugs to inhibit its
  enzymes, especially Reverse Transcriptase (RT)

29
Anti-Viral Drug Therapyan Example
HIV-1 DNA replication is a target for the
anti-viral drug acyclovir (a nucleoside
analogue)
O
AC-MP Acyclovir monophosphate (trapped in
infected cells)
H
N
ACYCLOVIR
N
G
Viral thymidine kinase ? adds a phosphate group
N
H2N
N
cellular enzymes
HO
O

• AC-TP
• Acyclovir Triphosphate
• Good substrate for DNA polymerase function of
  viral RT thus, it will interfere with viral
  replication.
• Not a good substrate for host DNA polymerase

guanosine has this
OH

• soluble
• relatively non-toxic
• can penetrate the cell membrane

30
Uninfected Cell
Ac-MP
ACYCLOVIR
ACYCLOVIR
Infected Cell
Ac-MP
Ac-TP
ACYCLOVIR
Viral DNA
Host DNA
31
III. Transposable elements

• mobile DNA particles that cannot leave the host
  cell
• Range in size few hundred to 104 bps
• Present in multiple copies per cell
• Often encode transposase
• Catalyzes transposition from one site to another
  random site in the genome
• Retro-transposons
• Use a mechanism that is identical to retroviral
  life cycle
• (RNA copy of element?RT to make ds copy
  ?integrase to insert randomly into genome)
• But- does not encode a protein coat, can only
  move within a host cell and to progeny cells of
  host

32
Direct movement of elements
33
Origins of viruses

• retroviruses most likely arose from
  retrotransposons
• Plasmids were probably precursor to viruses
• Can replicate indefinitely outside of host
  chromosome
• Occur in both RNA and DNA forms
• Contain special origins of replication
• first virus probably arose when an RNA plasmid
  acquired a host gene encoding a protein that
  could be used to make a capsid
• Viral genomes have to be small- limits number of
  genes that can be encoded
• Viruses certainly have played an important role
  in evolution because of their ability to pick up
  gene sequences and carry them to different cells
  or organisms
