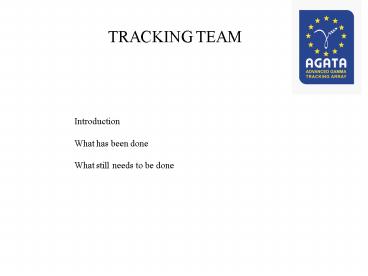

TRACKING TEAM
Introduction What has been done What still
needs to be done
2
Tracking Team
started at the Global Level Processing meeting
(15-16/05/2003 in Legnaro) Web site
http//www-csnsm.in2p3.fr/groupes/strucnuc/trackte
am.html
Members France Strasbourg, Orsay
Italy Legnaro, Padova, Milano
Poland Krakow Roumania Bucharest
Sweden Stockholm, Uppsala UK
York Team leader A. Lopez-Martens
3
Aim of tracking

• Read for each event the list of deposited
  energies and positions of all the interactions
  points in AGATA
• e1, x1, y1,,z1
• e2, x2, y2,z2
• ..
• en, xn, yn,zn
• Disentangle the interaction points i.e
  reconstruct individual photon trajectories and
  write out photon energies, incident and
  scattering directions

Polarization measurement
E1, (?,?)inc,1,(?,?)sc,1 E2, (?,?)inc,2,(?,?)sc,2
Ei, (?,?)inc,i,(?,?)sc,i
Optimization ?ph x P/T
Doppler correction
4
Physical Processes in Ge for photons
Compton
Photon range ?(E) MA/(Nav.?) . 1/??E
?(10 keV) 55 ?m ?(100 keV) 0.3 cm
?(200 keV) 1.1 cm
?(500 keV) 2.3 cm ?(1 MeV) 3.3 cm
5
Property of Compton Scattering
source
1
3
e1
E?0
0
?1
e3
2
E?2
E?1
?2
e2
assuming that the e- is at rest, from
conservation of energy momentum
incident energy at i
cos(?i) 1 mec2 (1/E?i 1/E?(i-1))
scattered energy at i E?(i-1)-ei
6
Some complications
!
Interaction position ? position of energy
deposition
?inc
?sc
?ion/?Brem Ee- (MeV) /21.8
e-
?
!
Electron momentum profile gt change in
scattering direction
!
Rayleigh scattering gt change in incident
direction
!
Interaction of neutrons or other particles gt
adds totally uncorrelated interaction points
7
Additional Complications
From PSA uncertainty in position of interaction
x
x
x
x
position resolution
From preamp energy threshold
x
x
x
From preprocessing energy resolution
x
True interactions What comes out of PSA
8
Events of interest total E absorption
Series of Compton scatters photoelectric
interaction (which might be so close that PSA
thinks its 1 single interaction point !)
Single photoelectric interaction
Pair production Compton interactions
Photoelectric interactions
9
Existing Algorithms or Algorithms currently being
developed

• Clusterisation forward tracking
• G. Schmid et al., NIM A 430 (1999) 69
• D. Bazzacco, mgt code
• Lopez-Martens et al., NIM A 533 (2004) 454
• Back-tracking algorithm
• J. Van der Marel and B. Cederwall, NIMA 437
  (1999) 538
• L. Milechina and B. Cederwall, NIMA 508 (2003)
  394
• A. Lopez-Martens et al., NIM A 533 (2004) 454
• Clusterisation Probabilistic method
• I. Piqueras et al., NIMA 516 (2004) 122
• 1st hit identification with Fuzzy Logic and/or
  fuzzy cluster
• creation
• C. Rossi Alvarez
• D. Bucurescu (see corresponding talk)

10
Whats been decided/done
Systematically use secondary particle tracking
for simulations (default option in the Agata
code) 5mm packing distance Tracked gammas in
the full 180/120/ configurations with all dead
materials, capsules, cryostats, and compared
their performance (http//agata.pd.infn.it/docume
nts/simulations/comparison.html) Compared
different algorithms with same simulated data (A.
Lopez-Martens et al., NIM A 533 (2004) 454)
Started combining the good features of different
algorithms Started tracking neutrons (see J.
Ljungvalls talk) Started checking background
suppression capacities of algorithms (see E.
Farneas talk)
11
What needs to be done

• Pair production event tracking (anything new ?)
• Single interaction points (anything better than
  what we have now ?)
• Improve background suppression of algorithms
• Take into account ancillary information (?)
• Use  real  position uncertainties within a
  detector
• Compute  real  effective distances in Ge (not
  assuming a 4? Ge shell).now done ?
• Produce data (what format ?) for data analysis
• Optimize tracking codes for speed
• Online implementation

12
