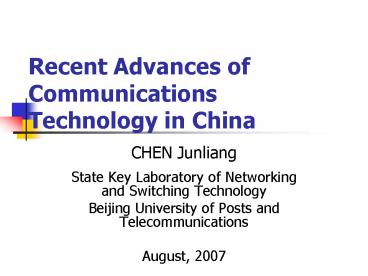

Recent Advances of Communications Technology in
China

• CHEN Junliang
• State Key Laboratory of Networking and Switching
  Technology
• Beijing University of Posts and
  Telecommunications
• August, 2007

2
Main Contents

• Current Situation, Prospect and Challenge of
  Communications Networks
• Optical Transmission system
• 3G and 4G Mobile Communication Systems
• Next Generation Internet
• Next Generation Networks

3
Current Situation,Prospect and Challenge of
CommunicationsNetworks in China
4
(No Transcript)
5
(No Transcript)
6
(No Transcript)
7
(No Transcript)
8
(No Transcript)
9
(No Transcript)
10
(No Transcript)
11
(No Transcript)
12
(No Transcript)
13
Optical Transmission System
14
Outline

• Length of optical cable
• Development of optical communication technology
• National 863 / O-TIME Program of China
• National 863 / 3T-Net Program of China
• Introduction to typical demonstrations
• Future prospect

15
(No Transcript)
16
Development of optical communication technology
Direction 1Ultra high-speed, large capacity,
long-distance transport platform Direction 2
Intelligent, multiple-service and converged
carrier platform

• 4,000,000Km optical fiber laying in China
• 16010Gb/s?8040Gb/s DWDM system applied in
  optical network
• ULH/WDM ultra long-haul optical transmission
  device and system already commercialized
• ASON, MSTP deployed in MAN (Metropolitan Area
  Network)
• EPON applied in more than 20 cities,
  demonstration of FTTH already applied
• Multi-service driven optical access and switching
  has been the focus of research and popularization

17
National 863/O-TIME Program
O-TIME(Optical Technology for Internet with
Multi-wavelength Environment)plan is the national
Tenth five years' project 863 programs
research plan for optical communication
technology --Optical TIME program. (2001-2005)
Typical characteristics of O-TIME program Aiming
at the trends and needs of broadband information
network and optical communication technology,
research on optical wavelength technology
supporting Internet multi-wavelength
transmission, taking breakthrough in the four key
high technologies to provide Internet with
high-speed, broadband, flexible, efficient and
intelligent physical transport platform Ultra
long-haul optical transmission
Broadband optical access Node optical switching
Intelligent optical interconnecting network
18
National 863/O-TIME program roadmap
Eleventh five years' project
2001
2002
2003
2004
2005
19
National 863/3T-Net program
High performance broadband information
networks(3T-Net)

• National 863 program high performance
  information network(3T-Net)
• 3T-Net Tb/s Transport, Tb/s Switching, Tb/s
  Routing
• Duration2002---2006
• Overall objective
• Promote endemic government and network
  operation company to construct next-generation,
  operative, large-scale concurrent multimedia
  service and interactive multimedia services to
  support high performance broadband information
  demo network in the Yangtze River Delta, with the
  help of self-developed new network core
  equipments and application support environments
  of Tb/s level routing, switching and
  transmission.
• Specific objectives
• Technical objectiveSelf-develop core node
  equipments of Tb/s level optical transmission
  systems, Tb/s level intelligent optical networks,
  Tb/s level routing equipments and etc., and
  develop related network application support
  environment.
• Network objectiveBuild up a practical WAN high
  performance broadband information network.
• Application objectiveRealize services and
  applications related to large-scale concurrent
  DTV/HDTV broadband stream media, concerned with
  Internet broadband interactive services.

20
National 863/3T-Net program
IPTV Stream media on demand BOD Large capacity
crossover Burst UNI Optical multicast
Yangtze River Delta, China Accomplished in 2006
21
(1)China Advanced Information Optical Network
(CAINONET)
National 863 program Accomplished in
2001 (LocationBeijing)
??SDH? ATM???
22
(2)National natural science foundation of China
network (NSFCNET)
National natural science foundation Accomplished
in 2001 (LocationBeijing)
23
(3)40Gb/s SDH System

• National Tenth five technology
  program,accomplished in 2005.
• Self-develop the first international 40Gb/s SDH
  optical transmission equipment in accordance with
  national standard of ITU-T STM-256 frame
  structure.
• Realize 40Gb/s SDH signal error-free transmission
  over G.652 and G.655 optical fiber.

SourceFiberhome Technology
Dual fiber Self-healing ring
Point to point transport link
24
(4)8040Gb/s DWDM System

• National 863 program project, accomplished in
  2006.
• Develop 8040Gb/s DWDM system equipment, 40Gb/s
  optical transmission adopting NRZ code, realizing
  800Km 80x40Gb/s transmission over the G.652
  optical fiber.
• Overcome key technology problems Forward Error
  Correction (FEC), Dynamic Gain Equilibrium(DGE),
  Optical Transceiver Module, 40G OTU, Transport
  code and modulate/demodulate technology, Precise
  chromatic dispersion management technology.
• Build up 8040Gb/s DWDM ShanghaiHangzhou
  practical project.

Source Fiberhome Technology
25
(5)160X10Gb/s ultra long-haul optical
transmission system

• National 863 program, accomplished in 2005.
• Self-develop optical transmission system of
  1.6Tb/s, relay transmission distance of
  3000km-5000km (G.652?G.655 optical fiber) without
  electricity provision.
• Build up ULH/WDM network demo project in Xinjiang
  area (1000km relay transmission over G.652
  optical fiber without electricity provision).
• Master completely core technologies of ULH/WDM
  system (CL wavelength band), Raman optical fiber
  amplifier, test and application ...
• Two standard recommendations (D.735?D.736) are
  accepted by ITU-T, leading draft qualification of
  ITU-T G.raman.

Source ZTE
26
(6)Large capacity ASON Equipment

• National 863 program, accomplish in 2006.
• Self-develop ASON node devices, supporting
  services of link layer Multicast-ASON and
  Burst-ASON, overcoming ASON large-scale
  hierarchical routing technology.
• Deployed in 863/3T-Net and Telecom networks, also
  applied in Hainan district.
• Multiple recommendations are adopted by ITU-T.

Source Huawei Technology
27
(8)Optical Burst Switching Test-bed
Source BUPT, SJTU and so on.
1? National natural science foundation , National
863 program, Burst service based novel optical
switching technology. 2?First domestic institute
(leading in the world) of successfully building
up Optical Burst Switching (OBS) test-bed,
supporting image, voice, data and grid service
access.
28
Research direction of future optical
communication technology

• Service-driven, flexible and dynamic architecture
  and technology of optical networks
• Deploying mechanism of optical wavelength
  attributes and application technologies in the
  next-generation network
• Intelligent optical switching and optical
  inter-connecting technology
• Autonomic optical networks and condition
  monitoring (Self-awareness, Self-adaptation,
  Self-organization)
• Intelligence, Packet transmission and Extension
  of MPLS protocol(G-MPLS?T-MPLS?Wireless MPLS...)
• Large-scale broadband optical access application
  technology
• Crossover convergence technology (optics and
  wireless, optics and sensoring, optics and
  service, optics and resource, optics and
  computing )

29
3G and 4G Mobile Communication Networks
30
China 3G Mobile Systems

• TD-SCDMA
• LAS-CDMA

31
TD-SCDMA

• TD-SCDMA as the worlds 3rd 3G mobile system was
  officially accepted by the ITU-R in May 2000
• System works in TDD and uplink synchronous mode,
  supporting asymmetric data transmission
• Series of new technologies are adopted in the
  system

32
TD-SCDMA
33
(No Transcript)
34
(No Transcript)
35
LAS-CDMA

• LAS-CDMA Large Area Synchronous CDMA
• The core innovation is the discovery of a group
  of pseudo-random codes called LA/LS codes which
  are capable to decrease the various kinds of
  interferences (Intersymbol interference, multiple
  address interference and adjacent cell
  interference)

36
?????? 1----??CDMA
G Processing Gain

• Autocorrelation function

?
G-1/2
Relative delay

• Crosscorrelation function

G-1/2
?
37
?????? 2----LAS-CDMA
? Autocorrelation function
?
0
? Crosscorrelation function
?
0
?
0
0
?
IFW
IFW Interference free window
38
4G System Development-- FUTURE Project
39

• FuTURE Future Technologies for Universal Radio
  Environment as a part of China High-Tech 863
  program.
• Phase 1 Six universities cooperating with six
  companies developed six transmission schemes for
  B3G mobile.
• Phase 2 Jointly develop wireless network
  experimental system supporting both FDD and TDD
  on a common platform.
• Phase 3 Trial Pre-commercial System will be
  developed.

40
GMC/OFDM FDD SYSTEM

• 100Mb/s peak uplink and downlink high-speed
  transmission rate
• FDMA and TDMA hybrid multiple access
• Iterative receiving technology
• Distributed radio network architecture
• MIMO-GMC technology in uplink
• MIMO-OFDM in downlink
• MIMO adaptive link transmission technology

41
Breakthrough of B3G Theory
B3G TDD Network Architecture

• Flat Radio Access Network
• All-IP based architecture
• Short latency
• Novel Cellular Architecture
• Group Cell
• Slide Handover
• User always in cell center
• Solve smaller cell problem
• Avoid cell edge effect
• Avoid frequent handover
• Enlarge coverage area
• Fully Explore Space Diversity
• Distributed Antenna Array
• Virtual MIMO
• Multi-hop, Relay

42
B3G????????
B3G Field Trial characteristics
43

• ????
• ????IPTV
• ????????
• ????????
• ????????
• ????VoIP??
• ????Web??
• ????FTP????

• Services Demo
• Wireless IPTV
• Wireless Remote Video
• Wireless Video Conference
• Wireless VOD
• Wireless VoIP Phone
• Wireless Web Browse
• Wireless FTP

44

• NEXT GENERATION INTERNET NGI
• Given in the presentation of Prof. MA Yan

45

• NEXT GENERATION NETWORK
• NGN

46
CN2 Network TopologyDesigned and Deployed by
China Telecom
47
(No Transcript)
48
(No Transcript)
49
(No Transcript)
50
