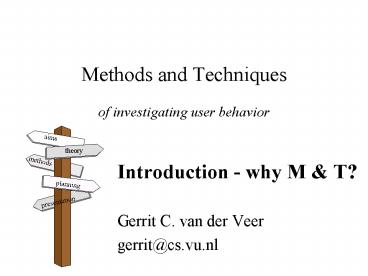

Methods and Techniques of investigating user behavior

1
Methods and Techniquesof investigating user
behavior
aims
theory

• Introduction - why M T?
• Gerrit C. van der Veer
• gerrit_at_cs.vu.nl

methods
planning
presentation
2
Methods and techniques for empirical research

• Goals for this course
• understand why
• understand basic theory
• know basic methods and techniques
• know how to plan your research
• know when to ask for expert consult

3
Goals of empirical research an example
Cultural utterances of Martians - artifacts we
found
??? ??? ?? ??? ? ?How to develop a
science on this - goals in sequence

• description (variables, quantification,
  measuring relations)
• prediction (based on knowledge of
  relations)
• explanation (causal models)
• manipulation (apply control based on known
  causality)

4
Characteristics of scientific knowledge

• unambiguous
• operational definitions for observable phenomena
• measurement techniques
• scientific language concepts and relations (esp.
  unobservable phenomena)
• repeatable studies
• describe procedures, population and samples of
  observations
• reliability (of measurement, observers, raters,
  tests)
• controlled for disturbing phenomena
• design of study / experiment (sequence, balancing
  , control groups)
• sample
• models for measurement of other variables and
  statistical control

5
Research methods

• observation in nature
• case studies (context of use, community of
  practice, ? -?)
• field study and survey
• systematic observation / interview / focus group
• focused on some phenomena
• influence of participant observer
• correlation study
• tests / questionnaires / behavior measurements
• focus on relations between variables
• measures no causality (e.g. Malaria)

6
Research methods
observation in nature field study and
survey correlation study

• experiment
• manipulation of candidate causes
• measuring effects
• controlling possible other causes

7
Data collection

• choice of technique based on
• sensitivity for the phenomena
• reliability and objectivity
• validity
• internal - intended concept
• external - representative for population of
  phenomena, context situation
• practicality (effort, time, availability)

8
Data collection

• types of techniques
• observation of behavior
• registration of .. behavior, physiological data
• think aloud during processes / activities
• pro? . con?
• video with retrospective protocols
• interview
• free .. structured
• objective test
• questionnaires
• written interview .. subjective rating
  scales
• unobtrusive measurements (e.g. logs)

9
Scoring

• translation of data in units that allow modeling
  and analysis numbers or defined categories
• needs interpretation prescriptions that are part
  of the operational definition
• relative (frequency per ) / absolute
  (reaction time)
• duration time (sometimes relative to ..)
• intensity / strength
• category of behavior / option chosen (e.g.
  marital status)
• complex phenomena
• patterns, spectrum, half-life

10
Scales of measurement

• Have been discussed in the Bachelor course
  Toegepaste Statistiek
• ratio scale 1-dimensional, absolute (comparison
  with standard unit), zero0, cardinal scale

  e.g. time on 100 m.
• interval scale no absolute zero
  e.g.
  intelligence coefficient
• ordinal scale comparison between observed data
  (possible tie) so no standard unit

  e.g. results sports competition
• nominal scale verbal labels or number labels
  1single 2married
  3divorced 4 widowed 5living together

11
Validity of measures

• To what extent does one observe and measure what
  is aimed at.
• predictive validity - predictive power for other
  behavior (school exam score for job selection)
• content validity - representative for the
  intended domain (items in an intelligence test)
• concurrent validity - consistency with other
  types of measures for the same concept (self
  report v.s. teacher rating)
• concept / construct validity - (multiple choice
  math questions to measure mathematical ability)

12
Experiment definition

• Objective observation of effects that are
  produced in a controlled situation, where one or
  more factors are manipulated and others are kept
  constant (Zimney 1961)
• terminology
• subject
• experimenter
• independent variables (antecedent conditions,
  treatments)
• dependent variables (effects)
• disturbing / secondary / potential variables
  e.g. effect of
  pre-knowledge on learning speed (with motivation)
  p ? m ? l / p ? l m ? l
  / m ? p m ? l intermediating
  confounding artifact of
  selection
•


13
Categories of secondary / confounding variables

• 1. person variables
• capabilities
• motivation
• age
• educational background
• 2. sequence variables
• fatigue / boredom / learning
• development of subject during (longitudinal)
  study in relation to experiment
• 3. situation variables
• environment sound/temperature/day time
• experimenter effect on subject / experimenter
  observation bias
• task effect difficulty / modality of stimulus or
  instruction

14
Experimental design - how to cope with secondary
variables

• Main decision is based on type of the expected /
  known main confounding variables
• person variables ? repeated measures design each
  person is measured in all conditions
• needs balancing for possible sequence effects
• sequence variables ? multiple groups design each
  person is in a single group and participates in
  one condition only
• needs matched groups (keeps person variables in
  control) or
• randomized groups (more easy, less controlled)

15
Factorial designIn practice we often need a
combination of the previous designs

• factors between subjects to control for unwanted
  sequence effects
• factors within subjects (repeated measurements)
  to control for person variables
• and we still need to control for situation
  variables to
• keep these constant (if possible in field
  experiments)
• measure them and apply statistical control

16
Example theorybased on previous observation of
phenomena, variables, and relations

• women have difficulty to navigate with 3D
  interface
• this phenomenon disappears if screen is
  sufficiently large

17
Example hypothesis women have more difficulty
to navigate with 3D interface than men, unless
screen is large

• Independent variables
• gender (F/M)
• interface type (2D / 3D)
• screen size (Small/Large)
• Dependent variable navigation performance on set
  of standard tasks
• operationally defined time to click on target
  button (task effect?)
• Confounding variables
• sequence of interface types (makes aware of
  navigation issues)
• learning (can be handled by balancing)

18
Factorial design

• Between subjects
• gender (obvious) F/M
• interface type (awareness could destroy effect)
  2D/3D
• makes 224 groups
• Within subjects
• screen size S/M
• balanced for learning (at random half of subjects
  in each group S-M, other half M-S)
• for each size 10 navigation trials (to increase
  validity of navigation problems)
• randomly allocated to size from a set of 20
  (because .?)
• makes 101020 trials with effect measurement
  per person

19
Effects to be tested - ANOVA each test is
statistically independent from the others

• gender differences total - not a hypothesis
• interface type (2D vs 3D) - not a hypothesis
• screen size - not a hypothesis
• sequence effects of trials and interaction with
  other - not a hypothesis
• gender differences in relation to screen size
  (interaction) - not a hypothesis
• interface type in relation to screen size
  (interaction) - not a hypothesis
• gender differences in relation to type (2D vs 3D)
  (interaction)
• gender differences in relation to screen size and
  interface type (interaction)

20
Stability and reliability of experiment

• Reliability reproducibility of the phenomenon
  in the hypothetical case it could be repeated at
  the same point of time in the same circumstances
• Instability is the reverse, caused by
• 1. Characteristics of the measurement technique
• 2. Observer bias
• 3. Changes in the observer (fatigue - sequence
  issue)
• 4. Changes in the situation
• 5. Changes in the object/person studied (aging,
  attitude change - sequence issue)
• 4 and 5 are not always a case of unreliability,
  these changes may be covered by theory (should be
  topic of empirical study themselves)
