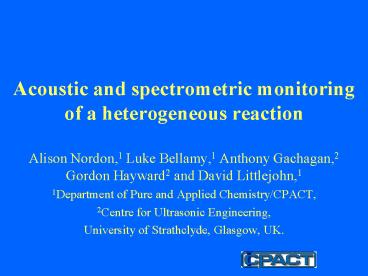

Acoustic and spectrometric monitoring of a
heterogeneous reaction

• Alison Nordon,1 Luke Bellamy,1 Anthony Gachagan,2
  Gordon Hayward2 and David Littlejohn,1
• 1Department of Pure and Applied Chemistry/CPACT,
• 2Centre for Ultrasonic Engineering,
• University of Strathclyde, Glasgow, UK.

2
Introduction

• Acoustics used widely in construction industry,
  medicine and for underwater measurements
• Now starting to be used for process monitoring

• Active
• Velocity and attenuation

• Two types of acoustic measurements

• Passive (emission)

3
Aim

• Investigate experimental factors that affect the
  passive acoustic signal
• Assess potential of passive acoustics for the
  monitoring of a heterogeneous reaction

4
Broadband acoustic emission system

• Transducers
• 150-1000 kHz (resonant mode at 90 kHz)
• 150-750 kHz

5
Signal processing
6
Investigation of factors

• Itaconic acid in toluene used as a model system
• Factors investigated
• Repeatability of transducer attachment
• Position of transducer
• Particle concentration
• Particle size
• Stir rate
• Fill level

7
1 L reactor
8
200 g of itaconic acid in toluene(transducer 2)
9
Transducer attachment(transducer 2)

• Same position (3)
• Transducer fixed
• RSD 1.6 (n5)
• Transducer reattached ?5
• RSD 7.5 (n25)
• Different positions (1-6)
• Largest RSD (23.6 ) for position 1 (n9)
• Statistically, no difference between signal area
  for position 3 and positions 1, 2, 4 or 5
• Principal component analysis shows that acoustic
  spectra at positions 3, 4 and 5 are similar

10
Effect of concentration(transducer 1)
11
Effect of concentration(transducer 1)
12
Effect of particle size(transducer 1)
13
Effect of stir rate(transducer 1)
14
Effect of fill level(transducer 1)
15
Heterogeneous reaction

• Esterification of itaconic acid with 1-butanol in
  toluene used as a model heterogeneous reaction

• Varied reaction conditions
• butanolitaconic acid
• temperature

16
21 butanolitaconic acid at 70 C(transducer 1)
17
Total ester concentration - HPLC
18
Effect of butanol concentration(transducer 1)
19
Effect of butanol concentration - HPLC
20
Effect of temperature(transducer 1)
21
Effect of temperature - HPLC
22
Conclusions

• Signal transmitted through and around vessel wall
• ? not just from particulates close to the
  transducer
• Between run repeatability affected by variability
  of transducer attachment
• Acoustic signals sensitive to
• concentration of particulates
• particle size
• stir rate
• Such changes can be used for process monitoring,
  kinetic studies and end-point detection
• e.g. consumption of solid material in a
  heterogeneous reaction

23
Acknowledgements

• Douglas McNab, CUE
• Paul Frake, GSK
• Ruth Waddell, CPACT
