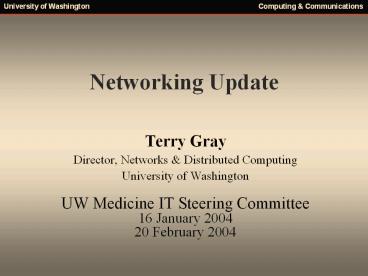

Networking Update

1
Networking Update

• Terry Gray
• Director, Networks Distributed Computing
• University of Washington
• UW Medicine IT Steering Committee
• 16 January 2004
• 20 February 2004

2
Outline

• In our last episode
• Context
• Expanded Partnership
• Recent Problems
• Today
• Systemic Problems and Progress
• Network Security Chronology
• Design Issues

3
Context A Perfect Storm

• Increased dependency on network apps
• Decreased tolerance for outages
• Decades of deferred maintenance...
• Inadequate infrastructure investment
• Some old/unfortunate design decisions
• Some extraordinarily fragile applications
• Fragmented host management
• Increasingly hostile security environment
• Increasing legal/regulatory liability
• Importance of research/clinical leverage

4
Key Elements of the Partnership

• Changed CC now responsible for...
• In-building network implementation
  andoperational support for med ctrs, clinics
• Med center network design for real
• Not Changed CC still responsible for...
• Network backbone, routers
• Regional and Internet connectivity
• SoM and Health Sciences networking

5
Why the Partnership Makes Sense

• Consistency, interoperability, manageability
• Leverage CC networking expertise
• Clinical/research hi-performance network needs
• 24x7 Network Operations Center (NOC)
• Advanced network management tools
• Avoid design/build organizational conflicts
• Beyond the network...hope to share distributed
  system architecture and network computing
  expertise

6
Recent Problems

• Oct 29 Partial router failure reveals escalation
  procedure problems
• Oct 30 Security breach triggers connectivity and
  server problems
• Nov 12 13 minute power outage triggers extended
  server outage
• Dec 12 Router upgrade uncovers wiring error,
  which triggers multicast storm(None of these
  were related to the network transition, save
  perhaps timing of 4)

7
System Elements

• Environmentals (Power, A/C, Physical Security)
• Network
• Client Workstations
• Servers
• Applications
• Personnel, Procedures, Policy, and
  ArchitectureFailures at one level can trigger
  problems at another level need Total System
  perspective

8
Reasonable Questions

• Whats up with CCs alarm system vendor?
• If power was out for only 14 minutes, why was
  service out for multiple hours?
• What can we say about an app so fragile that a
  net interruption of a few seconds requires a
  server reboot?
• What can we say about thin clients built on top
  of thick (WinXP) operating systems?
• What can we say about a network where one wiring
  fault can disable most of the net?

9
Systemic Problems and Progress
10
Systemic Network Problems(NB these pre-date Tom
et al)

• Old infrastructure (e.g cat 3 wire)
• Non-supportable technologies (e.g. FDDI)
• Non-supportable (non-geographic) topology
• Expensive shortcuts (e.g. cat5 mis-terminated)
• Security based on individual IP addresses
• Subnets with clients and critical servers
• Documentation deficiency
• Contact database
• Device location database
• Critical device registry

11
Systemic General Problems

• Ever-increasing system complexity, dependencies
• Departmental autonomy
• Un-controlled hosts
• Un-reliable power and A/C in equipment rooms
• No net-oriented application procurement
  standards
• Are HA and DRBR expectations realistic?
• Are backup plans workable?

12
Some Numbers
13
Network Device Growth
Note Most dips reflect lower summer use last
one is a measurement anomaly
14
Network Traffic Growth (linear)
15
Network Traffic Growth (log)
16
Near-term Progress and Plans

• Agreement on standard maintenance window
• Created Top 10 list --creeping to Top 20 )
• Static addressing work-around (success!)
• FDDI, VLAN elimination
• Subnet splits/upgrades (1500 computers)
• Equipment upgrades
• Router consolidation, dedicated subnets, separate
  med center backbone
• Equipment, outlet location database updates
• Initial wireless deployment

17
Design Review and Cost Estimates

• Biggest cost physical infrastructure
  wireplant upgrades
• NetVersant engaged for cost estimation project
• Cisco engaged for network architecture review
• We recommend similar reliability/design
  assessment for servers, apps procedures

18
Design Issues
19
Design Tradeoffs

• Networks Connectivity Security Isolation
• Fault Zone size vs. Economy/Simplicity
• Reliability vs. Complexity
• Prevention vs. (Fast) Remediation
• Security vs. Supportability vs.
  FunctionalityDifferences in NetSec approaches
  relate to
• Balancing priorities (security vs. ops vs.
  function)
• Local technical and institutional feasibility

20
Tradeoff Examples

• Defense-in-depth conjecture (for N layers)
• Security MTTE (exploit) ? N2
• Functionality MTTI (innovation) ? N2
• Supportability MTTR (repair) ? N2
• Perimeter Protection Paradox (for D devices)
• Firewall value ? D
• Firewall effectiveness ? 1 / D
• Border blocking criteria
• Threat cant reasonably be addressed at edge
• Wont harm network (performance, stateless block)
• Widespread consensus to do it
• Security by IP address

21
Network Security Credo

• Focus first on the edge(Perimeter Protection
  Paradox)
• Add defense-in-depth as needed
• Keep it simple (e.g. Network Utility Model)
• But not too simple (e.g. offer some policy
  choice)
• Avoid
• one-size-fits-all policies
• cost-shifting from guilty to innocent
• confusing users and techs (broken by design)

22
Preserving the Net Utility Model

• What is it?
• Why important?
• Incompatible with perimeter security?
• Too late to save?
• NUM-preserving perimeter defense
• Logical Firewalls
• Project 172
• Foiled by static IP addressing
• Requires all hosts be reconfigured

23
Lines of Defense

• Network isolation for critical services.
• Host integrity. (Make the OS is net-safe.)
• Host perimeter. (Add host firewalling)
• Server sanctuary perimeter.
• Network perimeter defense.
• Real-time attack detection and containment.

24
Network Security Chronology

• 1990 Five anti-interoperable networks
• 1994 Nebula shows network utility model viable
• 1998 Defined border blocking policy
• 2000 Published Network Security Credo
• 2000 Added source address spoof filters
• 2000 Proposed med ctr network zone
• 2000 Proposed server sanctuaries
• 2001 Ban clear-text passwords on CC systems
• 2001 Proposed pervasive host firewalls
• 2001 Developed logical firewall solution
• 2002 Developed Project-172 solution
• 2003 Slammer, Blaster death of the Internet
• 2003 Developed flex-net architecture

25
Next-Gen Network Architecture

• Parallel networks more redundancy
• Supportable (geographic) topology
• Med center subnets separate backbone zone
• Perimeter, sanctuary, and end-point defense
• Higher performance
• High-availability strategies
• Workstations spread across independent nets
• Redundant routers
• Dual-homed servers

26
Success Metrics

• Toms
• Nobody gets hurt
• Nobody goes to jail
• Terrys
• Works fine, lasts a long time
• Low ROI (Risk Of Interruption)
• Steves
• Four Nines or bust!

27
Success Metrics II

• We all want
• High MTTF, Performance and Function
• Low MTTR and support cost
• The art is to balance those conflicting goals
• we are jugglers and technology actuaries

28
Success Metrics III

• How many nines?
• Problem one what to measure?
• How do you reduce behavior of a complex net to a
  single number?
• Difficult for either uptime or utilization
  metrics
• Problem two data networks are not like phone or
  power services
• Imagine if phones could assume anyones number
• Or place a million calls per second!

29
Concerns, Future Challenges

• Mitigating impact of closed networking
• Needs of the many vs. needs of the few
• Pressure to make network topology match
  administrative boundaries
• Complex access lists
• False sense of security
• Increased MTTR
• Next-generation threats firewalls wont help
• Security vs. High-Performance
• Wireless
• Balancing innovation, operations, security

30
Lessons

• Five 9s is hard (unless we only attach phones?)
• Even host firewalls dont guarantee safety
• Perimeter firewalls may increase user confusion,
  MTTR
• Nebula existence proof security in an open
  network
• Even so defense-in-depth is a Good Thing
• It only takes one compromise inside to defeat a
  firewall
• Controlling net devices is hard --hublets,
  wireless
• The cost of static IP configuration is very high
• Net reliability host security are inextricably
  linked
• Never underestimate non-technical barriers to
  progress

31
Questions? Comments?
