Title: Windows Server 2003


1

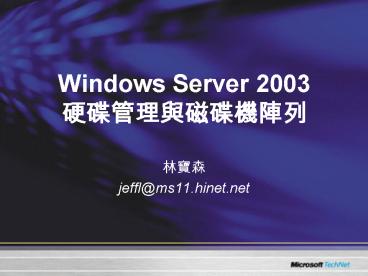

Windows Server 2003??????????
  • ???
  • jeffl_at_ms11.hinet.net

2
What Is Disk Management?
  • A snap-in located in Computer Management
  • Use to view disk information and perform disk
    management tasks on local and remote computers
  • Enables you to perform most disk-related tasks
    without shutting down the system or interrupting
    users

3
Using Disk Management
4
Organizing a Basic Disk
Primary partitions
Extended partition with logical drives
Up to three primary partitions and one extended
partition with logical drives
Up to four primary partitions
-OR-
5
Creating Partitions and Drives
Creating a partition
Creating a logical drive
6
Assigning Drive Letters
Assigned
CI
Primary
Disk 0
F
G
Disk 1
Logical
H
D
Disk 2
Primary
Disk 3
Primary
E
7
Changing a Drive Letter
8
What Is a Mounted Drive?
  • Is assigned a path rather than a drive letter
  • Can unify different file systems on a logical
    drive
  • Allows you to add more drives without using up
    drive letters

9
Creating a Mount Point
Before adding a mount point
After adding a mount point
10
Purpose of a Mounted Drive
  • Adds volumes to systems without adding separate
    drive letters for each new volume
  • Disk Management assigns a drive path to the drive
    rather than a drive letter
  • Drive paths retain their association to the drive
  • Add or rearrange storage devices without the
    drive path failing
  • Increases number of drives, not storage space
  • Manages data storage based on working environment
    and system usage

11
Deleting a Partition
12
Disk Storage Types
13
Basic Disks vs. Dynamic Disks
14
Converting a Basic Disk to a Dynamic Disk
Disk Management
DiskPart
15
Results of Dynamic Disk Conversion
  • Can convert a disk from basic to dynamic storage
    at any time without losing data
  • Dynamic disks are associated with Disk Groups
  • Disk Groups help you organize dynamic disks
  • Each disk in a Disk Group stores replicas of the
    same configuration data
  • Windows initializes the disk with a Disk Group
    identity and a copy of the current Disk Group
    configuration
  • Existing partitions on the basic disk become
    volumes
  • Dynamic disks can be reverted back to basic disks
  • Disk structure and data is not maintained
  • Back up data before reverting

16
Creating a Volume
  • A simple volume resides on a single dynamic disk
  • To create a spanned or striped volume, you must
    have two or more dynamic disks

17
Creating Simple Volumes
  • Simple Volumes
  • Contain Space on a Single Disk
  • Can Use NTFS, FAT, or FAT32
  • Can be created only on dynamic disks
  • Are Created with the Create Volume Wizard
  • Can Be Extended if Formatted as NTFS
  • Can Be Mirrored

18
Extending a Volume
  • Created by extending onto unallocated space on
    the same disk or a different disk
  • You cannot extend a volume that contains a system
    or boot volume

19
Creating Spanned Volumes
Free space combined into one logical volume
Data written to first disk until full, then to
next disk in volume
20
RAID Systems
  • Hardware Disk Array Supports
  • RAID 0 1
  • RAID 1 5

21
Creating Striped Volumes
Free space combined into one logical volume
Data written across all disks in 64-KB units
22
How Striped Volume Works
Disk 3
Disk 1
Disk 2
23
RAID 1 Mirrored Volume
24
Raid 5 Stripe Sets with Parity
Disk 3
Disk 4
Disk 5
Disk 1
Disk 2
Parity
Parity
Parity
Parity
Parity
Parity
Parity Information
25
Raid 1 vs. Raid 5
Mirrored Volume
RAID-5 Volume
  • Supports FAT and NTFS
  • Supports FAT and NTFS
  • Can mirror system or boot partition
  • Cannot stripe system or boot partition
  • Requires two hard disks
  • Requires minimum of three hard disks
  • Has higher cost per megabyte(50 percent
    utilization)
  • Has lower cost per megabyte
  • Has good read and write performance
  • Has moderate write performance
  • Has excellent read performance
  • Uses less system memory
  • Requires more system memory
  • Supports up to 32 hard disks

26
Recovering a Failed Mirrored Volume
  • Recover a disk identified as Offline, Missing,
    or
  • Online (Errors)

Disk 1
Disk 2
D
D'
  • When Reactivate Disk fails
  • to recover the mirrored volume,
  • replace the failed diskand reestablish
    themirrored volume

Reactivate Disk
Disk 1
Disk 2
Disk 2
D
D'
Add Mirror
Remove Mirror
27
Creating a Fault Tolerance Boot Disk
Format a disk using Windows Server
1
Copy the necessary files
2
Boot.ini
Modify Boot.ini
3
Test the boot disk
4
28
Understanding ARC Paths
multi(0)disk(0)rdisk(1)partition(2)
No BIOS
multi(0)
scsi(0)
rdisk(0)
rdisk(1)
disk(0)
partition(1)
partition(1)
partition(1)
partition(2)
partition(2)
29
Recovering a Failed RAID-5 Volume
  • Recover a disk identified as Offline, Missing,
    or
  • Online (Errors)

Disk 1
Disk 2
Disk 3
Parity
Parity
Parity
Parity
Parity
Parity
Reactivate Disk
  • When Reactivate Disk fails
  • to recover the RAID-5
  • volume, replace the
  • failed disk and
  • regenerate the RAID-5
  • volume

Disk 1
Disk 2
Disk 3
Regenerate Volume on New Disk
Replace Failed Disk
30
Managing Volumes on Disks
  • Deleting Spanned Volume and Striped Volume
  • Deleting a spanned volume or striped volume
    deletes all of the data that the volume contains
  • You can delete entire volume only
  • Repairing and Deleting RAID-5 Volume
  • Repairing a RAID-5 volume requires additional
    disk with sufficient free space
  • Deleting a RAID-5 volume deletes all data that
    the volume contains
  • You can delete entire RAID-5 volume only

31
Adding Disks
  • Adding a New Disk
  • Adding Disks from Other Computers
  • Failed Incomplete Volume and Failed Redundancy
    Mean Disk is Missing from Volume

Import Foreign Disk
32
What Is a Foreign Disk?
  • A dynamic disk when moved to a local computer
    from another computer running
  • Windows 2000 Professional and Server family
  • Windows XP Professional
  • Windows Server 2003 family
  • A disk moved within the same system,
    in some cases
  • A disk moved from a disk group to another
    computer that contains its own disk group can
    be displayed as a foreign disk

33
Moving Dynamic Disks
Moving a disk
  • When moving a dynamic disk, select import foreign
    disk to update the dynamic database on the newly
    added disk
  • When moving multi-disk volumes, move all disks in
    the volume at the same time
