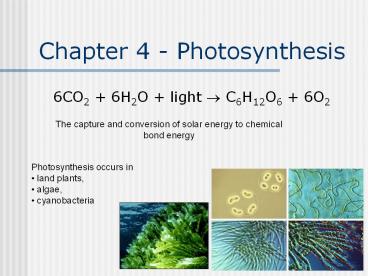

Chapter 4 - Photosynthesis

1
Chapter 4 - Photosynthesis

• 6CO2 6H2O light ? C6H12O6 6O2

The capture and conversion of solar energy to
chemical bond energy

• Photosynthesis occurs in
• land plants,
• algae,
• cyanobacteria

2
How is photosynthesis important?

• Universal energy source
• 100-200 billion metric tons/yr.
• Humans use 40 entire output

3
Photosynthesis produces oxygen
4
Photosynthesis the carbon cycle
5
Summary of photosynthesis
See Figure 4-12
Light-dependent reactions
Light-independent reactions
6
Chlorophyll absorbs some wavelengths of light
7
Accessory pigments
8
What happens when light is absorbed by a molecule?
Free electrons are a source of kinetic energy
9
Summary of photosynthesis
See Figure 4-12
Light-dependent reactions
10
Light-dependent reactions

• Photosystems embedded in the thylakoid membranes
  consist of chlorophyll molecules (100s) and
  electron transport systems
• Light energy captured and stored in energy
  carriers (ATP NADPH) via chemiosmosis

11
Light absorption by chlorophyll
Photolysis replaces electrons removed from
chlorophyll
12
Fig. 4-10
H20
?2H 2e- O
e-
Moving electrons provide the energy to move H
ions inside the thylakoid membrane
13
Summary of photosynthesis
Light-dependent reactions
Light-independent reactions
14
Light-independent reactions (Calvin Cycle)

• Occurs in the stroma
• Several enzyme-catalyzed steps
• Requires energy
• Produces sugars

15
1940s-50s Melvin Calvin
Nobel prize in chemistry - 1961
16
Calvins experiment (see Fig. 4-6)
17
Calvins results
18
Photosynthesis animation
19
Rate of photosynthesis varies with environmental
conditions

• What is meant by the rate of photosynthesis?
• What environmental conditions affect the rate of
  photosynthesis?

20
Factors influencing the rate of photosynthesis

• Carbon dioxide concentration
• Water availability
• Light intensity
• Temperature

21
Photorespiration and rubisco

• Rubisco Ribulose 1,5-bisphosphate
  carboxylase/oxygenase
• Most abundant protein on earth (25-40 of total
  plant protein)
• Activity depends on carbon dioxide concentration
  in the leaf

22
Rubisco as a carboxylase
23
Rubisco as a carboxylase
24
Rubisco activity and CO2 concentration

• If CO2 gt 50ppm, carboxylase activity
• If CO2 lt 50ppm, oxygenase activity

25
When would photorespiration occur and why?

• When are CO2 concentrations low?

• When stomata close
• Hot days
• Moisture stress

26
Variations of photosynthesis

• 85 of plants use C3 photosynthesis
• C3 cycle Calvin cycle
• C4 photosynthesis
• C4 plants include many tropical monocots, other
  grasses (0.4 of plants)
• Crassulacean Acid Metabolism (CAM)
• CAM plants cacti, orchids, bromeliads,
  succulents (10 of plants)

27
C4 photosynthesis is more efficient than C3 under
certain conditions
28
C4 photosynthesis
29
C4 plants reduce photorespiration by
concentrating CO2 in the bundle sheath cells
30
Crassulacean Acid Metabolism

• Evolved in areas of high light intensity, little
  precipitation
• Stomata closed during the day, open at night

31
(No Transcript)
32
(No Transcript)
33
Photosynthesis research

• Why study photosynthesis?

34
Photosynthesis Research

• Photosynthesis Center at Arizona State
• Oak Ridge National Laboratory
• Photosynthesis Research Unit

35
Photosynthesis Research

• Photosynthesis and temperature tolerance
• Photosynthesis at high CO2 levels
• CO2 Science Magazine
• Engineering C4 genes in C3 plants
• Production of pharmaceuticals in chloroplasts

36
Cellular respiration

• Plants utilize aerobic respiration as do animals
