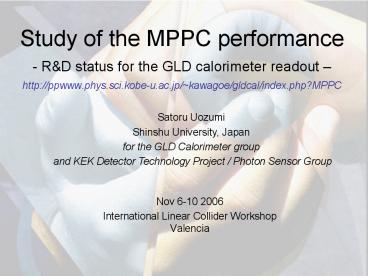

Study of the MPPC performance R

1
Study of the MPPC performance- RD status for
the GLD calorimeter readout http//ppwww.phys.sc
i.kobe-u.ac.jp/kawagoe/gldcal/index.php?MPPC
Satoru Uozumi Shinshu University, Japan for the
GLD Calorimeter group and KEK Detector
Technology Project / Photon Sensor Group

• Nov 6-10 2006
• International Linear Collider Workshop Valencia

2
The Multi Pixel Photon Counter (MPPC)- A novel
semiconductor photon sensor -

• High Gain (105106)
• Good Photon Detection
• Efficiency (2565)
• Compact
• (package size a few mm)
• Low Cost
• Magnetic-field tolerant
• High dark noise
• (order of 100-1000 kHz)
• Response against input
• light yield is non-linear

1 mm
Depletion region 2 mm
Substrate
Si Resistor
Vbias
Guard ring n-
p
n
Al conductor
p-
The MPPC is a still developing, but promising
device !
substrate p
3
The MPPC is drastically evolving

• Sometime in future
• Larger sensor area
• More number of pixels
• And perhaps more

• Jan. 2006
• 100/400/1600 pixels
• Smaller pixel size results in more number of
  pixels

• Oct. 2006
• 100/400/1600 pixels commercialized
• Improved Gain and dark noise

• Mar. 2005
• 100/400 pixels
• First sample from Hamamatsu

?
4
The New MPPC Sample
4 mm

• Latest 1600 pixel MPPC
• 20 samples arrived in October.
• Very compact plastic package suitable for
  attaching to scintillator strips.
• (this package is customized for our ECAL
  module, and not going to be commercialized)
• 500 more for ECAL beam test will be arrived in
  this month.

1.3 mm
3 mm
Front
Side
Scintillator strip
WLS fiber
MPPC
1 x 1 mm
Side view
5
Excellent photon counting ability
New 1600 pixel sample
0,1,2,3,4,5,6,7, . . . Photoelectrons !
Old 1600pixel sample
25 mm
6

• Performance of the
• latest 1600 pixel MPPC

• Gain, Noise Rate, Cross-Talk
• Device-by-device variation
• Temperature dependence
• All results are yet preliminary

7
Variation of the Gain over 20 samples
Mean 23.82 fF Variation 3.1
20 samples _at_ 25 oC
Mean 75.55 V Variation 0.22 V
Gain C (Vbias-V0) / e C Pixel capacity V0
Breakdown voltage
Good Uniformity !
8
Temperature dependence of the Gain

• 30 oC
• 25 oC
• 20 oC
• 15 oC
• 10 oC
• 0 oC
• -20 oC

• Breakdown voltage is linear to temperature.
• Thus the temperature change affects to the
  over-voltage ( Vbias-V0(T)).
• g eventually affects to all the MPPC properties.

DV0/DT (57.3 0.1) (mV/oC)
9
Variation of the Noise Rate
Cross-talk

• Dark counting rate with threshold of 0.5 and 1.5
  photoelectron.
• Test 20 samples _at_ 25 oC

20 samples _at_ 25 oC
gt 0.5 p.e.
gt 1.5 p.e.
10
Temperature dependence of theNoise Rate /
Cross-talk
gt 0.5 p.e.

• 30 oC
• 25 oC
• 20 oC
• 15 oC
• 10 oC
• 0 oC
• -20 oC

• 30 oC
• 25 oC
• 20 oC
• 15 oC
• 10 oC
• 0 oC
• -20 oC

• Lower temperature g lower dark noise
• Cross-talk is not affected by temperature change.

11
KEK Detector Technology ProjectPhoton Sensor
Group(http//rd.kek.jp/)(KEK, Kobe, Kyoto,
Nagoya, Nara-WU, NDA, Shinshu, Tokyo/ICEPP,
Tsukuba)

• Develop and study the MPPC with Hamamatsu
• Aiming to have satisfactory performance to use at

• GLD calorimeter
• T2K near detector
• Belle Aerogel Cerenkov Counter
• Provide important feedbacks to Hamamatsu for
  improvement of fundamental properties

12
News The MPPCs are finally on catalog !
(Numbers from HPK catalog)

• Hamamastu will start to deliver the MPPC in early
  2007.
• See following page for more information
• http//jp.hamamatsu.com/en/hamamatsu/press/2006/20
  06_10_26.html

13
Summary

• We now have the new 1600 pixel MPPCs for the GLD
  EMCAL test module.
• Performance of the new MPPC is sufficient for
  EMCAL beam test.
• Gain (2-8)x105, Noise Rate 50-300kHz, Cross-talk
  prob. lt 2-20
• However properties are sensitive to temperature
  change.
• g Need temperature control / monitoring at
  practical use.
• The MPPC is being commercialized soon !
• Measure properties of 500 samples used for the
  scintillator-W EMCAL module (will arrive in this
  month).
• Practical use for the calorimeter readout at the
  coming beam test ( g next talk )
• The MPPC RD will be continued until we achieve
  the necessary performance for the GLD calorimeter
  readout.
• Improvement of the dynamic range (num. of pixels)
  is especially important!
• Also need to measure non-linearity, stability,
  robustness to have deeper understanding of the
  device.

Plans
14
Backups
15
Photon Detection Efficiency by Hamamatsu
16

• Measurement with Microscopic Laser System

• Introduced by KEK-Detector Technology Project
• YAG Laser, ? 532 nm (green)
• Pulse width 2 nsec, rate 8 kHz
• Spot size 1 ?m
• Light yield 0.5 p.e. (not calibrated)
• Can perform precise pinpoint scan with the
  well-focused laser

Laser spot
17
The MPPC performance
The MPPC looks feasible for theGLD Calorimeter
readout!
18
Required performance for the GLD Calorimeter

• Gain Best to have 106 , at least 105
• Dynamic range can measure 1000 p.e.
• satisfactory to measure EM shower maximum
• need gt 2500 pixels
• Photon Detection Efficiency 30
• to distinguish MIP signal
• Noise rate 1 MHz (threshold 0.5 p.e.,
• threshold 1.5 p.e is also
  acceptable)
• good uniformity, small cross-talk
• Timing Resolution 1 nsec
• Necessary for bunch ID, slow neutron separation
• Sensor area 1.5 x 1.5 mm
• suitable for 1.5 mmf fiber
• Should be stable against bias voltage /
  temperature / time

19
RD Status _at_ GLD Calorimeter

• The MPPC performance looks feasible for the GLD
  calorimeter readout, but still not sufficient.
• Need study and improvement of the fundamental
  property to achieve our goal.
• Now we are measuring performance of latest 400 /
  1600 pixel MPPC prototypes provided by Hamamatsu.
• Based on its results, we provide feedback to
  Hamamatsu to have improved sample.

Evaluate performance of the MPPC
prototypes Provide feedback to HPK Improved
samples from HPK
20
Setup
21
Response / Correction curves ( with small
cross-talk )
R (pNpe)
R-1(pNfired) p0.1
p0.1
p0
(no cross-talk)
Response curve
Correction curve
