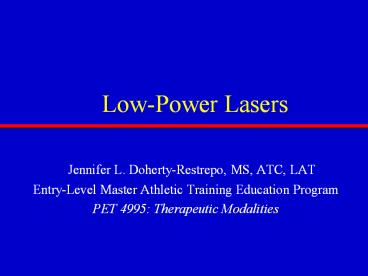

Title: Low-Power Lasers


1
Low-Power Lasers
  • Jennifer L. Doherty-Restrepo, MS, ATC, LAT
  • Entry-Level Master Athletic Training Education
    Program
  • PET 4995 Therapeutic Modalities

2

LASER
  • Light
  • Amplification of
  • Stimulated
  • Emission of
  • Radiation

L
A
S
E
R
3
Physics of the Laser
  • Light energy transmitted through space as waves
    that contain tiny "energy packets" called photons
  • Each photon contains a definite amount of energy
    depending on its wavelength (color)

4
Physics of the Laser
  • If a photon collides with an electron of an atom,
    it causes the atom to be in an excited state
  • Atom stays in excited state only momentarily
  • Atom quickly releases an identical photon to
    return to its ground state
  • Process is called spontaneous emission

5
Stimulated Emissions
  • A photon released from an excited atom will
    stimulate another atom to return to its ground
    state
  • For this to occur, an environment must exist with
    unlimited excited atoms
  • This is termed population inversion

6
Stimulated Emissions
  • Population inversion occurs when there are more
    atoms in an excited state than in a ground state
  • May be stimulated by an external power source
  • Photons may be contained in a chamber

7
Stimulated Emissions
  • Mirrors are placed at either end of the chamber
  • Photons are reflected within chamber, which
    amplifies the light and stimulates the emission
    of other photons from excited atoms

8
Stimulated Emissions
  • Eventually so many photons are stimulated that
    the chamber cannot contain the energy
  • Photons of a particular wavelength are ejected
    through the semipermeable mirror producing
    amplified light through stimulated emissions

9
Types of Lasers
  • Classified according to the nature of material
    between two reflecting surfaces
  • Crystal lasers
  • Synthetic ruby (aluminum oxide and chromium)
  • Neodymium, Yttrium, Aluminum, Garnet
  • Gas lasers (under investigation in the U.S.)
  • Helium neon (HeNe)
  • Argon
  • Carbon dioxide (CO2)

10
Types of Lasers
  • Classified according to the nature of material
    between two reflecting surfaces
  • Semiconductor or Diode lasers (under
    investigation in the U.S.)
  • Gallium-arsenide (GaAs)
  • Liquid lasers
  • Organic dyes lasing medium
  • Chemical lasers
  • Used for military purposes

11
Laser Classification
  • Laser equipment is grouped into four FDA classes
    with simplified and well-differentiated safety
    procedures for each
  • Low power lasers used in treating sports injuries
    are categorized as Class I and II laser devices

12
Laser Classification
  • High power lasers "hot" lasers
  • Thermal effects
  • Surgical cutting and coagulation,
    ophthalmological, dermatological, oncological,
    and vascular specialties
  • Low power lasers cold lasers
  • Cause photo-chemical rather than thermal effects

13
Laser Generators
  • Power Supply
  • Lasing Medium
  • Gas, solid or liquid
  • Pumping Device
  • Creates population inversion
  • Optical Resonant Cavity
  • Chamber where population inversion occurs
  • Contains reflecting surfaces

14
Helium-Neon Lasers
  • Gas lasers
  • Deliver a red beam
  • Wavelength 632.8nm
  • Laser delivered in a continuous wave
  • Direct penetration of 2 to 5 mm
  • Indirect penetration of 10 to 15 mm

15
Gallium-Arsenide Lasers
  • Semiconductor lasers
  • Invisible beam
  • Wavelength 904nm
  • Direct penetration of 1 to 2 cm
  • Indirect penetration to 5 cm

16
Techniques of Application
  • Laser energy emitted from hand held remote
    applicator
  • Tip should be in light contact with the skin
  • Applicator should be directed perpendicularly to
    the skin

17
Dosage
  • Dosage reported in Joules per square centimeter
    (J/cm2)
  • One Joule is equal to one watt per second
  • Dosage is dependent on
  • Output of the laser in mWatts
  • Time of exposure in seconds
  • Beam surface area of laser in cm2

18
Dosage
  • Dosage should be accurately calculated to
    standardize treatments and to establish treatment
    guidelines for specific injuries.
  • Intention is to deliver a specific number of
    J/cm2 or mJ/cm2

19
Pulsed vs. Continuous Laser
  • With pulsed laser treatment, times may be
    exceedingly long to deliver same energy density
    as compared to a continuous wave laser

20
Depth of Penetration
  • Depends on type of laser energy delivered
  • Direct effect
  • Response that occurs from absorption of laser
    energy
  • Indirect effect
  • Lessened response that occurs deeper in the
    tissues

21
Depth of Penetration
  • HeNe lasers
  • Direct effect 2-5 mm
  • Indirect effect 8-10 mm
  • GaAs lasers (longer wavelength)
  • Direct effect 1-2 cm
  • Indirect effect 5 cm
  • Better for treating deeper tissues

22
Clinical Applications
  • Wound healing
  • Immunological responses
  • Inflammation
  • Scar tissue
  • Pain
  • Bone healing

23
Indications for Laser
  • Facilitate wound healing
  • Pain reduction
  • Increasing the tensile strength of a scar
  • Decreasing scar tissue
  • Decreasing inflammation
  • Bone healing and fracture consolidation

24
Contraindications for Laser
  • Cancerous tumors
  • Directly over eyes
  • Pregnancy
