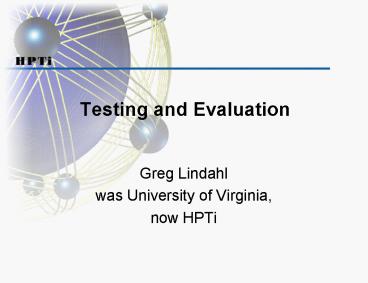

Testing and Evaluation

1
Testing and Evaluation

• Greg Lindahl
• was University of Virginia,
• now HPTi

2
My Qualifications

• assisted Wall Street clustering (130 machines)
• built Centurion I II (300 nodes) at UVa
• 276 node Forecast Systems Lab cluster
• myrinet, fiberchannel, complex software
• every one is different
• we (community) would like to do 6,000 nodes

3
Motivationsfor Test and Eval

• Roll your own Installation testing
• Acceptance testing Trust but verify
• Uh, does it run as fast as its supposed to?
• Well pretend that It doesnt work what the
  heck do we do now? never happens

4
Classes of Machine

• Boring 300 nodes
• occasional failures OK, as long as the user job
  eventually runs
• Exciting 6000 nodes
• Much more hardware to be subtly flaky on you
• users job may never finish due to series of
  errors
• system software more likely to flake out

5
Classes of Failure

• Infant mortality
• Burn in, youre done (ha)
• Systematic errors (broken network adapter, 10
  bad cables)
• capability test can catch
• Software
• Weird failures
• Compaq shipped me 276 bad power supplies at FSL
  only statistics pointed the finger at it

6
How to test

• I use the same suite for both installation
  testing and acceptance testing
• Simulated Use Testing is King
• apps, I/O, both capability and capacity jobs, job
  mix
• Add in apps from other disciplines to stress
  machine in unusual ways
• NAS PB
• Big Pile of Benchmarks (Susan and I)

7
Terascale is different

• Occasional failures that are no big deal on small
  machine are fatal to large capability jobs
• My 300-node reliability daemon has too many false
  positives for a terascale machine!
• Probability of un-isolated problems increases

8
RAS features neededSmall and TeraScale

• Reliability Monitoring of networks, daemons,
  logfiles
• Today, not all relevant info comes out (soft
  memory errors, IDE drive retries)
• Some straightforward development needed (myrinet
  has SNMP now, etc)
• symptoms can be subtle bad fibre caused apparent
  software problem on an SGI, but now we know...

9
RAS Continued

• Higher Availability
• Reasonably fault tolerant comp node failure only
  takes out 1 job, doesnt require operator
  intervention
• Serviceability
• cluster partition (test new software release)
• rolling upgrade (nodes upgraded as available)
• checkpoint allows much better access to nodes
  without discomfiting users

10
Summary

• Lots of raw materials exist to attack the testing
  and evaluation problem
• The methodology exists, too
• Even if you buy a complete system, you still need
  to know how to write the acceptance test
• Open source RAS has a long way to go
• but there is a small system solution today

11
Gong This SlideMM5 Performance (t3a)
Gigaflops
