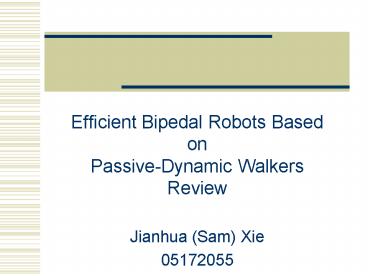

Efficient Bipedal Robots Based on PassiveDynamic Walkers Review

1

• Efficient Bipedal Robots Based onPassive-Dynamic
  Walkers Review
• Jianhua (Sam) Xie
• 05172055

2
Overview

• Passive-dynamic walkers
• They are simple mechanical devices, composed of
  solid parts connected by joints, that walk stably
  down a slope.
• They have no motors or controllers and can have
  humanlike motion

3
Overview-Different approach

• Most researcher study human walking by measuring
  joint angle and reaction force
• passive-dynamics model compares to human in terms
  of morphology, gait appearance, energy use, and
  control
• The robots do not control any joint at any time

4
Overview

• The article present three robots based on
  passive-dynamics, with small active power sources
  substituted for gravity, which can walk on level
  ground.
• These robots use less control and less energy
  walk more naturally

5
Passive designs

• The Wilson Walkie
• MITs improved version
• Cornell copy of McGeers capstone design
• The Conell passive biped with arms

6
Three Robots Developed

• Three robots using passive-dynamic machines were
  built in at three institutions
• The Cornell biped (A)
• The Delft biped (B)
• MIT learning biped (C)

7
The Cornell biped

• Machine weight 12.7kg and has 5 internal degrees
  of freedom
• The robot has only one capability, walking
  forward
• Low energy use (primary goal)
• A proof-of-concept prototype

8
The Cornell biped

• The Cornell biped is specifically designed for
  minimal energy use.
• The primary energy losses for biped walking at a
  constant speed is due to dissipation
• Cornell design demonstrates that its possible to
  avoid this negative actuator work

9
The Cornell biped - how to walk

• One hip, two knees, and two ankles
• Ankle push-off restores energy lost
• State switching
• Left Leg Swing
• Right Ankle Push-off
• Right Toe Return
• Right Leg Swing

10
The Delft biped

• Machine weight 8kg and has 5 internal degrees of
  freedom
• Air-actuated artificial muscle (McKibben muscles)
• A proof-of-concept prototype

11
The Delft biped

• The muscles are fed with CO2 from a 58 atm
  cannister, pressure-reduced in two steps to 6 atm
  through locally developed miniature pneumatics

12
The Delft biped

• The success of the robot at balancing using
  ankles
• swift swing-leg motion not only increased
  fore-aft stability but also increased lateral
  stability

13
MIT learning biped

• Machine weight 2.57kg and has 6 internal degrees
  of freedom
• The robot is designed to test the utility of
  motor learning on a passive-dynamic mechanical
  design.

14
MIT learning biped

• The goal of the learning is to find a control
  policy that stabilizes the robots trajectory on
  level terrain using the passive ramp-walking
  trajectory as the target.

15
MIT learning biped

• Measurements from previous and current step to
  efficiently estimate the performance gradient on
  the real robot
• despite sensor noise
• imperfect actuators and uncertainty in the
  environment

16
MIT learning biped

• The MIT biped shows that the efficiency of motor
  learning can be strongly influenced by the
  mechanical design of the walking system, both in
  robots and possibly in humans.

17
Three robots mimic humans

• Each of robots here has some design features that
  are intended to mimic humans
• Cornell and Delft use anthropomorphic geometry
  and mass distributions in their legs and
  demonstrate ankle push-off and powered leg
  swinging
• MIT biped uses a learning rule that is
  biologically plausible at the neural level

18
Conclusion

• The conclusion that natural dynamics may largely
  govern locomotion patterns was already suggested
  by passive-dynamic machines.
