RSA and PublicKey Cryptosystems

1

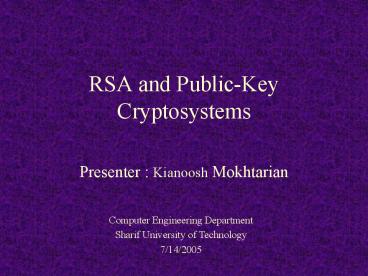

RSA and Public-Key Cryptosystems

• Presenter Kianoosh Mokhtarian

Computer Engineering Department Sharif University
of Technology 7/14/2005
2
Types of Cryptosystems

• Symmetric (secret key cryptosystems)
• Use the same key to encrypt and decrypt a message
  (or one key is easily derivable from the other)
• A problem how to transport the secret key
  securely?
• Trusted couriers are used to do so, but it is not
  feasible if a system is to be rapid and
  inexpensive
• Assymetric (public key cryptosystems)
• Use one key (the public key) to encrypt a message
  and a different key (the private key) to decrypt
  it

3
Public-Key Cryptosystems

• Each user places an encryption procedure in a
  public file and keeps his decryption procedure
  secret
• D(E(M)) M
• Both E and D are easy to compute
• By publicly revealing E the user does not reveal
  an easy way to compute D, in practice only he can
  decrypt E(M)
• E(D(M)) M
• An encryption (decryption) procedure consists of
  a general method and an encryption key

4
Signatures

• Sometimes the recipient must be sure that the
  message is originated from the sender
• The signature must be message-dependent, as well
  as signer-dependent
• Bob wants to send Alice a signed message
• He computes his signature S for the message M,
  S DB(M), and sends EA(S) to Alice
• Bob cannot deny having sent Alice this message
• Alice cannot modify M (use Bobs sign for M)

5
RSA

• Ron Rivest, Adi Shamir and Leonard Adleman
• Very vulnerable to chosen plaintext attack (also
  a new timing attack can break many
  implementations of RSA)
• Represent the message as integers between 0 and
  n-1
• C º E(M) º M (mod n), for a message M
• M º D(C) º C (mod n), for a ciphertext C
• Encryption does not increase the size of a
  message
• Encryption key is (e, n), Decryption key is (d, n)

e
d
6
The Keys

• n pq where p and q are very large random
  primes (to be hidden due to the difficulty of
  factoring n)
• Pick d, a large random integer, relatively prime
  to (p-1).(q-1)
• e is the multiplicative inverse of d mod
  (p-1)(q-1)
• e.d º 1 ( mod (p-1)(q-1) )
• A high-speed computer can encrypt a 200-digit
  message in a few seconds, special-purpose
  hardware would be much faster

7
The Underlying Mathematics

• F(n) The Euler totient function giving number
  of positive integers less than n and relatively
  prime to n
• F(p) p - 1 for prime numbers
• By elementary properties of totient function
• F(n) F(p).F(q) (p-1).(q-1)

e
d
d
e.d

• D(E(M)) º (E(M)) º (M ) º M (mod n)

d
e
e
e.d

• E(D(M)) º (D(M)) º (M ) º M (mod n)

8
Underlying Mathematics (contd)
k.F(n) 1
e.d

• M º M (mod n)

p - 1
k.F(n) 1

• M º 1 (mod p) ? M º M
  (mod p)

q - 1
k.F(n) 1

• M º 1 (mod q) ? M º M
  (mod q)

k.F(n) 1
e.d

• thus M º M º M (mod n)

e

• Computing M (mod n) requires at most 2.log(e)
  multiplications and 2.log(e) divisions

9
How to find Large Prime Numbers?

• Generate odd 100-digit random numbers, about
  ln(10 )/2 115 numbers will be tested
  before a prime is found (by the prime number
  theorem)
• A probabilistic algorithm (by Solovay and
  Strassen) to test large number b for primality
• Pick a random number a from 1, , b - 1 and
  tests gcd(a, b) 1 and J(a, b) a
  (mod b)
• It is always true if b is prime, and false with
  probability at least ½ if b is composite

100
(b-1)/2
10
Large Prime Numbers (contd)

• Test b with 100 randomly choosen values of a
• A negligible chance of 2 for b to be
  composite, also the receiver would probably
  detect this
• For odd b, a lt b, gcd(a, b) 1, J(a, b) ? -1,
  1
• (Jacobi) J (a, b) if a 1 then 1 else

-100
(b - 1) / 8
if a is even then J(a / 2, b).(-1)
(a - 1).(b - 1) / 4
else J(b (mod a), a).(-1)
11
Large Prime Numbers (contd)

• For more protection against factoring algorithms

• p and q should differ in length by a few digits
• gcd (p - 1, q - 1) should be small
• both (p - 1) and (q - 1) should contain large
  prime factors, to do so, generate a large prime u
  and let p be the first prime in the sequence k.u
  1 for k 2, 4, 6,
• A high-speed computer can test a 100-digit number
  primality in several seconds, and can find the
  first prime after a given point in one or two
  minutes

12
Factoring n

• Factoring n would enable cryptanalysts to break
  this method
• No polynomial-time factoring algorithm is known
  for Turing machines
• Some quantum computer algorithm is able to factor
  integers in polynomial time (by Shor), but
  physicists have so far been unable to build a
  quantum computer that can handle more than a
  half-dozen bits

13
Factoring n (contd)
¼

• An algorithm (by Pollard) factors n in time O(n
  )
• The fastest algorithm known (until the RSA paper
  release date) by Richard Schroeppel, can factor n
  in approximately n
  steps
• If each operation uses 1 microsecond, factoring a
  50-digit number with this method takes 3.9 hours
  and a 100-digit number takes 74 years

sqrt ( ln ln(n) / ln(n) )
14
Factoring n (contd)

• If P NP breaking such systems is easy
• An NP decision problem with complexity equivalent
  to that of integer factoring
• Lfact lta, bgt there exist d (1 lt d lt a and
  d b)
• The complement of Lfact is also in NP (use the
  prime factorization of b as the certificate)
• Factoring ? NP ? co-NP
• If Factoring is NP-hard then NP co-NP

15
Security (Cryptanalytic Approaches)

• Obviuos approaches for breaking this system are
  at least as difficult as factoring n
• Computing F(n) without factoring n
• Not easier than factoring n, n can be factored
  using F(n)
• F(n) (p-1).(q-1) n - (p q) 1 ? compute
  (p q)
• p - q (p q) - 4n ? compute p and q
• Determining d without factoring n or computing
  F(n)
• d ? (e.d - 1) is a multiple of F(n)
• n can be factored using any multiple of F(n)
  (Miller)

2
16
References

• A Method for Obtaining Digital Signatures and
  Public-Key Cryptosystems, R.L. Rivest, A. Shamir,
  and L Adleman
• (http//theory.lcs.mit.edu/cis/pubs/rivest/rsapa
  per.ps)

• The P versus NP problem, Stephen Cook
• (http//www.claymath.org/millennium/P_vs_NP/Offic
  ial_Problem_Description.pdf)

• Introduction to Quantum Information Processing,
  Richard Cleve
• (http//www.iqc.ca/qipcourse/introqip/fall04/f04
  lecture19.ppt)

• Cryptographic Algorithms (http//www.eskimo.com/w
  eidai/algorithms.html)
• Introducing Public Key Cryptosystems
• (http//www.math.nmsu.edu/crypto/public_html/Publ
  icKey.html)
