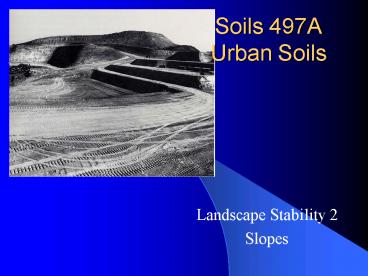

Soils 497A Urban Soils

1
Soils 497AUrban Soils

• Landscape Stability 2
• Slopes

2
Expression of Slope

• Typically, Civil Engineers and Landscape
  Architects use a ratio of linear horizontal units
  to units of vertical distance. (21, 31).
• Soil Scientists use the percent slope that is the
  change in elevation divided by the change in
  distance.
• Geologists and Engineers also use degrees of
  slope. The angle of the slope.

3
Slope Stability

• The slope must be internally stable in the
  engineering sense which is much deeper than the
  usual planting soil.
• Slopes must be stable prior to the establishment
  of vegetative cover.
• Vegetation only will stabilize the slope down to
  the depth of the roots, not any deeper.

4
Angle of Repose

• In Engineering circles, it might be called angle
  of internal friction.
• Most soils have a stable angle of repose between
  30 and 40 degrees.
• Angle of Repose is often overlooked during
  construction causing slippages.

5
This soil has been piled steeper than its
inherent angle of internal friction.
6
(No Transcript)
7
Slope Failure
Topography
Internal Factors

• Soil Thickness
• Bedrock Type / Orientation
• Water Drainage Paths
• Watertable Depth

• Slope Gradient
• Slope Length
• Slope Shape

8
Topography
Which slope shape will have a better chance to
develop an unstable slope?
9
Slope Stress
The internal angle of friction of the soil
defines the slope at which that soil is stable.
Shear
Normal
10
Rotational Slides
11
(No Transcript)
12
Collapse Zone
Funnel Zone
Run-out Zone
Italy
13
Collapse Zone
Funnel Zone
Run-out Zone
La Conchita, CA courtesy of USGS
14
Town of Onondaga, NY
15
Colorado
16
Courtesy of USGS
17
Creating parallel ridges to provide teeth for the
soil to adhere to.
18
Creating terraces to provide teeth for the soil
to adhere to.
19
(No Transcript)
20
THE ENGINEERED SLOPE AS APPLIED TO THE GETTY
CENTER, VIEW 1
21
THE ENGINEERED SLOPE AS APPLIED TO THE GETTY
CENTER, VIEW 2
22
Use of Geofibers to help stabilize the designed
soil slope.
Carnegie Mellon University Krause Campo
Sculpture Garden Pittsburgh, PA
23
Transition from designed soil to in-situ soils.
24
Transition from designed soil to in-situ soils.
25
Drainage Location for Retaining Walls
26
(No Transcript)
27
(No Transcript)
28
Gravel Trench with Tile Line to intercept errant
water.
29
(No Transcript)
