AsahiAmerica Thermoplastic Valves

1

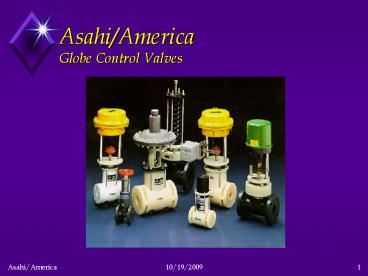

Asahi/AmericaGlobe Control Valves
2
Asahi/AmericaGlobe Control Valves

• Valve Features
• Solid Thermoplastic Valve Bodies
• Teflon Bellows Sealing Arrangement
• Interchangeable Plug Seat
• Characterizable Plug (Trim)

3
Asahi/AmericaGlobe Control Valves

• Standard Features
• Very Accurate Control
• Wide Cv Range
• Characterizable Plug (Trim)
• Linear Electric
• Equal Percentage Electric
• Linear Pneumatic
• Equal Percentage Pneumatic

4
Asahi/AmericaGlobe Control Valves

• Unique Features
• Solid Thermoplastic Valve Bodies
• Pvdf Solid Teflon
• Teflon Bellows Sealing Arrangement
• 1 Million Cycles Minimum
• Interchangeable Plug Seat

5
Asahi/AmericaGlobe Control Valves

• Total Flexibility
• Hastelloy,Titanium, Etc.Trim
• Positioners (Analogue Digital Inputs)
• Additional Potentiometer (1K-1000 Ohm)
• Manual Override Handwheel (Pneumatic)
• 220 Vac for Electric

6
Asahi/AmericaPneumatic Globe Control Valves

• Engineering Specifications
• Body Material PVC, PP, PVDF, Teflon
• Sealing Design Teflon Bellows
• Actuator Diaphragm Type
• Spring Return Fail-open or Fail-close
• Supply Air 90 psi
• Air connection ¼ NPT
