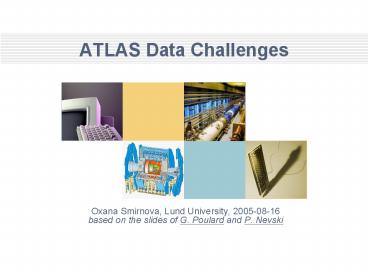

ATLAS Data Challenges

1
ATLAS Data Challenges

• Oxana Smirnova, Lund University, 2005-08-16based
  on the slides of G. Poulard and P. Nevski

2
Overview

• Introduction
• ATLAS experiment
• ATLAS Data Challenges program
• Data Challenge 2
• The 3 Grid flavors (LCG Grid3/OSG and
  NorduGrid/ARC)
• ATLAS production system
• ATLAS DC2 production
• Conclusions

3
Large Hadron Collider (LHC) at CERN
Mont Blanc, 4810 m
Geneva
4
The ATLAS Experiment
ATLAS collaboration 2000 Collaborators 150
Institutes 34 Countries
Event rate 2x109 events per year (200 Hz) with
an average event size of 1.6 Mbyte.
Diameter 25 m Barrel toroid length 26
m Endcap end-wall chamber span 46 m Overall
weight 7000 Tons
5
Challenge of the LHC computing
Storage Raw recording rate of 0.1 1
GBytes/sec Accumulating at 5-8 PetaBytes/year
10 PetaBytes of disk space Processing
200,000 of todays fastest PCs
6
Full chain of HEP data processing
Slide adapted from Ch.Collins-Tooth and
J.R.Catmore
7
ATLAS Data Challenges

• Scope and Goals of the Data Challenges (DCs)
• Validate
• Computing Model
• Software
• Data Model
• DC1 (2002-2003)
• Put in place the full software chain
• Simulation of the data digitization pile-up
• Reconstruction
• Production system
• Tools (bookkeeping monitoring )
• Intensive use of Grid
• Build the ATLAS DC community
• DC2 (2004)
• Similar exercise as DC1, BUT
• Use of the Grid middleware developed in several
  projects
• LHC Computing Grid project (LCG) to which CERN is
  committed
• Grid3/OSG in US
• NorduGrid/ARC in Nordic countries and elsewhere

8
DC2 production flow
9
DC2 production phases

• ATLAS DC2 started in July 2004
• The simulation part was finished by the end of
  September and the pile-up and digitization parts
  by the end of November
• 10 Mevents were generated, simulated and
  digitized and 2 Mevents were piled-up
• Event mixing and reconstruction was done for 2.4
  Mevents in December.
• The Grid technology has provided the means to
  perform this worldwide mass production

10
The 3 Grid flavors

• LCG (http//cern.ch/LCG/)
• The job of the LHC Computing Grid Project LCG
  is to prepare computing infrastructure for
  simulation, processing and analysis of the LHC
  data for all four of the LHC collaborations. This
  includes
• common infrastructure of libraries, tools and
  frameworks required to support the physics
  application software
• development and deployment of the computing
  services needed to store and process the data,
  providing batch and interactive facilities for
  the worldwide community of physicists involved in
  LHC
• Grid3 (http//www.ivdgl.org/grid2003/)
• The Grid3 collaboration has deployed an
  international Data Grid with dozens of sites and
  thousand of processors. The facility is operated
  jointly by the US Grid projects and the US
  participants in the LHC experiments ATLAS and CMS
• NorduGrid (http//www.nordugrid.org/)
• The aim of the NorduGrid collaboration is to
  deliver a robust, scalable, portable and fully
  featured solution for a global computational and
  data Grid system. NorduGrid develops and deploys
  a set of tools and services the so-called ARC
  middleware, which is a free software

• LCG, Grid3 and NorduGrid have similar approaches
  using the same foundations (the Globus Toolkit),
  but so far are not fully interoperable

11
The 3 Grid flavors LCG
Number of sites and resources is evolving rapidly
12
The 3 Grid flavors NorduGrid/ARC

• A Grid based on ARC middleware
• Driven (so far) mostly by the needs of the LHC
  experiments
• One of the worlds largest production-level Grids
• Contributed significantly to the DC1 (using the
  Grid already in 2002)
• Supports production on several operating systems
  (non-CERN platforms)
• Contribution to DC2
• 22 sites in 7 countries
• 3000 CPUs (dedicated 700)
• 7 Storage Services of 12TB
• 1FTE in charge of the production

13
The 3 Grid flavors Grid3

• September 04
• 30 sites, multi-VO
• shared resources
• 3000 CPUs (shared)

• The deployed infrastructure has been in operation
  since November 2003
• At this moment running 3 HEP and 2 Biological
  applications
• Over 100 users are authorized to run in GRID3

14
ATLAS Production System

• Thin application-specific layer on top of the
  Grid and legacy systems
• Don Quijote is a data management system,
  interfacing to Grid data indexing services (RLS)
• Production Database holds job definitions and
  status records

• Windmill the supervisor, interacts between
  the ProdDB and the executors
• Can re-submit a job as many times as required
• Executors use Grid-specific API to schedule and
  manipulate the jobs
• Capone Grid3
• Dulcinea ARC
• Lexor LCG2

15
Emerging Hyperinfrastructure
16
ATLAS DC2 countries and sites

• Australia (3)
• Austria (1)
• Canada (4)
• CERN (1)
• Czech Republic (2)
• Denmark (4)
• France (1)
• Germany (12)
• Italy (7)

• Japan (1)
• Netherlands (1)
• Norway (4)
• Poland (1)
• Slovenia (1)
• Spain (3)
• Sweden (7)
• Switzerland (1)
• Taiwan (1)
• UK (7)
• USA (19)

19 countries 72 sites
12 countries 31 sites
7 countries 22 sites
17
ATLAS DC2 production
Accumulated number of jobs as of November 30, 2004
Total
18
Job distribution
As of 30 November 2004
19 countries 72 sites 260000 Jobs 2
MSi2k.months
19
Production Rate Growth
Expected rate 4000 jobs/day
20
GRID Job statistics
ATLAS production in 2004-2005

• 516450 jobs done
• 60259 jobs NOT done
• 75872 jobs had no input
• 36085 jobs aborted (bad definitions)
• Not that bad !
• LCGCGGRID3NG
• 40 30 20 10

6
ltNattemptgt1.7

• CondorG (CG) refers to direct job submission to
  LCG resources, circumventing workload management
  and accounting services. Used by ATLAS since
  March 2005, planned to get expanded to all the
  Grid flavors

21
Production efficiency

• Why such differences?
• Human factor
• Maximum efficiencies reached with best qualified
  operators
• Middleware issues
• ATLAS software, on-demand installation problems
• Databases issues
• Data movement issues

Grid3
NorduGrid
LCG
Graphs by A. Vanyashin
22
DC2 lessons the problems

• The production system was in development during
  DC2
• The beta status of the services of the Grid
  caused troubles while the system was in operation
• For example the Globus RLS, the Resource Broker
  and the information system of LCG were unstable
  at the initial phase
• Especially on LCG, lack of a monitoring system
• Misconfiguration of sites and site instabilities
• But also
• Human factor (expired credentials, typos, lack of
  qualification, exhaustion)
• Network problems (connection lost between two
  processes)
• Data Management System problems (eg. connection
  with mass storage systems, data movement and
  registration failures)

23
DC2 lessons the achievements

• Have run a large scale production on Grid ONLY,
  using 3 Grid flavors
• Have an automatic production system making use of
  Grid infrastructures
• Few 10 TB of data have been moved among the
  different Grid flavors using the Don Quijote
  (ATLAS Data Management) servers
• 260000 jobs were submitted by the production
  system
• 260000 logical files were produced and 2500
  jobs were run per day

24
Conclusion

• ATLAS DC2 proved that a Virtual Organization can
  efficiently use a variety of Grids
• 3 Grids might be too much, but better than 72
  individual sites
• General lesson production needs a better
  planning
• software readiness, input generation, QA etc
• Job submission, control and monitoring have to
  be significantly improved
• Data management became critical, needs more
  efforts
• 25 to 50 of all job failures are due to data
  management issues
• ATLAS databases a good progress, still a lot of
  work ahead
• Software installation can and should be
  improved
• Better communications with resource providers is
  vital
