MyLifeBits: Attempting to realize the Memex Vision

1

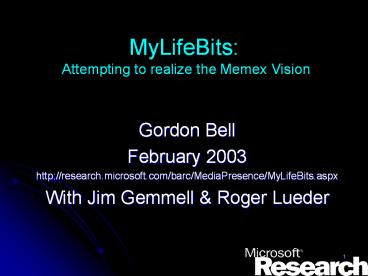

MyLifeBits Attempting to realize the Memex
Vision

• Gordon Bell
• February 2003
• http//research.microsoft.com/barc/MediaPresence/M
  yLifeBits.aspx
• With Jim Gemmell Roger Lueder

2
Outline MyLifeBits

• Backgroundfulfilling the Memex vision
• Cyberizing everything
• File to database transition
• Usebeyond search
• Long-term agenda and outlook

3
MemexPosited by Vannevar Bush in As We May
Think The Atlantic Monthly, July 1945

• A memex is a device in which an individual
  stores all his books, records, and
  communications, and which is mechanized so that
  it may be consulted with exceeding speed and
  flexibility
• Supports Annotations, links between documents,
  and trails through the documents
• yet if the user inserted 5000 pages of material
  a day it would take him hundreds of years to fill
  the repository, so that he can be profligate and
  enter material freely

4
Sketch of memex
5
Bushs camera on the head
6
Capturing what you see
7
Memory Overload

• As hard drives get bigger and cheaper, we're
  storing way too much.
• By Jim Lewis
• There's a famous allegory about a map of the
  world that grows in detail until every point in
  reality has its counterpoint on paper the twist
  being that such a map is at once ideally accurate
  and entirely useless, since it's the same size as
  the thing it's meant to represent.

8
"The PC is going to be the place where you store
the information and really the center of control
Billg 1/7/2001

• MyLifeBits is a project to cyberize
  everything!
• What? Recall of all articles, books, CDs, photos,
  video, communication (e.g. mail, phone), web
• Why? because we can
• Office communicate, store, work
• Home Media Center ambiance entertainment
• Immortality for progeny. Memory aids
• Goal to understand the 1 TByte PC c2006 need,
  utility, cost, feasibility and tools.

9
Knowledge worker scenarios
Gordon Researcher, consumer, computer system
tester, nerd wanna-be, and average man Melissa
middle manager Patrick Consultant Nicholas
Analyst Sondra Office manager
10
The guinea pig

• Gordon Bell is digitizing his life
• Has now scanned virtually all
• Books written (and read when possible)
• Personal documents (correspondence including
  memos and email, bills, legal documents, papers
  written, )
• Photos
• Posters, paintings, photo of things (artifacts,
  medals, plaques)
• Home movies and videos
• CD collection
• And, of course, all PC files
• Now recording phone, radio, TV (movies), web
  pages conversations?
• Paperless throughout 2002. 12 scanned, 12
  discarded.
• Only 30 GB!!!

11
Capture and encoding
12
I mean everything
13
Input tools, time, and cost

• Scanners HP Digital Sender, flat beds with ADF,
  2-HP photo, faxing. (Duplex, color, feed-thru,
  etc.)
• A good commercial scanner costs 2K-10K
• Photos 1 or 0.5-5 min. Large posters 1-5
  hr.Artifacts 10 min. including photo
• Scanning to TIF, PDF lt1 min/page or .10/page
• OCR for MODI or PDF 3-5 pages/min (old data)
• OCR to recreate an editable original 10
  min/page!
• OCR (Volume paper files) 400 pages/hr. 7 ppm.
• Books scanned at CMU (10 - 100/book) in 1997
• Videos tbd

14
CyberAll Nov.1, 2001
Music 6.9 GB 1.8K files 180 CDs
Working 2.3 GB 432 folders 2.9K files
Archive 5.1 GB 477 folders 18.7 K files
.gif
.ppt/ppt albums
.pdf
My Books 98 MB
.tif
Mail .7 GB43K msgs
Video 2.6 GB 10 hours Low res
.xls
.jpg
.doc/html
27.1K files 42K .msg 17.7 GB (by size)
Files (by number)
15
gbell wag 67 yr, 25Kday life
16
gbell wag 67 yr, 25Kday life
17
MyLifeBits organization time and space
Archival (time) Working
Timeline/ Context(space)
Personal (some s) GB Co.(angel, etc.)
Professional ACM, etc., _at_Microsoft.com, New
cos.
18
MyLifeBits Some Lives(t)

• CGB_at_ Microsoft
• MLB
• Clusters
• Telepresence
• WWW presence
• Computer History Museum
• BOD member
• Fund-raising
• CyberMuseum
• Startups
• Bell-Mason Director
• Diamond Vanguard Brds.

• Personal
• Parents, children, grandkids
• CGB himself
• Close friends
• GB s
• Personal incl. several legal structures
• Investments boards
• Past companies/organizns
• DEC
• Carnegie-Mellon U.
• DEC, NSF, Encore, Ardent, GB_consulting,

19
MyLifeBits is

• Memex and more (audio and video)
• Universal store for all personal stuff
• Guiding principles for the system
• Full text search collections (gt than hierarchy)
• Visualizations for search, display, insight
• Annotations and links add value and essential
• Increase search ability and value of information.
• So make many kinds and them easy to create!
• Stories are the ultimate annotation
• Keep the links when you author transclusion

20
MLB database size and content?

• Database features are essential Consistency,
  Indexing, Pivoting, Queries, Speed/scalability,
  Backup, replication.
• Folders Files were the starting point gtgt
  database into sets aka collections that are
  identical to the folder structure
• Outlook (msgs, attachments, calendar, contacts)
• Web trails including voice message annotation
• Journal (Outlook), trails every document use
  transaction
• What about?
• Money (transactions, payees, etc.)is their
  lifelog/trail
• Streets and trips to cross-index to all docs
• Attributes for photos for retrieval? Location,
  time, settings
• Presentations as a report or trail. Each slide an
  object!

21
(No Transcript)
22
Media center 2
23
stereo
Cassette
Receiver
Wfr
Spkr
Cables/links Speaker 51 Plasma 2 or 3 Cable/Enet
2 IR 8 Stereo 4 5.1 digital 2 Comp./S-video
3 Plasma panel 1 Power 10 Kbd/mse 2 Monitor II
(opt.) 4 Camera 2 Total 42 46 Things
18remotes
stereo
CD
5 speakers
Spkr
IR
stereo Video
VCR
5.1 digital comp.
DVD
stereo Video
Set top
Set top
Cable/ Satellite
Video
5.1 digital
Plasma Panel
Media Center Computer
Ethernet
SVHS-wide
Camera Mic
Video composite or S-video
Kbd
Mse
24
Photos
25
Caneel Bay Vacation Jan. 1998

• Gordon, Gwen, Brig, Pam, Fiona, Bob, Laura and
  Kolbe

26
Searching the most useful app?

• Challenge What questions for useful results?
• Lots of ways to look at what you retrieve
• Need for breaking the returns into segments
• Searching for an indexer and search engine index
  service, Enfish, dtSearch
• Stuff Ive Seen MSRs index search evolving in
  the right direction.
• Productizing would remove the pressure for
  Longhorn

27
(No Transcript)
28
(No Transcript)
29
(No Transcript)
30
Detail view
31
Resource explorerAncestor (collections),
annotations, descendant preview panes turned on
32
Interface to xls
33
(No Transcript)
34
Statistics of use
35
Synchronized timelines with histogram guide
36
Visualization

• Browsing searching. Get me what I wantneed!
• Help the user find things among possible items
  versus
• Waiting for an ideal system that can find what I
  want
• Publication Conventional web, presentations,
  etc.
• Helps understand the nature of the content e.g.
  histogram of objects in time
• Context Links to help understand the
  relationship between objects. Provides more
  search handles.
• Information density what is it? What is its
  relationship to others?
• Content important. Flash and form, less useful.

37
Value of media depends on annotations

• Its just bits until it is annotated

38
System annotations provide base level of value

• Date 7/7/2000

39
Tracking usage even better

• Date 7/7/2000. Opened 30 times, emailed to 10
  people (its valued by the user!)

40
Get the user to say a little something is a big
jump

• Date 7/7/2000. Opened 30 times, emailed to 10
  people. BARC dim sum intern farewell Lunch

41
Getting the user to tell a story is the ultimate
in media value

• A story is a layout in time and space
• Most valuable content (by selection, and by being
  well annotated)
• Stories must include links to any media they use
  (for future navigation/search transclusion).
• Cf MovieMaker Creative Memories PhotoAlbums

We took him to lunch at our favorite Dim Sum
place to say farewell
Dapeng was an intern at BARC for the summer of
2000
At table L-R Dapeng, Gordon, Tom, Jim, Don,
Vicky, Patrick, Jim
42
Value of media depends on annotations
Its just bits until it is annotated

• Auto-annotate whenever possible e.g. GPS cameras
• Make manual annotation as easy as possible. XP
  photo capture, voice, photos with voice, etc
• Support gang annotation
• Make stories easy

43
(No Transcript)
44
MyLifeBits use scenarios

• Acquire everything! (I mean everything!_
• Professional personal use at work!
• Home/personal Provide ambiance entertainment
  using Home Media Center
• Enhancing content through photo and video albums
• Events, places, trips, people, time
  intervals---------- Database land and
  authoring --------
• How I spend my time or an interval of time.
  Recall a trail What was I thinking about?
• Endless need for authoring reporting tools
• ISBQ Interactive Story By Query
• A Person (auto- or -biography web hosted time
  line
• Personal/web/org. hosted collections catalogs

45
The Agenda for the Tbyte(s), Lifetime, PCThe
killer app after office and mail.

• Guarantee that data will live forever! dear
  appy problem
• Cheap, easy, and data-rich (e.g. time, place)
  capture
• GPS and time everywhere
• Paper capture has to be as easy as discard
  (scanner/shredder)
• E-booke-magazines journals need to have
  critical mass!
• Telephony and audio capture with indexing
• Media Center compatible for entertainment
  (photos, video, TV, radio)
• One? dbase for all books, conversations, mail,
  web pages vs. long-term use of hierarchical
  files. Is dbase intuitive?
• Annotations/meta-information add every-increasing
  value
• Ease of annotation because it aids search and
  becomes the content
• Content analysis (critical for photo video!)
• Information control privacy, security,
  expunge/deniability,
• New killer apps alzheimer, immortality,
  surrogate memory?
• Any GUI to improve use (e.g. time to learn, use,
  retention)

46
The End
47
The dear appy problem

• Dear Appy,
• How committed are you? Please come back to me,
  Lost and forgotten data
• Whos responsible?
• media
• platform, file, and databases
• evolving standards and formats
• evolving and/or disappearing apps
•

48
Digitizing our lives

• Right now, it is affordable to buy 100 GB/year
• In 5 years 1TB/year is afforadable!
• Its hard to fill a terabyte/year just by keeping
  what you see or hear, but you can
• Look at 9800 pictures a day (300 KB JPEGs)
• Read 2900 documents a day (1MB files)
• Listening to audio or view compressed video 24
  hours/day (it takes more than 256 kb/s to fill a
  TB in a year)
• Watch 1.5 Mb/s video 4 hours each day.
• As Bush said, we can be profligate and enter
  material freely
