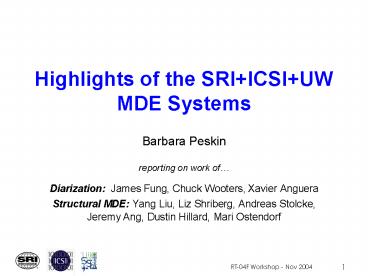

Highlights of the SRI ICSI UW MDE Systems

1
Highlights of the SRIICSIUWMDE Systems

• Barbara Peskin
• reporting on work of
• Diarization James Fung, Chuck Wooters, Xavier
  Anguera
• Structural MDE Yang Liu, Liz Shriberg, Andreas
  Stolcke, Jeremy Ang, Dustin Hillard, Mari
  Ostendorf

2
Overview
The SRIICSIUW team submitted results for all
MDE tasks, domains, conditions

• Diarization
• Starting point IDIAPs speaker segclust system
• New features and explorations
• System pluses and minuses
• Structural MDE
• Starting point Hidden event modeling via HMMs
• Additional model types MaxEnt and CRF
• Some novel extensions, combinations
• Summary

3
Diarization The Basic System

• Based on segmentation and clustering algorithm
  developed by IDIAP (J. Ajmera et al.)
• BIC-like approach but without tweak factor
• Self-regulating by holding total number of model
  parameters constant
• Main steps
• Generate initial segmentation (currently just
  equal-length chopping)
• Train GMM model for each segment
• Decode data using this set of models
• Re-train models using label assignments from
  decoding
• Select closest pair of clusters, x and y, using
  BIC metric maximizing DBIC log P(xy
  lxy) log P(x lx) log P(y ly)
• Train merged model for xy, with comp(xy)
  comp(x) comp(y)
• Iterate 3) -gt 6), stopping when no merge produces
  DBIC ? 0

4
Areas of Exploration

• Very limited development, few changes since last
  years evals
• Main improvement introduced simple
  speech/non-speech filter
• No time to train our own models
• So just used S/NS filter from start of STT
  systems pre-processing
• Simple two-class detector nonspeech includes
  music and silence

Results on Eval04 test set, but using
not-quite-eval system Numbers in ( )s should be
0, probably indicating bug in our frame lt-gt time
conversion
5
Explorations (contd)

• Another (post-eval) improvement modified
  stopping criterion
• Rather than stopping when DBIC thresh 0,
  instead stop when achieve best score from
  decoding stage
• Keeps system threshold-free but now directly
  captures max likelihood of model ensemble
• Other areas of exploration details tomorrow
  include
• Initialization schemes
• Speaker/cluster model types
• Computational efficiencies, pruning

6
System Strengths Weaknesses

• This is a very simple, serviceable, portable
  system
• No thresholds, penalties, etc. that need to be
  re-tuned
• No external training data just uses whats in
  test segments
• Unlike most other systems, this did not break
  when moved to expanded BN space.
  Out-of-the-box performance
• Of course, simplicity is both a strength and a
  weakness
• Does not take advantage of known properties of
  shows (anchors, segment lengths, adverts, ...)
• Does not take advantage of STT models,
  information, integration
• Does not (yet!) rival best systems performance

7
Structural MDE Framework

• Starting point unified approach through Hidden
  Event modeling work (pioneered by Shriberg,
  Stolcke, et al.)
• Language model incl. N-grams, class-based,
  POS-based, repetition-string models
• Prosody model decision tree classifier based on
  100 prosodic features
• Model combination via HMM framework
• This years eval efforts focused on exploring
  additional model types
• Maximum Entropy models
• Conditional Random Fields
• Significant effort also devoted to dealing with
  diverse data sources
• v5 vs v6 vs mapped-v6 data from LDC
• additional unannotated STT sources
• and to combinations and interactions (model
  types, knowledge sources, and cross-task
  DiarizationStructural, STTMDE)

8
The Model Types

• Hidden Markov Model (HMM)
• Good way to optimize at the sequence level (via
  Forward-Backward algorithm)
• But our interpolated LMs do not do good job of
  modeling inter-dependent features, and our models
  are generative rather than discriminative
• Maximum Entropy Model (MaxEnt)
• Accommodates grab-bag of overlapping/non-indt
  features in principled way
• But makes strictly local decisions (modulo
  contextual info in feature set)
• Conditional Random Field (CRF)
• Combines many of advantages of HMM and MaxEnt
• Can accommodate same mix of overlapping features
  as MaxEnt
• While still modeling sequential, rather than
  strictly local, information (optimizes globally
  over whole sequence)
• Basic ref for CRFs Lafferty, McCallum,
  Pereira, Proc. ICML 2001

9
Model Types (contd)

• MANY tasks, domains, conditions! Submitted
  systems for
• (SUBD, EWD, FWD, IPD) x (BN, CTS) x (ref, 2
  STT inputs)
• Sample performance for SUBD task bracketed error
  ignores subtype
• Too many systems and combos to report all!
  More details in tomorrows talk

10
Other System Novelties

• Found that using turn info from diarization
  greatly improves SUBD performance over using info
  from STTs auto segclust
• Evaluated effect of improved STT by comparing
  best STT output (superEARS for BN, IBMSRI for
  CTS), SRI output, and reference words. E.g.
• UW contrast system, examining joint optimization
  of STT and MDE next slide

Sample result using BN ref condition, HMM model
only
again, all scores use mdeval-v17
11
Integrating ASR and MDE Search

• Why? Combined MDE scores based on multiple STT
  hypotheses provide better MDE evidence
• How?
• Detect metadata for multiple ASR hypotheses
• Merge hypotheses (with probability mass) into a
  confusion network
• Results so far
• For earlier HMM-only model error reduced in CTS
  boundary event detection (1 3 absolute
  reduction in slot error rate for SUs and IPs,
  respectively)
• Combining MaxEnt and CRF models, confusion
  networks have less benefit

SU or SU -
-
1
president no-event of
no-event war SU
.2
.12
at
no-event
12
Summary

• The RT-04F Metadata evaluation was a very
  demanding but very interesting exercise 5
  tasks x 2 domains x numerous inputs
• For Diarization
• Demonstrated good basic performance (and
  surprisingly good robustness to expanded BN
  space)
• We have just begun exploring the assumptions of
  our original system and making associated
  improvements
• Speech / nonspeech filtering
• Stopping criterion
• Initializations training iterations
• For Structural MDE
• Explored relative merits (alone in combo) of
  multiple model types and knowledge sources,
  yielding significant reductions in error rates
• Examined effect of STT quality and diarization /
  turn decisions
• Just beginning to reap benefits of joint STT
  MDE optimizations, modeling
