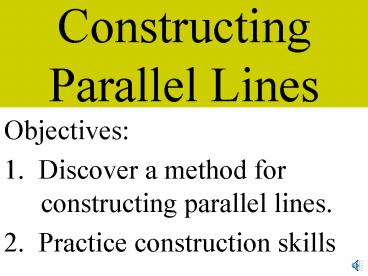

Constructing Parallel Lines

1
Constructing Parallel Lines

• Objectives
• 1. Discover a method for constructing
  parallel lines.
• 2. Practice construction skills

2
parallel lines - lines that lie in the same plane
and do not intersect
3
Which pairs of lines are parallel?

• Not parallel.

1
Not parallel.
2
Parallel.
3
4
Steps for Constructing Parallel Lines

• First, construct line m and point P close to but
  not on line m.

5
1. Construct a perpendicular from point P to
line m. Label the point of intersection Q.
P
m
6
1. Construct a perpendicular from point P to
line m. Label the point of intersection Q.
P
m
Q
7
2. Select point R on line m and construct a
perpendicular ray starting at through point R
perpendicular to line m. Label new ray n.
n
P
m
Q
R
8
3. With you compass, locate point S on line n so
that PQRS.
n
P
S
m
Q
R
9
4. Construct line PS. This line is parallel to
line m.
n
P
S
m
Q
R
