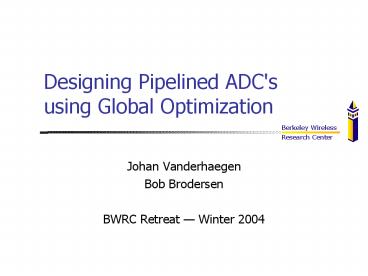

Designing Pipelined ADC's using Global Optimization

1
Designing Pipelined ADC'susing Global
Optimization

• Johan Vanderhaegen
• Bob Brodersen
• BWRC Retreat Winter 2004

2
Outline

• Pipelined ADC
• Global optimization
• Optimization example SC OTA
• Optimization example Pipelined ADC
• Layout Generation

3
Pipelined ADC

• Quantize signal and calculate residue
• Accuracy bottleneck residue amplifier gain
  accuracy
• Speed bottleneck residue amplifier settling
• Design parameter B

4
ADC Design Constraints
5
Outline

• Pipelined ADC
• Global optimization
• Optimization example SC OTA
• Optimization example Pipelined ADC
• Layout Generation

6
Analog Design Automation Approaches

• Knowledge-based Analog Sizing (1980-)
• Procedural design plan
• Heuristic design knowledge hard to capture
• Optimization-based Analog Sizing (1990-)
• Equation based optimization
• Manually derived
• Symbolic analysis
• Simulation based optimization
• Circuits at cell design level
• Behavioral models at higher levels

7
Global Optimization

• Global optimization problem in standard form
• minimize f0(x)
• subject to fi(x) 0 i 1,,m
• hk(x) 0 k 1,,p
• Mapping of analog design constraintsas
  optimization problem
• Minimize power and/or area
• Constraints on performance metrics
• Computationally hard problem

8
Global Optimization

• Reversed Geometric Programming
• minimize g0(x)
• subject to gi(x) 0 i 1,,m
• gj(x) 0 j 1,,n
• Computationally hard problem ?
• But
• we separated the hard and the easy
  constraints
• there are relatively few reversed constraints

convex
9
MOSFET Model (Saturation)
10 error over 3 decades of current
ST 0.13 mm technology
10
Outline

• Pipelined ADC
• Global optimization
• Optimization example SC OTA
• Optimization example Pipelined ADC
• Layout Generation

11
Optimization Example SC OTA
Vpp 1V SNR 74 dB varying fs ST 0.18 µm
technology
12
Optimization Example SC OTA
simulation /- 5
ST 0.18 µm technology
13
Outline

• Pipelined ADC
• Global optimization
• Optimization example SC OTA
• Optimization example Pipelined ADC
• Layout Generation

14
Optimization Pipelined ADC

• Quantize signal and calculate residue
• Accuracy bottleneck residue amplifier gain
  accuracy
• Speed bottleneck residue amplifier settling
• Design parameter B

15
Pipelined ADC - OTA

• High speed
• Low gain
• Nonlinear

Vpp 1V SNR 65 dB varying fs ST 0.13 µm
technology
16
Pipelined ADC - OTA
17
Pipelined ADC
Power efficient designs
18
Outline

• Pipelined ADC
• Global optimization
• Optimization example SC OTA
• Optimization example Pipelined ADC
• Layout Generation

19
Layout Generation
Layout Generation Program
Optimized Schematic
Layout
Device Generation
Component Placement
Routing
NeoCell Module Generators
Cadence Router
Schematic Based Placement
20
Device Generation
Name
Schematic
Layout
Cascode MOSFET
Differential-Pair (Quad-FET)
Differential-Pair (Quad-FET)
21
Component Placement
Hierarchical Schematic
Hierarchical Layout
22
Outline

• Pipelined ADC
• Global optimization
• Optimization example SC OTA
• Optimization example Pipelined ADC
• Layout Generation
