PERFORMANCE ANALYSIS ECE6101

1

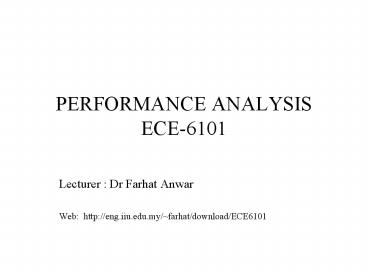

PERFORMANCE ANALYSISECE-6101

• Lecturer Dr Farhat Anwar
• Web http//eng.iiu.edu.my/farhat/download/ECE61
  01

2

• Topics include
• The ratio game
• Mean/ Median/ Mode
• Clustering
• Ch-11 Raj Jain
• Ch-12 Raj Jain

3
The Ratio Game

• If you cant convince them, confuse them.
• Trumans Law
• Based on Mathematical Fact that...
• ... is not equal

4
Graphical Version with

• Percentages are basically ratios. They allow
  playing ratio games in ways that do not look like
  ratios.
• Example Two experiments were repeatedly
  conducted on two systems. Each experiment either
  passes or failed (system either met the specified
  performance goal or did not). The results are
  tabulated in the first two rows of Table 11.8.

5
Graphical Version with

• One alternative to compare the two systems is to
  take each experiment individually, as shown in
  Fig. 11.1a. The conclusion from this figure is
  that System B is better than System A in both
  experiments.
• Another alternative is to add the results of the
  two experiments as shown in the last row of Table
  11.8 and plotted in Figure 11.1b. The conclusion
  in this case is that System A is better than
  System B

6
Graphical Version with

7
Graphical Version with

• Actually both alternatives have the problem of
  incomparable bases.
• In alternative 1, the base is the total number of
  times the experiment is repeated on a system,
  which is different for the two systems.
• In alternative 2, the base is the sum of
  repetitions of the two experiments together,
  which is also different for the two systems.

8
The Ratio Game

• Ratios have a numerator and a denominator.
• The denominator is also called a base
• Two ratios with different bases are not
  comparable.
• Definition
• The technique of using ratios with incomparable
  bases and combining them to ones advantage is
  called ratio game.

9
Consequences/Strategies

• If one system is better on all benchmarks...no
  contradictions.
• Even if one system is better on all benchmarks...
  ratio game leads to better relative number by
  selecting the appropriate base.
• If one system is better in some cases and worse
  in other cases contradictory conclusions can be
  drawn sometimes.
• If the metric is LB (lower better) then use your
  favorite system as a base.
• If the metric is HB (higher better) then use your
  opponents system as a base.
• Benchmarks that perform better should be
  elongated, those that perform worse should be
  shortened.
• Remember Taking an average of a ratio is not a
  correct way to analyze data.

10
A mathematical Analysis.

• Using raw data, System A is better if and only
  if
• Using System A as a base, System A is better if
  and only if
• Using System B as a base, System A is better if
  and only if

11
A mathematical Analysis.

• Both axes in the figure show the relative
  performance of System B with system A as a base.

12
A mathematical Analysis.

• Using raw data, system A is better if and only if
• (ab)/2 gt (axby)/2 or ylt-(a/b)x(ab)/b
• System A is better than System B below the line
  y-(a/b)x(ab)/b and worse above the line.
• Using System A as the base, System A will be
  considered better if and only if
• (xy)/2lt1 or ylt2-x
• The region below the line y2-x represents the
  subspace in which System A will be considered
  better.
• If the measurement fall in the additional area
  (shaded area), System A will be considered worse
  than System B using raw data but will be
  considered better using system A as the base.
• This is one possible region where ratio games
  will lead to contradictory conclusions

13
A mathematical Analysis.

• If System B is used as the base, System A will be
  considered better if and only if
• 1/2(1/x1/y) gt 1 or y lt x/(2x-1)
• This equation represents a hyperbola.
• In the region below this hyperbola, System A
  will be considered better.
• This region covers a bigger area for System A.
• Once again the region above the lines
  corresponding to
• y-(a/b)x(ab)/b and y2-x and below this
  hyperbola represents the subspace in which
  contradictory results will be reached by using
  different bases and raw results.

14
What is wrong in those games?

• Cant take the mean value of ratios!
• How can we fix a good analysis
• Do your homework in statistics...
• Rest of this lecture
• Index - where to look it up
• Walk trough English terminology
• Recipes
• No proofs - no derivations

15
Summarizing Measured Data

• Independent Events
• Two events are called independent event if the
  occurrence of one event does not in any way
  affect the probability of the other event.
• Random Variable
• A variable is called a random variable if it
  takes one of a specified set of values with a
  specified probability.
• Cumulative Distribution Function (cdf)
• The Cumulative Distribution Function (CDF) of a
  random variable maps a given value a to the
  probability of the variable taking a value less
  than or equal to a

16
Summarizing Measured Data

• Probability Density Function (pdf)
• The derivative
• of the CDF F(x) is called the probability
  density function (pdf) of x.
• Given a pdf f(x), the probability of x being in
  the interval (x1, x2) can also be computed by
  integration

17
Summarizing Measured Data

• Probability Mass Function (pmf)
• For discrete random variable, the CDF is not
  continuous and, therefore, not differentiable. In
  such cases, the probability mass function (pmf)
  is used in place of pdf.
• Consider a discrete random variable x that can
  take n distinct values x1,x2,,xn with
  probabilities p1,p2,,pn such that the
  probability of the ith value xi is pi. The pmf
  maps xi to pi
• The probability of x being in the interval
  (x1,x2) can also be computed by summation

18
Summarizing Measured Data

• Probability Mass Function (pmf)
• Mean or Expected Value

19
Summarizing Measured Data

• Variance
• Standard Deviation
• Coefficient of Variation

20
Summarizing Measured Data

• Covariance
• Covariance Symbols
• Correlation Coefficient
• Mean and Variance of Sums
• see Formula in Book

21

• Quantile/Percentile
• Median
• The 50 percentile or 0.5 quantile
• Mode
• Most likely value, that is xi, that has the
  highest probability pi or max of pdf(xi).

22

• Normal Distribution N(µ, ?)
• Standard Normal Distribution N(0,1)
• ?-quantile of Standard Normal Distrib.
• see tables at the end of the book

23
Central Limit Theorem

• The sum of a large number of independent
  observations from any distribution tends to have
  a normal distribution.
• The sum of a normal variate is a normal variate

24
Summarizing Data by a Single Number

• Averages or (indices of central tendencies)
• Sample mean
• Sample median
• Sample mode
• Selecting among them

25

• Examples
• Mode Most used resource in a system.
• Mean Interarrival time of packets.
• Median Load on a computer.
• Median Average configuration (number of devices,
  memory size...).
• Abuses of arithmetic mean
• Significantly different values
• Skewed distribution
• Multiplying means of dependent variables.
• and once more....
• Taking means of ratio with different bases

26
Other means

• Geometric mean
• works also fine for ratios
• equal to exparithmetic mean of logxi).
• very commonly used in benchmarks.

27

• Harmonic mean
• works when 1/x are cumulative.
• work well for rates
• MIPS
• MByte/s
• MFlops

28
Summarizing Variability

• Variability is specified the following measures
  or indices of dispersion
• Range - min...max
• Variance or standard deviation
• 10 and 90-percentile
• semi-interquantile range
• mean absolute deviation

29
Discussion of Variability Indices

• range
• extremely unstable, one outlier and you are gone
• sample variance and sample std.dev.
• only n-1 independent differences
  ,degree of freedom n-1.
• Variances and sample std.dev. Are absolute
  measures.
• Variance has square as a unit.
• C.O.V is normalized by the mean and better
• C.O.V of 5 is bad,
• C.O.V.of 0.2 (or 20) is good.

30
Specifying quantiles

• Definition How much of the distribution density
  is within a certain range.
• 5 - 95 is about equivalent to range.
• Decile, quartiles... fixed quantiles increment
  0.1 or 0.25.
• Semi-Interquartile Range is difference between Q3
  and Q1.
• mean absolute deviation Sort of a Std. Dev. but
  with absolute value instead of square.

31

• Selecting correct index of dispersion

32
Determining the Distribution

• do a quantile/quantile plot
• determine the quantile of the suspected
  distribution
• e.g. for N(0,1) approximation as follows
• Plot it against the quantiles of your
  distribution.
• see if you can match a linear function.

33

• Example Modelling error for 8 predictions of a
  model were found to be yi. Are errors normally
  distributed?

34

• Result Yes, see graphic.
• Normal qualtile-quantile plot for the error data

Residual quantile
Normal quantile
35

• some matches on Figure 12.6 in the book
• Interpretation of normal quantile-quantile plots

36
Clustering

• Take a sample (subset of workload components)
• Select workload parameters
• Transform parameters (e.g. to log)
• Remove outliers
• Scale data (e.g. to µ0, s1)
• Select a distance metric (e.g. euclid)

37

• Do clustering algorithm
• Interpret results
• Change parameters (e.g. number of clusters)
  repeat from step transform.
• Select a representative of each cluster

38
Example Simple Spanning Tree Method

• Consider workload with five components and two
  parameters. The CPU time and number of I/Os were
  measured for five programs.
• For more sophisticated approaches...read an AI or
  IT paper for more (keyword VC dimension).
