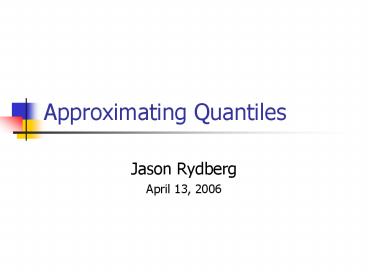

Approximating Quantiles

1
Approximating Quantiles

• Jason Rydberg
• April 13, 2006

2
References

• Approximate Medians and other Quantiles in One
  Pass and with Limited Memory
• Gurmeet Singh Manku, Sridhar Rajagopalan, Bruce
  G. Lindsay
• ACM SIGMOD 98. 1998
• Continuously Maintaining Quantile Summaries of
  the Most Recent N Elements over a Data Stream
• Xuemin Lin, Hongjun Lu, Jian Xu, Jeffrey Xu Yu
• Proceedings of the 20th International Conference
  on Data Engineering. 2004

3
Background

• Quantiles points at specific positions in sorted
  input data.
• In a sequence of N ordered data elements,
  F-quantile is the element with rank .
• Due to memory constraints, quantiles for
  streaming data must be approximated.

4
Approximate Medians and other Quantiles in One
Pass and with Limited Memory

• Algorithm
• Overview
• Levels
• NEW
• COLLAPSE
• OUTPUT
• Example

5
Algorithm Overview

• Inputs
• b number of buffers
• k number of elements per buffer
• New Algorithm
• While there are outstanding elements
• Call NEW and assign the buffer the desired level.
• If b full buffers, call COLLAPSE on the set of
  buffers with level l and assign the output buffer
  level l1
• Finally, call OUTPUT

6
Levels

• Each buffer has an integer, l(X), that identifies
  its level.
• Global integer l is equal to the smallest l(X) of
  full buffers.

7
Levels

• Tree representation of levels

8
NEW

• NEW
• Fills a buffer with the next k elements from the
  input stream. If there are less than k elements
  left, populate the buffer with alternating -8 and
  8 to make the number of elements in the buffer
  equal to k.
• Label the buffer as full.
• Assign the buffer a weight of 1.
• NEW and levels
• If more than one empty buffer, the new buffer has
  level 0.
• Otherwise, the new buffer has level l.

9
COLLAPSE

• COLLAPSE
• Collapses c 2 full buffers (Xi, i1,,c) into a
  buffer Y.
• Weight of Y
• Selecting elements for buffer (naively)
• Duplicate all Xi elements according to weight and
  sort.
• Select jw(Y) offset, for j0,1,,k-1
• Offset is selected according to w(Y)
• w(Y) odd offset
• w(Y) even offset

10
OUTPUT

• OUTPUT
• Similar to COLLAPSE, but outputs the appropriate
  quantile instead of combining buffers.

11
Example

• Data 8, 1, 5, 7, 3, 9, 6, 2, 4, 1, 8, 3
• b 3, k 2
• F 0.5
• 0.5-quantile 3. Actual 0.5-quantile 6

12
Continuously Maintaining Quantile Summaries of
the Most Recent N Elements over a Data Stream

• Two approaches
• n-of-N Algorithm
• Inputs
• EH Partitioning
• Algorithm Overview
• Dropping Sketches
• Querying Quantiles
• LIFT
• Example

13
Two Approaches

• Sliding window model
• Maintains a quantile sketch of the N most
  recently seen elements.
• n-of-N model
• Also maintains a quantile sketch of the N most
  recently seen elements. Unlike sliding window
  model, quantile queries can be issued against any
  n N elements.

14
Inputs

• User inputs
• ? desired accuracy
• N number of elements to maintain quantile
  summaries for
• n number of elements to use for quantile queries
• F desired quantile
• Then, ?

15
EH Partitioning

• Uses buckets to store information.
• Each bucket contains
• Quantile sketch of its earliest data element and
  all successive data elements
• Number of elements added after the earliest data
  element, N.
• Time stamp of the earliest data element
• Maintains, at most, i-buckets

16
Algorithm Overview

• When a new element e arrives at time t
• Create a new sketch
• Record a new 1-bucket with N 0 and timestamp t.
  Initialize a sketch containing e and place it in
  the bucket.
• Drop sketches
• Update sketches
• Add e into each remaining sketch using
  GK-algorithm for -approximation.
• Increase each N by 1.

17
Dropping Sketches

• If the number of 1-buckets is full, then, fromi
  1 to j, if the number of i-buckets
• Find the two oldest buckets, b1 and b2, among the
  i-buckets.
• Drop the newest bucket (assume b2).
• Update b1, so it is an i1-bucket.
• Scan the buckets, beginning with the oldest, and
  delete buckets with Nb N.

18
Querying Quantiles

• Input n r
• Algorithm
• Scan the buckets, beginning with the oldest, and
  find the first bucket b with Nb n.
• Apply the LIFT algorithm, with ??, to Sb to
  generate Slift.
• For rank r, find the first tuple i in Slift such
  that r ?n ri- ri r ?n. Return vi.

19
LIFT

• Input S, ?
• Algorithm
• Initialize Slift to Ø
• For each tuple ai in S
• Update ai by setting ri ri
• Insert ai into Slift
• Return Slift

20
Example

• Input data 12, 10, 11, 10, 1, 10, 11, 9
• ?0.1, N8.
• So, ?0.047619

21
Example
22
Example

• n8, F2/3
• r6, 0
• Slift result
• ((1,1,1),(9,2,2),(10,3,3),(10,4,4),(10,5,5),(11,6,
  6),(11,7,7),(12,8,8))
• 5.2 ri- ri 6.8
• vi 11
• n5, F1/3
• r2, 0
• Slift result
• ((1,1,1),(9,2,2),(10,3,3),(10,4,4),(11,5,5),(11,6,
  6))
• 1.5 ri- ri 2.5
• vi 9

23
Space complexity

• Mankus approach
• n-of-N approach
• For equal N, n-of-N requires more space.

24
Summary

• If all of the data is important, Mankus approach
  is preferable.
• If earlier data elements can become outdated (or
  arent important) or if queries are to be
  executed against a variable number of elements,
  the n-of-N approach should be used.
