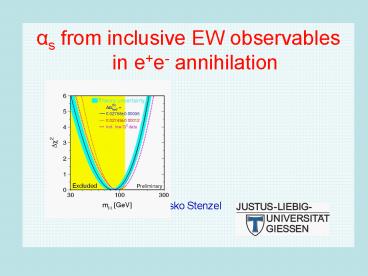

as from inclusive EW observables in ee-
annihilation Hasko Stenzel
2
Outline

• Experimental Input
• measurement
• pseudo-observables
• Determination of as
• fit procedure
• QCD/EW corrections
• Systematic uncertainties
• QCD uncertainties
• experimental/parametric
• Improvements/Outlook

3
Lineshape measurements at LEP

• Measurement of cross sections and asymmetries
  around the Z resonance by the LEP experiments
  ADLO and SLD
• interpretation in terms of pseudo-observables to
  minimize the correlation
• combination of individual measurements and their
  correlation
• inclusion of other relevant EW measurements
  (heavy flavour, mW,mt,...)
• global EW fits to constrain the free parameters
  of the SM ...
• in particular constraints on the mass of the
  Higgs...
• but also determination of as
• Results Phys.Rep. 427 (2006) 257

LEPEWG 2006
PDG 2006
4
Combined lineshape results

• LEP combination of pseudo-observables
• raw experimental input from ADLO converted into
  lineshape observables
• unfolding of QED radiative corrections
• minimize correlation between observables
• determination of experimental correlation matrix

• errors include stat. exp. syst.
• assume here lepton universality
• not a unique choice of observables/assumptions

• Most results dominated by experimental
  uncertainty,
• important common errors are
• LEP energy calibration mZ , GZ, s0had
• Small angle Bhabha scattering s0had
• luminosity

5
From measured cross sections...
Convolution of the EW cross section with QED
radiator
6
... to pseudo-observables
Not independent observable but useful for as
Partial widths and asymmetries are conveniently
parameterised in terms of effective EW couplings
.
7
Partial width in the SM

• g and ? effective complex couplings of fermions
  to Z
• mass effects explicitly embodied for leptons
• QCD corrections for quarks incorporated in the
  radiator Functions RA and Rv
• factorizable EW x QCD corrections in the
  effective couplings
• Non-factorizable EW x QCD corrections

8
Sensitivity of partial widths and POs to as
ratio to as0.1185
u,c
d,s
weak sensitivity for Gl only through O(aas)
corrections
best sensitivity for s0l

• Overall rather weak sensitivity of inclusive EW
  observables to as
• for a 10 change of as a 0.3 change in the
  observables is obtained with respect to a nominal
  value O(as 0.1185)

9
General structure of QCD radiators
NNLO massless
NNLO mq2/s
NLO mq4/s2
LO mq6/s3
In addition the effective EW couplings ? and g
incorporate mixed QCD x EW corrections i.e. O(a
as), O(a as2), O(G F m t2 as)...
10
Radiator dependence on as

• as dependence of the widths dominated by the
  radiator dependence
• Vector part of the radiators identical for all
  flavours, axial-vector part flavour-dependent

11
EW couplings dependence on as
Very weak dependence on as through the mixed
corrections, e.g. running of a
H.Burkhardt, B.Pietrzyk, PRD 72(2005)057501
using here
derived from lower energy annihilation data via
the dispersion integral
12
Impact of higher order corrections

• Three main ingredients of the QCD correction
• the NNLO part
• the quark mass corrections
• the mixed QCD x EW terms
• What is their
• relative impact?

13
Global EW fits
Free parameters of the SM fits with ZFITTER /
TOPAZ0

• ?a2had(mZ2)
• as(mZ2)
• mZ
• mt
• mH

• experimental input
• lineshape measurements
• ?a2had(mZ2)
• asymmetry parameters
• heavy flavour measurements
• top W mass
• 18 inputs, high Q2-set

Fit results ?2/Ndof 18.3/13 w/o
common systematic errors no QCD!
14
Fit results SM consistency
15
Sensitivity to the Higgs Mass
16
EW fit result for the Higgs Mass

• Claim
• Theory uncertainty for Higgs does not include QCD
  uncertainties
• these are absorbed into the value of as
• Purpose for the rest of this talk
• evaluate QCD uncertainties

17
QCD uncertainties for as from EW observables

• Implementation of the renormalisation scale
  dependence in ZFITTER
• running of as(µ)
• running of the quark masses
• explicit scale terms in the expansion

H.S., JHEP07 (2005) 013
18
Scale dependence for radiators and couplings
QCD Radiators
EW couplings
19
Scale dependence for the Pseudo-observables
partial widths
Evaluation of the PT uncertainty for the POs
scale variation
Range of variation purely conventional, but
widely used.
pseudo-observables
Uncertainty for observable O defined as
Typical uncertainty 0.5 Depends obviously on
as .
20
dependence of the PO uncertainty on as
Increase of the observables uncertainty by a
factor of 2 for 0.11 lt aslt0.13
21
Evaluation of uncertainty for as as obtained from
an EW observable

• Technique based on the uncertainty-band Method
• Evaluate the observable O for a given value of as
• calculate the PT uncertainties for O using xµ
  scale variation at given as
• the change of O under xµ can also be obtained by
  a variation of as
• the corresponding variation range for asis
  assigned as systematic uncertainty

Uncertainty band method R.W.L. Jones et al.,
JHEP12 (2003) 007
22
Uncertainty for as from EW observables
For as0.119 the uncertainty is 0.0010-0.0012
Strategy adopted by LEPEWG calculate QCD
uncertainty of the observables in the covariance
matrix included in the fit. Result
?as0.0010
23
Best strategy for as
24
Conclusion

• Wealth of electroweak data from LEP and elsewhere
  allows
• for precision measurements of Standard Model
  parameters
• Constraints of the Higgs mass (upper limit)
• Indirect determinations of mW and mt
• precision measurement of as
• consistency tests of the SM
• For as from EW observables the QCD uncertainty
  has been
• determined to 0.0010, compared to
• as0.1188 0.0027 (exp) 0.0010 (QCD)
• An outstanding verification is expected from
  event-shapes at
• LEP and NNLO calculations for differential
  distributions,
• where an experimental uncertainty of 1 is
  achieved.
