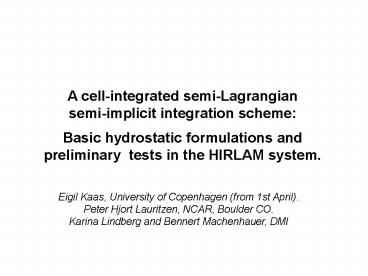

A cell-integrated semi-Lagrangian semi-implicit
integration scheme Basic hydrostatic
formulations and preliminary tests in the HIRLAM
system.
Eigil Kaas, University of Copenhagen (from 1st
April). Peter Hjort Lauritzen, NCAR, Boulder
CO. Karina Lindberg and Bennert Machenhauer, DMI
2
LAURITZEN, P.H., KAAS, E., MACHENHAUER, B.
(2006). A mass-conservative semi-implicit,
semi-Lagrangian limited-area shallow water model
on the sphere. Mon. Wea. Rev., 134 (4), 11961212.
LAURITZEN, P.H., LINDBERG, K., KAAS, K.,
MACHENHAUER, B. (2006b). A locally
massconservative Semi-Lagrangian, Semi-implicit,
Limited-Area Gridpoint Model of the Primitive
Equations. Part I Forecast Model. Mon. Wea.
Rev., in prep.
3
To show up in Handbook on Numerical Analysis.
Elsevier
4

• Motivations for development of the new scheme
• Inherent local mass conservation
• Avoid CFL criterion
• High order of accuracy and shape conservation
• More consistent estimate of the vertical velocity
  and the energy conversion term
• Applications
• Improved synoptic scale weather forecasting
• Consistent/improved transport of multiple tracers
  incl. cloud constituents i.e. avoid the
  wind-mass inconsistency in off-line tracer
  models.
• General applications in fully integrated
  meteorological / chemistry models

5
Flux form formulation of the continuity equation
with
6
Time and space discretisation
7
DCISL (Departure Cell-Integrated Semi-Lagrangian
scheme)
8

• Different variants of CISL or finite volume
  schemes
• Traditional operator splitted flux based schemes
  (e.g. Bott (1989, 1992))
• Conservative operator splitted schemes also
  conserving a constant in a non-divergent flow
  (e.g. Lin and Rood (1996), Lin (2004), Leonard
  (1996), Adcroft et al. (2005))
• Non-split flux based schemes (e.g. Holm (1995))
• Lagrangian type (DCISL) schemes (Rancic, (1990),
  Machenhauer and Olk (1997), Nair and Machenhauer
  (2002), Lauritzen et al. (2006), Zerroukat et al.
  (2002).
• The CFL problem or not !

9
DCISL (Nair and Machenhauer (2002)
10
(No Transcript)
11
Equations of motion. Primitive equations with
standard ?(p,ps) vertical coordinate
12
(No Transcript)
13
Continuity equation, vertical winds, trajectories
and vertical remappings
Horizontal accelerations taken into account in
estimation of horizontal trajectories
14
Staggered hybryd sigma p vertical coordinate
(SIMMONS and BURRIDGE 1981)
15
Semi-implicit formulation
16
The semi-implicit formulation of DCISL (1)
CISL explicit forecast
Ideal semi-implicit CISL forecast
Elliptic equation too complicated !
17
The semi-implicit formulation of DCISL (2)
The most direct approach
Inconsistent !
18
Various options in the new dynamical core
Consistent omega in thermodynamic equation
(COP) Accuracy of horizontal trajectories and
extrapolation filters Application of filters on
upstream representation (monotonicity, positive
definiteness). Cascade interpolation as e.g. in
Nair et al. (2002) (CASC) Modification of
vertical diffusion (VDIFF). General tuning of
physics.
19
Case study 18 hour forecast valid on 3th
December 1999 (extratropical storm over Denmark)
20
Observed
21
HIRLAM
22
CISL
23
CISL - CO
24
CISL - COP - CASC
25
CISL - COP - CASC, 0.1vdiff on all variables
26
CISL - COP - CASC, 0.1vdiff on T and winds
27
CISL - COP - CASC, 0.1vdiff on q only
28
HIRLAM
29
CISL
30
CISL - COP - CASC
31
CISL - COP - CASC, 0.1vdiff on all variables
32
CISL - COP - CASC, 0.1vdiff on T and winds
33
CISL - COP - CASC, 0.1vdiff on q only
34

• A new hydrostatic dynamical core of HIRLAM has
  been developed
• High order of accuracy.
• It is possible to apply possitive definite and
  monotonic filters.
• The departure area is defined with high accuracy,
  i.e. high degree of local mass conservation
• It is generally possible to use long time steps,
  i.e. no CFL criterion
• Non-hydrostatic version should be possible to
  formulate
• Tuning of vertical diffusion needed (the scheme
  seems to have very little inherent numerical
  dispersion)
• Disadvantages of DCISL schemes
• The degree of conservation of a constant field in
  a non-divergent flow depends critically on the
  accuracy of the calculation of trajectories.
• To do
• Tuning of vertical diffusion optimise the code
  test the different options.
• Formulate conservation of enstrophy and total
  energy

35
