Title: Cooperation Possibilities for


1

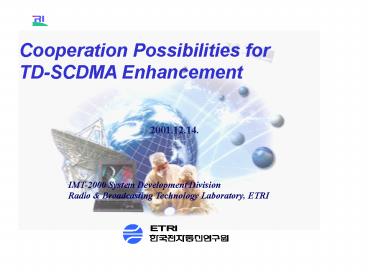

Cooperation Possibilities for TD-SCDMA
Enhancement
2001.12.14.
IMT-2000 System Development Division Radio
Broadcasting Technology Laboratory, ETRI
2
Contents
  • Introduction
  • Achievements in TDD
  • TDD modem simulator
  • Packet Transmission
  • Performance improvement of Wideband TDD by Smart
    antenna and MUD
  • System-level simulator/interference simulator
  • RRM
  • Future works in TDD
  • Core technology of TD-SCDMA
  • Future Possible Co-operation

3
  • Introduction
  • TDD in Korea
  • Major Difference between FDD and TDD

4
Current status of TDD in Korea
  • RD history on TDD mode
  • There was no research activity for TDD mode in
    Korea until 2000.
  • We have been under way of the 2 years TDD
    project from 2000.7.
  • Mainly focused on RD of the core technology of
    TDD mode
  • Preparation for the FDD/TDD dual mode handset
    development after 2002.
  • Funded by government, 2 operators and 3
    manufacturers.
  • SK IMT, KT ICOM
  • LG IC, SAWNET, Giga CE
  • Major research area
  • Implement Floating-point simulator for TDD
    physical layer.
  • High-Speed Packet transmission technology
  • Performance enhancement (MUD, SA, Power Control
    .)
  • Radio resource management

5
Major Difference between FDD and TDD
6
  • Achievements in TDD
  • TDD modem simulator
  • H-ARQ
  • Performance Enhancement by Smart Antenna
  • Mitigation of Interference by MUD
  • System-level simulator
  • Interference simulator
  • RRM

7
TDD Modem simulator
  • Block Diagram of TDD modem simulator
  • Rel. 4
  • 1 sample/ chip
  • Include Multiple user
  • Fixed searcher mode
  • Documentation of High Level Design for Future
    Commercial TDD modem
  • Future Integration
  • AFC/AGC
  • Interference Mitigation technologies

8
Improved Channel Estimation
  • Investigate the current Channel estimations in
    TDD mode
  • Cyclic correlator/ Matched filter/ FFT based
    estimator
  • Problem
  • When fast fading, they show degraded performance
    due to Random FM.
  • Proposed Channel Estimator to use data part

9
Initial Cell Acquisition and AFC in TDD mode
  • Initial Cell Acquisition
  • Target minimum cell acquisition time with low
    complexity
  • Investigated the performance by conventional
    method
  • Need more time and hardware to acquire the system
    due to Infrequent transmission of sync code
  • Propose an improved cell acquisition algorithm to
    reduce the acquisition time
  • AFC
  • Target minimum acquisition time with small
    variance
  • Investigated the performance by conventional
    method (Cross-product, DFT) in TDD mode
  • Degraded performance and more acquisition time
    compared to FDD mode due to midamble location and
    discrete transmission of midamble
  • Under investigation of novel algorithm for the
    discrete transmission of reference signal to
    minimize the acquisition time.

10
H-ARQ technology
  • Target Improved throughput with low delay and
    complexity
  • Investigate and conclude the current H-ARQ
    schemes based on Turbo code
  • Full IR gt Partial IR gt Chase CombininggtNo H-ARQ
  • Propose Novel Adaptive H-ARQ

11
H-ARQ technology
  • Results of Propose Adaptive H-ARQ
  • Improved adaptation to fast fading variation
    compared to conventional H-ARQ with fixed code
    rate.
  • When we use this technique with Chase Combining
    with lowest complexity among H-ARQ, it shows the
    closer performance as Full IR.

12
Performance Enhancement by Smart Antenna
  • Key features of ETRIs Smart Antenna system
  • Chip Level Beamforming scheme
  • Beamforming is conducted before despreading, it
    gives better performances over Symbol Level
    Beamforming.
  • Low complexity and low power consumption than in
    SL BF-based array transceiver
  • Temporal Reference Beamforming scheme
  • Use the user specific midamble code as the
    reference signal
  • Open loop type S-T array transceiver structure
  • Subspace beamforming is proposed for downlink
    beamforming
  • JD (Joint Detection) for co-located users
  • performance improvement by beamforming and joint
    detection

13
Performance Enhancement by Smart Antenna
  • Model example of TDD S-T array transceiver
  • MMSE BF-based in Uplink

14
Performance Enhancement by Smart Antenna
  • Enhanced hybrid system with SA and JD in TDD

15
Interference Mitigation by MUD
  • Joint Detection
  • Zero Forcing-Block Linear Equalizer with/without
    DF
  • MMSE-Block Linear Equalizer with/without DF
  • Multi-step PIC
  • Use Virtual Pilot and Channel ordering and
    improved Channel estimation

16
System level simulator
  • Design and Implement the system level simulator
    based on TDD mode
  • Strictly follow ITU-R and 3GPP recommendations
    including WWW traffic model
  • Use FER prediction to reflect the link-level
    results into the simulator
  • Very suitable for the evaluation of packet
    traffic and RRM

17
System level simulator
  • Basic element of System level simulator

18
Interference simulator
  • Interferences in TDD system
  • Interference from adjacent slots of different
    NodeB due to Synchronization Error
  • Interference from different links on the same
    Timeslot due to different switching point
  • Design and Implement the Interference simulator
    in TDD system

19
Radio Resource Management
  • RRM is essential part in TDD system due to
    asymmetric and/or changing data services
  • Fast DCA
  • Adaptive code bank management from the knowledge
    of interference and available code.
  • Slow DCA
  • Adaptive Timeslot allocation scheme when there
    are different switching point between NodeBs

20
  • Future works in TDD

21
Future Work Items
  • Implement Floating-point TDD Modem simulator
  • AFC/AGC
  • Uplink Random Access
  • Packet Transmission
  • AMC, H-ARQ, and FCS suitable to channel variation
  • MIMO based Packet transmission
  • Performance Enhancement
  • Smart Antenna to exploit channel reciprocity
  • Enhanced MUD
  • Hybrid system with Smart Antenna and MUD
  • Optimum Combining
  • Optimum Tx Diversity with Power allocation scheme
  • MIMO based system

22
Future Work Items
  • RRM
  • Enhanced system-level simulator to include FCS
    and AMC
  • Interference evaluation between different
    systems to get optimum guard band and range
  • Packet Scheduler

23
  • Future Cooperation
  • Difference between two TDD modes
  • Cooperative area and way

24
Difference between Two TDD modes
25
Difference between Two TDD modes
26
Cooperative area and way
  • Cooperative area
  • Performance enhancement technology
  • Smart antenna and MUD or Hybrid system
  • Tx Diversity
  • Enhanced capability based on MIMO technology
  • Packet related issues
  • AMC/FCS/H-ARQ
  • Packet scheduler
  • Optimum Spreading code in Uplink and Downlink
  • Generation of spreading codes for lowering
    inter-cell interferences
  • Utilization method of chosen spreading codes
    suited for enhanced TDD-based CDMA systems
  • Cooperative way
  • Joint Project or conference
  • Engineer Exchange Program
  • Cooperation for standardization
