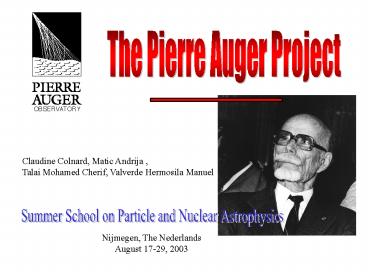

The Pierre Auger Project
Claudine Colnard, Matic Andrija , Talai Mohamed
Cherif, Valverde Hermosila Manuel
Summer School on Particle and Nuclear Astrophysics
Nijmegen, The Nederlands August 17-29, 2003
2
What we "know" about Ultra High Energy cosmic Rays

Observed spectrum above eV


Evidence for Utra High Energy Cosmic Rays gt GZK
cut-off ?
3
What we do not know (but would like to )

• Where does the spectrum end?
• Primary nature (composition)?
• Nucleus, proton?
• Are there gamma rays or neutrinos?
• What is the source of UHECR?
• Bottom-Up or Top-Down scenario?

Pierre Auger Observatory
A Study of The Highest Energy Cosmic Rays 1019 -
1021 eV Energy Spectrum - Direction - Composition
4
Auger Philosophy
Uniform sky coverage 2 sites located in each
hemisphere Argentina, USA need high
statistics large detection surface 2?3000
km² Hybrid detector - fluorescence detector -
surface array (water Cerenkov tanks)
Good energy and direction resolution Good
sensitivity to composition
5
Auger Southern Site

• Argentina Pampa Amarilla, Mendoza
• 35o S latitude
• 69o W longitude
• 1.4 km altitude
• 875 g/cm2
• Low population density (lt 0.1 / km2), Pampa
  amarilla
• Favourable atmospheric conditions (clouds,
  rain, light, aerosol)

6
The hybrid detector
300- 400 nm light from fluorescence of
atmospheric nitrogen

• Fluorescence Detector
• Longitudinal development
• Intensity E
• Duty cycle 10-15
• (moonless and cloudless nights)

• Surface Detector
• Shower size E
• Time direction
• Duty cycle 100

7
The Observatory
3000 km2 covered aperture 7400 km2 .sr
Fluorescence detectors 4 peripheral eyes (6
telescopes each) 11000 PMTs
Surface detectors 1600 Cerenkov tanks 1.5 Km
spacing 4800 PMTs

Wireless RF Communication system
65 km
8
Why a hybrid detector?
The same cosmic ray shower is measured by two
independent detector systems
Cross calibration - complementary measure of the
energy and direction of the primary - allows for
redundancy cheks of interesting events - allows
to study (and reduce) systematics Increase
composition sensitivity Uniform
exposure Hadronic cascades - muon and
electromagnetic densities combined with the
longitudinal profile put constraints on the
hadronic interaction models Cost - cost per
event is lower than a stereo fluorescence
detector design
9
The Auger Surface Detector
Water Cerenkov tank Polyethylene tank 10 m2 x
1.2 m of purified water, diffusing walls 3 PMTs
Photonis 9 Autonomous unit solar
panelbattery, GPS timing, communication
antenna modest power consumption (10 W)
Commantenna
Solar panel and electronic box
GPSantenna
Three 8 PM Tubes
Battery box
White light diffusing liner
12 m2 of de-ionized water
Plastic tank
10
The FD telescope

• Schmidt optics (eliminates coma) Spherical
  mirror Rcurv 3.4 m
  2.2 m diameter diaphragm, corrector ring,

• 30o x 30o aperture spot size
  from spherical aberration 15 mm
• Focal surface 20 x 22 hexagonal
  PMT (Photonis XP3062) Pixel angular size
  1.5o (45 mm)

Diaphragm, UV Filter, Corrector ring
Spherical mirror
PMT camera
11
High statisitcs
1 Auger year 30 AGASA, 10 Hires years
5000 events/year E gt 1019 eV 500
events/year E gt 5x1019 eV 50
- 100 events/year E gt 1020 eV
Expected rates
Sky above after 3 years
Spectrum after 20 months
15 sources of equal densities randomly distributed
Efficiency gt 90 (Egt10 Eev)
12
Performances
Energy resolution
Array
alone Hybrid mode 100 Eev 15
10 10 Eev 30
20
Angular resolution
Array
alone Hybrid mode 100 Eev 0.5º
0.20º 10 Eev 1º
0.35º
13
The Auger Collaboration

• Argentina Italy
• Australia Mexico
• Bolivia Poland
• Brazil Russia
• Czech Republic Slovenia
• Peoples Republic of China Spain
• France United Kingdom
• Germany USA
• Greece Vietnam
• 50 Institutions, gt250 Scientists

14
Costs and Funding

• South 54M US
• North 46M US
• Total 100M US
• In kind contributions 80
• Detector Components
• Infrastructure (host countries)
• Common Fund 20
• Photomultiplier tubes
• Site buildings

15
Status

• The Auger southern site is now under
  construction.
• 40 surface detectors over 40 km2
• 2 fluorescence telescopes (Los Leones,
  Coihueco)
• In 2003 installation and commissioning of 12 FD
  telescopes and 500 additional tanks
• Southern site to be completed by 2005
• Construction of the Auger northern detector will
  begin in 2 to 3 years.

16
First giant airshower
hit 20 out of the 30 active surface detectors on
May 23rd 2002
17
Summary

• Auger Project has some exciting science.
• Strong collaboration organized.
• Thirty of the surface detectors equipped with
  electronics have worked under stable conditions
  since January 2002
• More than 70 air showers detected in hybrid mode

• A few hundreds of events with estimated energies
  above 1 EeV (1018 eV) observed by the surface
  array alone.

18
Systematics in the Pierre Auger Observatory

• Bruce Dawson
• University of Adelaidefor the Pierre Auger
  Observatory Collaboration

19
Introduction

• Fluorescence - a technique with great rewards,
  but a lot of work required!
• Will concentrate on energy measurement (e.g.
  composition has an additional set of systematics)
• All good experiments build in CROSS-CHECKS, Auger
  no exception. Clearly, most important
  cross-check is the Hybrid nature of Auger, but
  many others.

20
The Observatory

• Mendoza Province, Argentina
• 3000 km2, 875 g cm-2
• 1600 water Cherenkov detectors 1.5 km grid
• 4 fluorescence eyes -total of 24 telescopes each
  with 30o x 30o FOV

65 km
21
Engineering Array
22
Simulated Hybrid Aperture
Stereo Efficiency
Hybrid TriggerEfficiency
23
Hybrid Reconstruction Quality
Statistical errors only!
statisticalerrors only
zenith angles lt 60O

• 68 error bounds given
• detector is optimized for 1019eV, but good Hybrid
  reconstruction quality at lower energy

24
Steps to good energy reconstruction

• Geometry
• Calibration atmosphere and optical
• Analysis
• Light collection
• Cherenkov subtraction
• Fitting function
• Missing energy
• Fluorescence yield

25
Geometry Reconstruction

• eye determines plane containing EAS axis and eye
• plane normal vector known to an accuracy of
  0.2o
• to extract Rp and y, eye needs to measure angular
  velocity w and its time derivative dw/dt
• but difficult to get dw/dt, leads to degeneracy
  in (Rp,y)
• degeneracy broken with measurement of shower
  front arrival time at one or more points on the
  ground
• eg at SD water tank positions

26
Geometry Reconstruction

• Simulations at 1019eV
• Reconstruct impact parameter Rp. Dramatic
  improvement with Hybrid reconstruction

(Will check with stereo events)
27
Atmosphere Systematics

• light transmission corrections(Rayleigh and
  aerosol scattering)AIM know corrections to
  better than 10
• air density profile with height(mapping height
  to depth Rayleigh scattering)AIM know
  overburden at a given height to better than 15
  g/cm2

28
Distance from pixels to track
MC 1019eV events over full arrayClosest
triggering eye
29
(No Transcript)
30
VARIABLE !!
31

• Horizontal attenuation monitors (50km)
• Steerable LIDARs - total optical depth
• Vertical lasers near centre of array - vertical
  distribution of aerosols
• Cross-checks

32
Aerosol measurements
(John Matthews ICRC 2001)
33
LIDAR System
34
LIDAR System
Tests near Torino
System at Los Leones
35
Some simulations

• Simulations 1000 1019eV showers landing within
  Auger full array. Generate with fixed aerosol
  parameters
• horizontal attenuation length (334nm) al 25
  km
• scale height of aerosol layer
  ha 1.0 km
• height of mixing layer hm 0 km
• First, reconstruct events with different aerosol
  assumptions

36
Dependence on Aerosol Parameters

• (generated with al25km, ha1.0km, hm0km)
• reconstruct with 19km 1.0km
  0km DE/E 8 DXmax 7 g/cm2
• reconstruct with 40km 1.0km
  0km DE/E -9 DXmax -9 g/cm2
• reconstruct with 25km 2.0km
  0km DE/E 10 DXmax -2 g/cm2
• reconstruct with 25km 1.0km
  0.5km DE/E 12 DXmax 8 g/cm2

37
Atmosphere Density Profile

• Density profile of atmosphere determines mapping
  from height to depth, and Rayleigh scattering
• MC generated with vertical overburden 873
  g/cm2and one of the US Standard Atmospheres.
  Will maintain scale height.
• reconstruct with vertical overburden 900
  g/cm2 DE/E 2.2 DXmax 19
  g/cm2
• reconstruct with vertical overburden 845
  g/cm2 DE/E - 3.3 DXmax - 19
  g/cm2

38
Radiosonde

• Balloon-borne radiosondes are planned to monitor
  the atmospheres density and temperature
  profile
• First flight in August 2002 at Malargue.
• A series of flights in the austral spring,
  summer, winter and autumn will determine the
  suitability of re-scaled standard atmospheres,
  and variability.

39
Optical Calibration
40
(No Transcript)
41
Drum Calibration

• 375nm LEDs
• NIST calibrated Silicon detector
• uniformly illuminates aperture with full range of
  incoming angles
• in future will also use range of colours
• absolute calib to 7 now, hope to improve to 5

42
Relative calibration Xenon
43
(No Transcript)
44
Laser shots at 3km - cross check on absolute
calibration
and also are checking with piece by piece
calibration.
45
Reconstruction
46
UV-Filter 300-400 nm
installed at Los Leones (Malargüe) and taking data
11 m2 mirror
camera440 PMTs
corrector lens
47
No coma, good light collection
48
Hybridevent.Dec 2001- March2002
49
Light Flux at Camera
optical spot 0.5 deg diam

• Aim to collect all signal without too much noise
  or multiple scattered light.
• Effect of multiple scattered light? Halo?
• currently a 10-15 systematic, is being studied

50
REAL event
51
Dependence on Cherenkov Yield

• MC generated with nominal Cherenkov yield
• (easy calculation if you know the density profile
  of atmosphere and the energy spectrum of
  electrons)
• reconstruct with Cherenkov yield up by 30
  DE/E - 4.8 DXmax - 9 g/cm2
• reconstruct with Cherenkov yield reduced by
  30 DE/E 5.3 DXmax 9 g/cm2
• (These are averages. Clearly, the error for each
  event depends on its geometry).

52
CORSIKA Check
53
Cherenkov correction

• clearly depends on more than yield calculation,
  also
• atmospheric scattering
• geometry
• important problem that needs study, since all
  events have some contamination
• stereo will be an important aid

54
PRELIMINARY
shower size (arb units)
55
PRELIMINARY
shower size (arb units)
56
Profile
T. Abu-Zayyad et al Astropart. Phys. 16, 1 (2001)
57
Missing energy correction

• unavoidable 5 systematic
• currently being checked with new CORSIKA

Ecal calorimetric energyE0 true energy from
C.Song et al. Astropart Phys (2000)
58
Conclusion

• cant provide an error budget now - many of the
  systematics are under study, and we need real
  (stereo) data to study many of them
• have indicated our goals in terms of two major
  players - the atmosphere (10) and optical
  calibration (5). These must be obtained early.
• cross-checks are vital
• then there is the fluorescence yield

59
The Auger Observatoryfor High-Energy Cosmic
Rays
G.Matthiae University of Roma II and INFN For the
Pierre Auger Collaboration

• The physics case
• Pierre Auger Observatory - hybrid system
  Surface and Fluorescence Detectors
• The Engineering Array - first results

60
The physics case

• Evidence for Ultra High Energy
  Cosmic Rays gt GZK cutoff

• Quest for nearby sources (lt50 Mpc)
• Production-acceleration mechanisms?
• Challenging rate
• 1 / km2 / sr / century above 1020 eV!

Auger will measure the properties of the highest
energy cosmic rays with unprecedented precision
61
The Pierre Auger Observatory

• A world-wide Collaboration
• Full sky coverage two Observatories (North and
  South) (Malargue, Argentina, approved and
  financed, under construction)
• Hybrid detector concept The same cosmic ray
  shower is measured by two independent detector
  systems
  Cross-calibration, improved resolution, control
  of systematic errors
• Large scale detector
• Giant array of 1600 Cherenkov tanks, covering
  3000 km2 ,
• 24 Fluorescence Detector telescopes

• 1 Auger year 30 AGASA, 10 Hires
  years

62
Malargue, Argentina
35o S latitude 69o W longitude 1.4 km
altitude 875 g/cm2

• Low population density (lt 0.1 / km2), Pampa
  amarilla
• Favourable atmospheric conditions (clouds, rain,
  light, aerosol)

63
The hybrid concept
300- 400 nm light from fluorescence of
atmospheric nitrogen

• Fluorescence Detector
• Longitudinal development
• Time direction

• Surface Detector
• Shower size E
• Time direction

64
The Observatory

• 3000 km2 covered
• aperture 7400 km2 sr

• FD (4 peripheral eyes, 6 telescopes each)
  11000 PMTs
• 1600 SD Cherenkov tanks (spacing 1.5 km)
  4800 PMTs

Wireless RF Communication system
65
Performances

• Expected rates

5000 events/year E gt 1019 eV 500
events/year E gt 5x1019 eV 50 -
100 events/year E gt 1020 eV
FD duty cycle 12 15
Fraction of stereo FD

• Shower reconstruction

• ?E/E lt 10
• Direction lt 1o
• Ground impact point lt 50 m
• Xmax lt 20 g/cm2

2,3,4
2
4
3

66
Hybrid vs. Surface Detector
1019 eV 1020 eV
67
First hybrid event FD on line display
68
Shower longitudinal development
atmospheric corrections, FD pixel calibration,
fluorescence yield, Gaisser-Hillas fit
E 1.5 x 1019eV, Smax 1.0 x 1010,
Xmax 746 g/cm2
E 1.3 x 1019eV, Smax 9.2 x 109,
Xmax 670 g/cm2
particle number (107)
atmospheric depth (g/cm2)
atmospheric depth (g/cm2)
Preliminary energy estimates!
69
(No Transcript)
70
Preliminary energy estimate
71
Management Organization
