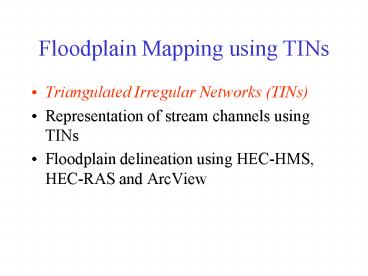

Floodplain Mapping using TINs

1
Floodplain Mapping using TINs

• Triangulated Irregular Networks (TINs)
• Representation of stream channels using TINs
• Floodplain delineation using HEC-HMS, HEC-RAS and
  ArcView

2
TIN with Surface Features
Classroom
UT Football Stadium
Waller Creek
3
A Portion of the TIN
4
Input Data for this Portion
Mass Points
Soft Breaklines
Hard Breaklines
5
TIN Vertices and Triangles
6
TIN Surface Model
Waller Creek
Street and Bridge
7
3-D Scene
8
3-D Scene with Buildings
9
Floodplain Mapping using TINs

• Triangulated Irregular Networks (TINs)
• Representation of stream channels using TINs
• Floodplain delineation using HEC-HMS, HEC-RAS and
  ArcView

10
River Modeling

• River hydraulic modeling provides a tool to study
  and gain understanding of hydraulic flow
  phenomena
• Topographic data describe the geometry of the
  simulated river system and permit the
  establishment of model topology
• HEC-RAS, MIKE 11 all hydraulic models require
  channel information for model development

11
River Morphology
12
Flood Inundation
13
Floodplain Delineation
14
Floodplain Delineation
15
Channel and Cross-Section
16
ProfileLines
Types 1- Thalweg 2- LeftBank 3- RightBank 4-
LeftFloodLine 5- RightFloodLine
ProfileLines and CrossSections are linked through
Channel_ID
17
TIN as a source of cross-sections
18
CrossSections
19
Floodplain Mapping using TINs

• Triangulated Irregular Networks (TINs)
• Representation of stream channels using TINs
• Floodplain delineation using HEC-HMS, HEC-RAS
  and ArcView

20
Floodplain Mapping Approach
HEC-GeoHMS
HEC-GeoRas
ArcView
21
Purpose

• Integrate/Validate existing tools for floodplain
  determination and visualization.
• Reduce the dependence on field data.
• Improve the floodplain analyses capabilities
  (lower costs and more accuracy).

22
Digital Spatial Data

• Digital elevation
• model (DEM).
• Stream definition.

HEC-RAS
HEC-HMS
ArcView
23
CRWR-PrePro

• Watershed delineation.
• Reach/Watershed
• parameters determination.

HEC-RAS
HEC-HMS
ArcView
24
HEC-HMS Flow Determination
25
HMS-RAS Connection
HMS Junctions
RAS Cross-sections
26
HMS-RAS Connection
HMS Hydrograph
RAS Flow Data
(0500, 3559.6)
27
Digital Terrain Model TIN

• Observed points and
• breaklines for
• constructing a
• triangular irregular
• network (TIN).

28
Digital Terrain Model TIN
29
GIS-RAS Connection

• Stream centerline.
• Banks.
• Flow paths.
• Cross sections.

30
GIS-RAS Connection

• Location of cross
• sections.

31
Hydraulic Modeling with HEC-RAS

• Cross-section extracted
• from the TIN.

• RAS stream geometry.

HEC-RAS
HEC-HMS
ArcView
32
Hydraulic Modeling with HEC-RAS

• Resulting water
• elevations.

HEC-RAS
HEC-HMS
ArcView
33
Floodplain Mapping

• Floodplain for
• 500 cfs.

HEC-RAS
HEC-HMS
ArcView
34
Floodplain Mapping

• 2-D floodplain
• animation
• (500 5,000 cfs).

35
Floodplain Mapping

• 3-D floodplain
• animation.

36
Limitations

• Bridges/culverts
• - depend on
• field data.
• - data input
• by hand.

37
Limitations

• The accuracy
• obtained from
• our TIN is not
• good enough.

38
Solutions

• New technologies
• (i.e. LADAR) are
• improving the
• quality of the
• digital terrain
• representations.

• New technologies
• (i.e. LIDAR) are
• improving the
• quality of the
• digital terrain
• representations.

Source digital representation of NYC generated
by ASI and published by ESRI.
39
Michael Schultz NWS River Forecast Center Fort
Worth, Texas 1998 Guadalupe Flood
40
(No Transcript)
41
Cross-Sections developed using HEC-GeoRAS
and National Elevation Dataset
42
Hydrologic simulation Using NWS Fldwav model
