Title: MapServer Support for Web Coverage Services


1

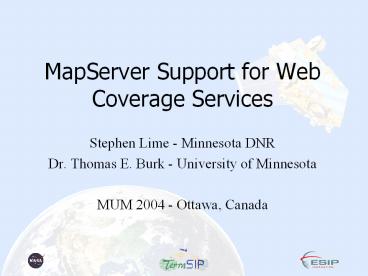

MapServer Support for Web Coverage Services
  • Stephen Lime - Minnesota DNR
  • Dr. Thomas E. Burk - University of Minnesota
  • MUM 2004 - Ottawa, Canada

2
Presentation Overview
  • Background
  • Implementation
  • Usage
  • Demo Application
  • Future Work

3
MapServer
  • Pre-dates OGC interoperability efforts
  • Two primary objectives, via the Internet
  • create maps and associated products (e.g.,
    scalebars, legends and reference maps)
  • query spatial data
  • Two primary components
  • mapserv CGI provides out-of-box functionality
  • MapScript, access to the C/C API from popular
    programming languages

4
GDAL
  • Geographic Data Abstraction Library
  • Middleware for raster data access, similar in
    concept to ODBC
  • Provides most MapServer raster input and some
    output capabilities
  • Provides limited image processing support for
    operations such as projection and resampling

5
MapServer OGC Support
  • Web Mapping Service (WMS) - a perfect match for
    existing MapServer functionality
  • Web Feature Service (WFS) - MapServer supports
    non-transactional elements, equates roughly to
    MapServer query support
  • Web Coverage Service (WCS) - furthest spec from
    core MapServer functionality, must rely heavily
    on MapServer/GDAL interface

6
Groundwork
  • MODIS Download Facility early 2000
  • First extension of MapServer that has several
    characteristics of recent WCS standard
  • Lead to development of a SEEDS proposal for NASA
    funding
  • Partners University of North Dakota and the Jet
    Propulsion Laboratory

7
WCS Overview
  • Like WFS, WCS is a natural progression from WMS
  • Unfiltered access to a coverage, values or
    properties at a set of geographic locations
  • WCS 1.0.0 is limited to simple, that is grid,
    coverages whew
  • Supports simple queries in the form of spatial,
    temporal and/or other property subsets

8
Design Assumptions
  • Not a ground-up WCS implementation
  • Will not support the full WCS specification
  • Build upon functionality already available within
    MapServer
  • Any extensions to MapServer must be made
    available via the core product, the CGI interface
    and MapScript
  • Must integrate with OGC specification
    implementations supported by MapServer (e.g. WMS
    and WFS)
  • Relies upon GDAL for data extraction,
    transformation (e.g. projection) and formatting

9
Our ToDo List
  • Enable ISO8601 extended date format parsing
  • Enhance tiling to support
  • filtering based on tile attributes
  • specification of band/bands as an attribute
  • Alter GDAL/MapServer interface to support key WCS
    features (multi-band raw mode)
  • Update MapServer compilation process
  • Developed interface to process WCS requests via
    the MapServer CGI program
  • GetCapabilities/DescribeCoverage/GetCoverage

10
Spatial/Temporal Tiling
  • Mechanism to organize and present a large volume
    of data using a single MapServer layer definition
  • Has utility beyond immediate WCS needs, for
    example for access control
  • Simplifies development of client applications
  • Potential performance benefits
  • May be cumbersome to setup

11
Tiling Example Multiple Images
1.img
2.img
3.img
4.img
5.img
6.img
7.img
8.img
9.img
12
Tiling Example Single Image, Temporal Bands
NDVI_03.img
May
June
July
August
13
Development Status
  • Elements of WCS (e.g. tiling) is enabled in 4.2
    release, beta WCS support is now available in 4.3
    development version
  • Requires GDAL and Proj.4
  • Supports GetCapabilities, DescribeCoverage and
    GetCoverage

14
Enabling WCS
  • Very similar to enabling WMS and WFS
  • Define WCS specific metadata elements
  • GDAL can discover some values (e.g. resolution)
  • Optionally, these values can be hardcoded
  • Set the layer DUMP attribute
  • If necessary, structure image data appropriately
    using new tiling capabilities

15
An Example
LAYER NAME "ndvi" STATUS OFF TYPE
RASTER METADATA wcs_label "North Central
US MODIS-based NDVI Images for 2002" ows_srs
"EPSG26915 EPSG4269 EPSG4326"
ows_extent "159707 4597895 1400207 5501395"
wcs_resolution "500.0 500.0" wcs_formats
"GEOTIFF_INT16" wcs_nativeformat "raw
binary" wcs_timeposition "2002-001,2002-033,
,2002-193" wcs_timeitem "imgdate" END
DUMP TRUE TILEINDEX 'ndvi_idx' END
LAYER NAME "ndvi_idx" TYPE TILEINDEX DATA
"mod13" END
16
Demo Application
  • MODIS Download Facility
  • Run the demo...

17
Future Enhancements
  • Non-temporal range subsetting
  • Via TILEINDEX layers
  • Via raster cell values
  • Automatic metadata discovery
  • XML encoded requests
  • Support for multiple spatial interpolation
    methods
  • True support of ISO8601 date formats
  • WCS client support
  • Oh yeah, need to write documentation

18
Questions?
