Artificial Reefs for Beach and Reef Restoration

1

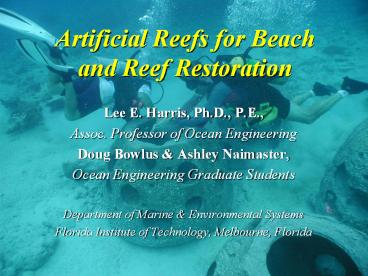

Artificial Reefs for Beachand Reef Restoration

• Lee E. Harris, Ph.D., P.E.,
• Assoc. Professor of Ocean Engineering
• Doug Bowlus Ashley Naimaster,
• Ocean Engineering Graduate Students
• Department of Marine Environmental Systems
• Florida Institute of Technology, Melbourne,
  Florida

2
Purposes for Artificial Reefs

• Provide environmental enhancement
• Mitigate for damages to reefs
• Ship groundings, dredging, burial, pollution
• Restore damaged reefs
• Natural events (storms, tsunamis, etc.)
• Enhance eco-tourism
• fishing, diving, snorkeling, surfing
• Assist with shoreline stabilization

3
Reef Ball Units
4
Reef Ball Mold System

5
Anchoring
6
Reef Ball Artificial Reef Breakwater
Submerged breakwater with Reef Ball artificial
reef units
REEF UNITS
Reef Ball Units Underwater
Induced Wave Breaking
7
Artificial Reef Breakwater
3-Row Reef Ball Breakwater (3 segments) in
Dominican Republic
2001
1998
6 wide 4 tall 2-ton Unit
8
Artificial Reef Breakwater
April 2001 After 3 years
After 2 months
Table 1. Changes in Shoreline and Sand Volume
Calculations 1998 to 2001
Accretion
9
Grand Cayman 7mile Beach

10
October 2002 (left) February 2003(right)
11
Profile Line at Center Project
Accretion
12
Propagated Coral Transplants on Reef Ball Units
