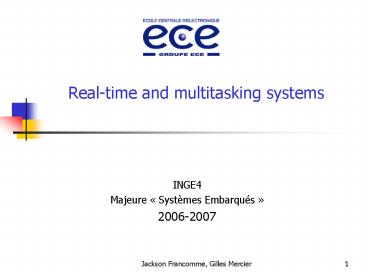

Realtime and multitasking systems

1
Real-time and multitasking systems

• INGE4
• Majeure  Systèmes Embarqués
• 2006-2007

2
CM4 Communication and synchronization between
tasks
Asynchronous messages Pipes, Mailboxes
Synchronous messages Rendezvous Different
inter-task synchronization mechanisms
3
The needs

• In a real-time application, the tasks are not
  independent, they must collaborate, therefore
  they have the need to
• synchronize,
• communicate,
• share information

4
Example of inter-task cooperation
synchronization, communication and mutual
exclusion
5
Communication between tasks

• By pipes in FIFO and urgent modes
• By mailboxes
• By message queue

6
Communication

• Information exchange
• from a task to another
• from an ISR to a task
• The communication services are
• Pipes
• Files de messages
• Shared memory

7
Pipes PIPE or FIFO

• Ordinary pipes
• Named pipes

8
Communication with pipes
SEND MESSAGE
RECEIVING THE MESSAGE
MESS. 2
MESS. 1
MESS. 3

• FIFO communication mode

9
Pipe

• There are two types of pipes
• The ordinary pipe also called  unnamed
• In order to use this tube, it is necessary to
  know a descriptor associated to its entry in the
  allocation table, corresponding to its mode (read
  or write).
• The descriptor is acquired in two manners
• by calling the pipe creation primitive pipe()
• by inheriting a process inherits while it is
  created the descriptors of its parent process,
  and in particular it inherits the pipe
  descriptors.
• Conclusion an unnamed pipe is adapted between
  the communication of two parent processes it is
  not very adapted for communication between two
  independent processes.

10
Named pipes

• Named pipes (FIFO)
• the named pipes allow to transmit data between
  two processes which are not attached by
  parent-child ties (no inheritance thus).
• they posses a reference in the file system in
  order to allow the unrelated processes to
  communicate in FIFO mode

11
Pipes Readers and writers

• The number of readers
• It's the number of descriptors associated as
  reading at the entry of the pipe in the opened
  files' table.
• If this number is zero, any reading of the pipe
  is forbidden.
• The number of writers
• It is a number of descriptors associated at the
  entry of the pipe.

12
Creating an unnamed pipe
pipe1
pipe0

• The creation of an unnamed pipe is done in the
  following way
• include ltstdio.hgt
• include ltstring.hgt
• include ltunistd.hgt
•
• int my_pipe2 /descripteurs
• if(pipe(my_pipe) ! 0)
• printf("Pipe creation error \n")
• exit(-1)

13
Reading and writing in an unnamed pipe

• The read/write in an unnamed pipe are done with
  the help of the functions read() and write() as
  for a classical file. The syntax is the
  following
• define MAXCAR 256
• main
• int ai 5
• char chainei MAXCAR, chaineo MAXCAR
• sprintf(chainei,"Hello all d \n", ai)
• write(pipe1,chainei, MAXCAR)//Ecriture dans
  l'entrée du tube
• read(pipe0,chaineo,MAXCAR) //lecture dans la
  sortie du tube

14
Reading and writing in an unnamed pipe

• Reading an empty pipe blocks the process who
  attempted the read.
• Writing in a full pipe (4096 byres are occupied)
  blocks the process who did the write.
• Using a pipe to send data inside the same process
  is useless.
• However, a pipe can be used to send data between
  a child and a parent process (unnamed pipes). If
  it is created before fork(), as any opened file
  is shared between parent and child.

15
Reading and writing in an unnamed pipe

• Since a pipe is unidirectional, each process must
  close one entry of the pipe. A pipe end is closed
  with the function close ()
• Example
• close(tube1) //closing the entry of the pipe
• For a bidirectional communication between parent
  and child, two pipes must be used.

16
Synchronization of read/writes in a pipe

• The mechanisms of synchronization of readers and
  writers in a pipe are the following
• read if the process requests the lecture of n
  characters in a pipe containing m gt 1 characters,
  there is a read of min(n, m) characters (and the
  immediate return of read).
• void pipe if the process requests a read in a
  void pipe which has at least one writer, it is
  (by default) put to sleep until a write takes
  place.
• end of pipe if a process requests a read in a
  pipe which has no writer, the read returns 0 is
  order to show the end of the pipe.

17
Synchronization of read/writes in a pipe

• Write if a process requests the write of n
  characters (n lt PIPE_BUF) in a pipe which has at
  least one reader, the system guarantees that the
  n characters will be written in a consecutive
  manner in the pipe, even if the writing takes
  place with between sleeps of the write process.
  Any other write request is blocked until the
  first one is completed.
• Pipe full if a process requests a write in a
  full pipe which has at least one reader, it is
  put to sleep until at least one read takes
  place.
• Pipe without reader if a process requests a
  write in a pipe which has no reader, the kernel
  sends the signal SIGPIPE, which, by default,
  causes the writer process to terminate (with the
  message Broken pipe).

18
Example 1 (1/3)

• In the program pipes.c, the process starts by
  creating a pipe and then a child process.
• The child (respectively the parent) redirects
  (with dup) its standard exit (respectively
  standard input) in the pipe.
• Then the child executes the ps command and the
  parent executes the wc -l command which counts
  the number of lines on its standard input and
  prints it on its standard output.
• We obtain the display of the number of processes
  as given by ps. This program realizes
  approximatively the Shell command ps wc -l

19
Example 1 (2/3)

• include ltstdio.hgt
• include ltstdlib.hgt //déclaration de system
• include ltunistd.hgt //déclaration de fork,
  pipe
• include ltsys/wait.hgt
• int tube2
• main ()
• int i
• if (pipe(tube) -1) //creation du tube
• printf( "Pipe opening impossible\n")
• exit(l)
• i fork( ) // naissance d'un fils
• if(i 0) // processus fils
• close(l) dup(tubel)// redirection de la
  sortie standard
• close(tubeo) close(tubel)
• execlp("ps", "ps", 0) // exécution de
  la commande ps
• else // processus pere
• close(0) dup(tube0) // redirection de
  l'entree standard
• close(tubeo) close(tubel)
• execlp("wc", "wc","-l", 0) / exécution de wc
  l

20
Example 1 (3/3)

• Execution
• pipes
• 12
• Remarks
• The reads/writes being made in a blocking mode,
  it is important that the parent process closes
  the pipe in write otherwise, this process being
  the reader of the pipe, if it is also writer, it
  will never end and will be put to sleep forever
  (moreover, the child process will remain a
  zombie).

21
Unnamed Pipes

• Unnamed pipe example (Shell)
• cat myfile grep key sort lpr
• The parent process (the shell or shell script
  that creates the pipes) also spawns the child
  processes that access the pipe
• cat, grep, sort, and lpr in this case
• Note the shell or script process that sets up
  the pipes CANNOT access the pipes itself!

22
Named pipe characteristics

• Introduced by POSIX under the name fifo
• Allows to communicate between processes not
  having the same parent process
• allows to communicate even two processes not
  belonging to the same user
• It has the same characteristics as the unnamed
  pipe but possesses the references in the file
  handling system
• it's this reference which helps the processes to
  make the pipe
• uses the function open in order to abtain the
  descriptor for read/write.

23
Named pipe creation

• System primitive mkfifo
• include ltsys/stat.hgt
• int mkfifo (const char path, mode mode_t)
• path denotes the path to access the pipe
• mode
• denotes the different access right of the users.
• is limited to read and write for the
  three classes (u, g, o)
• mkfifo returns 0 if the creation succeeded and -1
  is case of failure, for example is the node
  exists already.

24
Named pipe creation

• // rw for user // r for the group // r for the
  others
• includeltsys/stat.hgt
• includeltsys/types.hgt
• includeltstdio.hgt
• void main (void)
• mode_t mode
• char chemin "fifo_ING4"
• fprintf(stderr, "Creating a named pipe\n")
• mode S_IRUSR S_IWUSR S_IRGRP S_IROTH
• if ((mkfifo (chemin, mode))-1)
• fprintf(stderr, "Error creating a named
  pipe\n")
• exit(-1)
• else
• fprintf(stderr, "Creation of named pipe
  succeeded\n")

25
Named pipe opening deadlock danger
deadlock

• includeltfcntl.hgt
• includeltstdio.hgt
• void main(void)
• // code process 2
• int descR, descW
• ...
• //pipe1 et pipe2 already exist
• descW open("pipe2",O_WRONLY)
• fprintf(stderr,"Opening pipe2 in write")
• descR open("pipe1",O_RDONLY)
• fprintf(stderr,"Opening pipe1 in read")
• ...

• includeltfcntl.hgt
• includeltstdio.hgt
• void main(void)
• // code process
• int descR, descW
• ...
• //pipe1 et pipe2 already exist
• descW open("pipe1",O_WRONLY)
• fprintf(stderr,"Opening pipe1 in write")
• descR open("pipe2",O_RDONLY)
• fprintf(stderr,"Opening pipe2 in read")
• ...

26
Named pipe Re ad

• System primitive read
• include ltunistd.hgt
• ssize_t int read(int descR, void zone, size_t
  taille)
• Read principle
• if the pipe is empty
• no writers the end of file is reached no
  character is read and 0 is returned
• at least one writer
• if read is blocking (default behavior), the
  process is put to sleep while the pipe is empty
• if read is non-blocking, (O_NONBLOCK is set),
  there is no wait and the return is -1 (errno is
  EAGAIN).
• if the pipe isn't empty (contains x bytes) read
  of min(size, x) and put into memory address
  zone

27
Named pipe Write

• System primitive write
• include ltunistd.hgt
• ssize_t int write(int descW, void zone, size_t
  taille)
• Write principle
• No readers the signal SIGPIPE is sent to the
  write process (while attempting to write) ? by
  default destruction of the process (broken pipe
  message).
• At least a reader
• identical to the unnamed pipes

28
Named pipe Write

• At least one reader
• if the write is blocking, the return of this
  writing takes place only if n bytes were
  written (sleep possible).
• if the write is non-blocking
• if n ? PIPE_BUF and there are n free bytes in the
  pipe, atomic write
• if n ? PIPE_BUF and there are not n free bytes o,
  the pipe, immediate return with -1 (errno
  EAGAIN)
• if n ? PIPE_BUF, the return is
• a number lt n, if at least one byte can pe written
• -1 (errno is EAGAIN), if no byte was written

29
Named pipe Closing

• The system primitive close
• include ltunistd.hgt
• int close (int desc)
• desc denotes the descriptor of the pipe to be
  closed (read or write)
• Beware of the consequences
• No readers
• No writers
• limit case physical suppression of the named
  pipe
• Return
• 0 in the case of success
• -1 in the case of failure

30
Named pipe Termination

• The system primitive unlink
• include ltunistd.hgt
• int unlink (const char path)
• path denotes the path to access the pipe to be
  suppressed
• Conditions on suppression (freeing the space)
• Number of physical links zero
• Number of internals links zero (no
  readers/writers)
• Thus, if one or more processes have an open named
  pipe while it is suppressed (with thr shell
  command rm for example), only the directory entry
  is suppressed ? no access possible for a new
  process
• Returns
• 0 success
• -1 failure

31
Named pipe opening

• The system primitive open
• includeltfcntl.hgt
• int open(const char path, int option)
• path denotes the path to access the pipe
• option defines the opening mode (O_RDONLY,
  O_WRONLY, O_NONBLOCK)
• The opening is blocking by default
• An opening in read-only is blocking if there are
  no writers.
• An opening in in write only is blocking if there
  are no readers.
• The synchronization of openings is assured by the
  system
• Beware of deadlocks!
• The opening of a pipe may be non-blocking
  (changing is possible with the system call fcntl)
• Returns The descriptor in the case of a success
• -1 in case of an error

32
Named Pipes (UNIX Shell)

• Named pipes can be accessed by any process that
  knows the name
• Named pipes appear in the users directory list
• ls -l
• pwr_r__r__ 1 krf 0 Mar 27 1933 mypipe
• Like any other file, umask determines the initial
  permissions. To prevent the potential for
  disturbances by other users, its a good idea to
  remove the read/write permissions for Group and
  Other if they are normally provided by your umask

33
Named Pipe Creation

• Named pipes are created using the mknod or the
  mkfifo commands
• mkfifo name
• or mkfifo m mode name
• mknod name p
• Make sure you remove (rm) your pipes after use!

34
Using Named Pipes (UNIX Shell)

• First, create your pipes
• mknod pipe1 p
• mknod pipe2 p
• mknod pipe3 p
• Then, attach a data source to your pipes
• ls -l gtgt pipe1
• cat myfile gtgt pipe2
• who gtgt pipe3
• Then, read from the pipes with your reader
  process
• cat lt pipe1 lpr
• spell lt pipe2
• sort lt pipe3
• Finally, delete your pipes
• rm pipe1-3

35
Example client/server communication

• A server waits for questions from clients in a
  pipe fifo_pipe1 . A question corresponds to
  the send request of n numbers chosen by the
  server (n is a random number between 1 and NMAX
  chosen randomly by the client).
• In its question, the client sends equally its PID
  number, so that the server can make it ready
  through the signal SIGUSR1 when it writes the
  answer.
• Indeed, since more clients could wait for an
  answer in the same pipe, it is necessary to
  define a protocol which assures that each client
  reads the answers destined to him.
• The client acknowledges the server through the
  same signal when it reads the answer.

36
Example client/server communication
fifo_pipe1
question
answer
fifo_pipe2
37
Message queue

• Creation
• Write
• Read
• Destruction control

38
Message queue

• A message queue must be created, starting from a
  key function, with the function msgget() of
  prototype
• int msgget (key_t key, int attributes)
• key is the key, its attributes allow to
  define the access rights of the process to the
  message queue.
• The return of the function msgget is the
  identifier of the message queue.

39
Message queue

• The parameter IPC_PRIVATE passes as key to the
  process and also to its children in order to use
  the message queue.
• Attributes binary OR on the attributes
• IPC_CREAT creates a new message queue, if there
  is not one associated with the key sent as first
  argument
• IPC_EXCL always creates a new message queue.
  The function msgget() fails if a message queue
  already exists with the given key.
• as usual access rights are also available

40
Message queue Example

• include ltstdio.hgt
• include ltsys/types.hgt
• include ltsys/ipc.hgt
• include ltsys/msg.hgt
• int msgid // Message queue identifier
• /--- Creating Message queue --- /
• if(msgid msgget (IPC_PRIVATE,IPC_CREATIPC_EXCL
  0x666) -1)
• printf("Creation error on message queue\n")
• exit (-1)
• printf ("Message queue identifier d \n",msgid)


41
Message queue Examples

• Queue reserved to the caller process and its
  children
• file msgget(IPC_PRIVATE, Ox600)
• In order to access a queue allowing the dialog
  with other processes of the same application
• ma_cle (key_t) NOMBRE_MAGIQUE
• file msgget(ma_cle, IPC_CREAT 0x660)
• The other processes will use the same magical
  number in order to access the queue!
• Beware of conflicts!

42
Message queue Examples

• In order to assure the creation of a new message
  queue, the case of a server, or demon process for
  example
• ma_cle ftok(argv0, 0)
• file msgget(ma_cle, IPC_CREAT IPC_EXCL
  0x622)
• ftok created by a key made by the name of the
  application
• a process who must use only an existing message
  queue
• ma_cle ftok(fichier_executable_serveur, 0)
• file msgget(ma_cle, 0)

43
Structure of the messages exchanged via e queue

• A generic structure struct msgbuf is defined in
  the in the header file sys/msg.h.
• struct msgbuf
• long mtype
  // type du message
• char mtextelongueur
  //texte du message
• The programmer defines his own type of message by
  modifying upon wish the existing definition. His
  structure struct mymsg must only verify the
  properties
• the first field must be long.
• the other fields, in arbitrary numbers, may have
  any type, except pointers.

44
Example of message structure

• typedef struct
• long type
• int tab10
• float x, y
• mymsg
• The message type is a positive integer. In has
  meaning only for the application, not for the
  system. It is possible to extract a message of a
  given type from a queue and to realize a
  multiplexing of the messages, that is a selection
  inside the queue in the moment of extraction.
• Attention Addresses cannot be changed, the
  memory zones of two messages are disjoint.

45
Writing a message in a queue msgsnd

• The writing ("sent") of a message in a queue is
  done with the system call msgsnd declared by
• int msgsnd(int msgid, void p_msg, int lg, int
  option)
• msgid is the internal message queue identifier
• p_msg is a pointer to the first character of the
  text message.
• lg is the message length.

46
Writing a message in a queue msgsnd

• option can take two values
• 0 is the default value, which corresponds to a
  clocking write is the queue is full (for a queue,
  there is a maximum number of messages and a
  maximum number of bytes), the process is put to
  sleep until there is enough space to memorize the
  sent messge.
• IPC_NOWAIT corresponds to a non-blocking
  write if the message queue is full, immediate
  return -1 (errno is put to EAGAIN).
• The return of msgsnd is the length of the sent
  message and -1 in the case of failure.

47
Receiving a message from a file msgrcv

• The extraction ("reception") of a message from a
  file is done by making the system cal msgrcv
• int msgrcv(int msgid, void p-msg, int lg, long
  type, int option)
• msgid is the internal identifier of the file, in
  which a demand is formulated.
• p_msg is a pointer on a memory zone prone to
  receive a message and the text zone has a length
  inferior or equal to lg.
• type allows to choose the message to be
  extracted
• type 0 the oldest message
• type gt 0 the oldest message of a given type
• type lt 0 the oldest message but with the
  smallest type (the type of a message is always
  positive) and inferior or equal to type. This
  allows to define priorities in messages.

48
Receiving a message from a file msgrcv

• Option can take three values
• 0 is the default value and corresponds to a
  blocked read if the queue does not contain
  messages of the specified type the msgrcv
  process is put to sleep until a message of that
  type arrives.
• IPC_NOWAIT corresponds to a non,-blocking read
  if the message queue does not contain messages of
  the specified type, immediate return -1, errno is
  set to EAGAIN.
• MSG_NOERROR if the text to be extracted is
  longer than ig, (this option forces the
  extraction with truncation), then by default
  there is an error.
• The returs of msgrcv is the message length
  written at the address p_msg and -1 in the case
  of failure.

49
Control primitive for the message queue

• The function msgctl allows to work on the
  structure pointed by pt
• includeltsys/msg.hgt
• int msgctl(int msgid, int option, struct msqid_ds
  pt)
• msgid identifier of the created message queue
• Options
• IPC_Stat write at pt the information on the
  message queue read the structure
• pt value memory address containing the
  information
• IPC_SET modification of the values of uid, gid
  or mode.
• pt value memory address containing the
  information
• IPC_RMID removal of the message queue
• pt value NULL
• Return
• 0 no error
• -1 if error

50
Example. (1/4)

• The program bourse.c must be called with an
  argument which is, the client's message queue or
  the agent message queue. The process stars by
  opening a message queue with the key 1515.
• If the argument is client the process sends
  (msgsnd) in a queue a sell order of the
  Eurotunnel shares (message of type 1).
• If the argument is agent the process receives
  (msgrcv) from the queue a type 1 message and
  prints the received order.
• include ltstdio.hgt
• include ltsys/types.hgt
• include ltsys/ipc.hgt
• include ltsys/msg.hgt
• include lterrno.hgt
• include ltstring.hgt
• struct ordre // sell shares
• long type
• char texte50 // nom de l'action
• int nombre // nombre a vendre
• message
• int longueur sizeof(message)-4

51
Example (2/4)

• main(int argc, char argv)
• key-t cle 1515
• int ident // creation ou ouverture d'une file
  de cle 1515
• if((ident msgget(cle, 0666IPC_CREAT)) -1)
• perror("msgget")
• exit(-1)
• if(strcmp(argv1, "client") 0) // code du
  client
• message.type 1 // envoi d'un message de type
  1 (ordre de vente)
• message.nombre 250000
• sprintf(message.texte, "Sell d Eurotunnel",
  message.nombre)
• if(msgsnd(ident, message, longueur, 0) -1)
• perror("msgsnd")
• exit(-1)

52
Example. (3/4)

• // code pour l'agent de change
• if(strcmp(argvl, "agent") 0)
• // réception d'un message de type 1
• if(msgrcv(ident, message, longueur, 1, 0) -1)
• perror("msgrcv")
• exit(-l)
• printf("Received message type ld\n",
  message.type)
• printf("Ordre recu s\n", message.texte)

53
Example Execution (4/4)

• bourse client (the client sends an order)
• ipcs -q (check)
• ------ Message Queues --------
• msqid owner perms used-bytes messages
• 0 root 666 0 0
• 1 jmc 666 56 0
•   bourse agent (the agent gets un
  message)
• Received message de type 1
• Order received Sell 250000 Eurotunnel
• ipcs -q
  (check)
• ------ Message Queues --------
• msqid owner perms used-bytes messages
• 0 root 666 0 0
• jmc 666 0 0

54
Shared memory

• Creation
• Write
• Read
• Control and destruction

55
Shared memory

• The shared memory allows processes to physically
  share pages of data
• A shared memory segment does not depend on a
  specific process it is an independent object in
  the system. It is characterized by its size.
• Any processor knowing it by key can attach it to
  its address space.

56
Creating a shared memory

• The shared memory must be created, staring from a
  key, by the function shmget () of prototype
• include ltsys/shm.hgt
• int shmget (key_t key, int size, int
  attributes)
• key is the key (obviously),
• The parameter IPC_PRIVATE passes as key allows
  processes and to theirs children to use the
  shared memory.
• size the number of the bytes of the shared
  memory,
• attributes binary OR between the different
  options
• defines the rights of read/write (example 666)
• IPC_CREAT allows the creation of a shared memory
• IPC_EXCL forces the creation of a shared memory
• Returns
• The return of the function shmget() is the memory
  identifier.
• -1 in case of error.

57
Created shared memory Attachment primitive

• All processes using shared memory, including the
  one that created it, must attach to the shared
  memory, after it is created. The attachment is
  done with the function shmat() with the prototype
  below, and identifier returned by shmget()
• include ltsys/shm.hgt
• int shmat (int shmid, const void address, int
  attribut)
• shmid returned identifier whiles creating the
  shared memory
• address desired address for the attachment . If
  this argument is NULL, the kernel searches an
  empty space.
• The attachment can be done in read-only if the
  attribute SHM_RDONLY is passed as third argument.

• Returns
• effective attachment address
• -1 if error

58
Created shared memory Detaching primitive

• Allows to a process which has attached a segment
  in its space to detach it.
• include ltsys/shm.hgt
• int shmdt (const void address)
• address attachment address sent by shmat
• Returns
• 0 no error
• -1 if error

59
Created shared memory Control primitive

• Allows a process which has already attached a
  segment in its address space to receive
  information on the shared memory, to modify or to
  destroy a segment of shared data.
• include ltsys/shm.hgt
• int shmctl (int shmid, int op, struct shmid_ds
  pt)
• shmid memory identifier
• op
• IPC_RMID suppression of the segment after the
  last detachment
• IPC_STAT information changing under pt
• IPC_SET modification of the input uid, gid,
  mode
• After call
• pt contains the information relative to the
  segment for IPC_STAT
• Returns
• 0 no error
• -1 if error

60
Created shared memory Control primitive

• Struct shmid_ds
• struct ipc_perm shm_perm //droits
• int shm segsz //taille du segment en octets
• pid_t shm_Ipid //pid de la tâche ayant effectuée
  la dernière op.
• pid_t shm_cpid //pid de la tâche créateur de la
  mémoire
• u_short shm_nattch //nombre dattachement
• time_t shm_atime // dernier attachement
• time_t shm_dtime // dernier détachement
• time_t shm_ctime // dernière modification
• Struct ipc_perm
• uid_ uid
• gid_t gid
• ind_t cuid
• gid_t cgid
• u_short mode
• u_short seg //nombre dutilisation
• key_t key

61
Shared memory an example

• The example below proposes an attachment in read
  and write.
• include ltstdio.hgt
• include ltsys/types.hgt
• include ltsys/ipc.hgt
• include ltsys/shm.hgt
• define MODE-MEMOIRE (SHM_RSHM_W) /utilisation
  en lect. et écrit.
• int shmid // identificateur de mémoire partagée
• char shmptr // pointeur sur la mémoire partagée
• // --- Création de la Mémoire Partagée 5 octets
  ---
• if (shmid shmget (IPC_PRIVATE, 5,MODE MEMOIRE)
  lt 0)
• perror("shmget")
• exit(-1)
• /--- Attachement a la Mémoire Partagée --/
• if(shmptr shmat (shmid, 0,0) (void )-1)
• printf("Erreur d'Attachement à la mémoire
  partagée \n" ),
• exit (-1)
