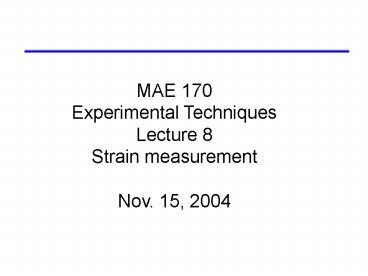

MAE 170 Experimental Techniques Lecture 8 Strain
measurement Nov. 15, 2004
2
Announcements

• In-lab final Nov. 30-Dec. 3
• Written final
• Monday, Dec. 6 from 7-10 pm
• Make up labs for Veterans Day (Thurs. Nov. 11)
• Monday and Tues., Nov. 22 and 23 all day
• Wed., Nov. 24 in morning only

3
Format of in-lab final

• Time 1 hour total during regular lab hours
• Electrical circuits (black box)
• e.g. op-amps, filters
• Experimental
• LabView practical
• Simple data acquisition and VI programming

4
Format of written final exam

• Same format as mid-term
• Multiple choice, true/false
• Between 40-50 questions
• You have all 3 hours to complete the exam

5
Goals of this experiment

• Measurement of strain and force
• Understanding the principles and use of strain
  gauges

6
Objectives

• Using an aluminum alloy (2024-T4) cantilever beam
• Determine the spring constant (k)
• Determine the elastic modulus (E)
• Determine Poissons ratio (n)

7
Principle of experiment
Strain due to cantilever deflection is sensed
electrically, through a strain gauge The strain
gauge is the unknown resistor in a Wheatstone
bridge configuration
8
Concepts

• Hookes Law
• Relates stress and strain
• Gauge factor for a strain gauge (G.F.)
• Mechanics of beam bending

9
Hookes Law

• Stress (s) is proportional to strain (e)
• s E e
• E elastic modulus

10
Poissons ratio (n)

• For a 3-dimensional solid, we have to consider
  the strain the transverse direction
• Most materials n 0.3-0.5

transverse
longitudinal
11
In this experiment, strain due to bending is
sensed resistively
12
Strain gauges
A length change causes a resistance change, which
is measured by a strain gauge
R resistance r resistivity L length A area
Change of resistance
13
Strain gauges

See lab manual for geometry
14
Gauge Factor (G.F.)
The G.F. is proportional to the inverse of the
longitudinal strain multiplied by the change in
resistivity
The G.F. relates a change in resistance to
strain For most elements, G.F. ranges from
2.0-4.0 e.g., constantan 2.0, nichrome 2.2
15
Wheatstone bridge
The change in resistance is measured by a
Wheatstone bridge
Adjust R3 so that VAB 0 (VA VB 0) VA - Vi
VB - Vi i1R1 i3R3 i2R2i3Rx
16
An unbalanced Wheatstone bridge
Rx is the STRAIN GAUGE, generally VAB ? 0
Rx changes due to strain ?VAB changes
17
A strain gauge
Made of Cu-Ni or Nichrome alloys
18
Strain rosette
A strain rosette can be used to measure the
general state of strain at a point.
For your experiments, you will use a 45 strain
rosette
19
A 45 strain rosette
SG 4
Free end
SG 3
SG 1
SG 2
SG 5
Strain Rosette configuration
20
Experiment Part 1
Measure the resistance of the strain gauges
before and after loading
21
Experiment part 1

• Example for strain gauge 2
• In longitudinal direction
• Unloaded resistance 126.29
• Loaded with around 340 gms, change is lt 1
• In transverse direction
• Unloaded resistance is 131.32
• Loaded with around 350 gm, change is ltlt 1

22
Experiment Part 2
D E F L E C T I O N
Add weights and measure deflection (x), from
graph of force vs displacement determine k, F
kx from k 3EI/L3 find E I is moment of
inertia, I bh3/12
End View
h
b
23
Experiment Part 2

• Deflection is measured by a yardstick

24
Experiment Part 3
dV G.F.?Vo(1/4)
Plot dV (change in voltage across Wheatstone
Bridge) vs mass and comment on shape (positive or
negative)
25
Experiment Part 3

• Take off all the weights and get 0 volts from the
  strain gauge
• The strain is proportional to the mass, as given
  in the previous equation
• Either positive or negative dV for compression or
  tension

26
Experiment Part 4
Determine the G.F. for strain gauge 3
Calculate strain, ? , from theory ?max
xhF/(2EI) - for each load measure dV - plot dV
vs ?maxV(1/4) and find best fit slope G.F.

27
To do before the experiment

• Understand the terms stress, strain, Poissons
  ratio, gauge factor
• Review principle of Wheatstone bridges
• Review the experimental procedure
