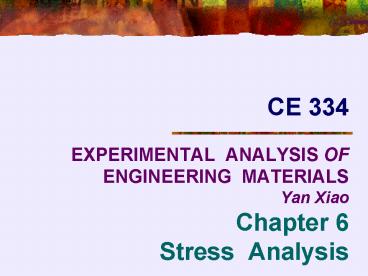

• EXPERIMENTAL ANALYSIS OF
• ENGINEERING MATERIALS
• Yan Xiao
• Chapter 6
• Stress Analysis

2
Contents

• Introduction
• Review of stress and strain transformations
• Measurements of complicated strains
• Review of elastic beams
• Project

3
Introduction

• Objectives of stress analysis
• To investigate stresses in bodies of complicated
  shapes, properties or under complex loading
  conditions, where no sophisticated and reliable
  analytical methods are available.
• Backups or validation of analysis
• Obtain mechanical properties
• Assessment of working (stress) condition. etc.

4
General

• Measurement of surface strains at selected
  points
• Since only limited strains at limited points and
  limited directions are instrumented, analysis is
  needed to obtain strains in other directions,
  locations

5
Strain transformation
Strain components in x-y coordinates,
Projecting strains from x-y system to x-y
system
6
Equations for strain transformation
These equations are similar to those for
stresses, except exchanging normal stresses by
normal strains, and shear stress by shear strain
(i.e., 1/2 of the conventionally defined shear
strain gxy)
7
Mohrs circle for strain and principle strains
Similar to stress Mohrs circle. From this, the
principal strains can be easily defined,
8
Big Question???
Are the directions of principal stresses and
principal strains the same ? If so, under what
condition?
9
Measurement of 2-D strains
To obtain the 3 independent strains (2 normal and
1 shear) at point can be done by measuring 3
normal strains in 3 know directions.
10
Rosette
Principal strains and directions
11
Commercial rosettes
Three-element 45-deg. rectangular rosettes
Two-element 90-deg. rectangular rosettes
12
Plane-shear or Torque Gauge
As shown in the Mohrs circle, if A and B is
aligned in 45o to x-direction, then,
Torque gauges are made based on this concept to
directly measure shear strain.
13
Experimental analysis of simple elements
Review of elastic beam theory Flexure
stresses the figure shown is based on 1. Plane
assumption 2. Elasticity.
14
Shear stresses
Shear stress at position y from centroid,
For rectangular section,
Note shear stress thus defined VIOLATE the plane
assumption!!!!!
15
Shear Stress in I-Shaped Sections
For flanges,
For web,
16
Project 5 - stress analysis of simple beam
Requirements 1. Evaluate the plane assumption
for the mid-span section 2. Check principal
strains at the center point 3. Check principal
strains at point 1 and 2. 4. Assess Youngs
modulus. 5. Etc.
