CEMENT CONCRETE BLOCK PAVING FOR RURAL ROADS

1

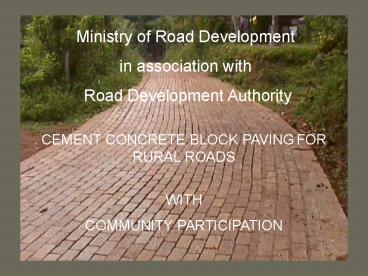

Ministry of Road Development in association with
Road Development Authority
CEMENT CONCRETE BLOCK PAVING FOR RURAL ROADS
WITH COMMUNITY PARTICIPATION
2
WHY BLOCK PAVING ?

• Government decision to concrete rural roads in
  lieu of traditional metal and tar
• Maintenance free or minimal maintenance
• Can enlist community participation
• Income distribution to less affluent
• Can be done with unskilled labour
• Facilitate utility connections

3
Steps in Construction

• Scarify and re grade existing surface
• Compact
• Spread sand to a uniform thickness
• of 25 mm
• 4. Place cement concrete blocks
• to a desired pattern
• 5. Spread sand over the blocks
• 6. Compact with a plate vibrator
• 7. Construct edge kerbs

4
Making cement concrete blocks
5
(No Transcript)
6
(No Transcript)
7
(No Transcript)
8
Testing concrete blocks
9
(No Transcript)
10
(No Transcript)
11
(No Transcript)
12
(No Transcript)
13
(No Transcript)
14
(No Transcript)
15
Paving concrete blocks
16
(No Transcript)
17
(No Transcript)
18
(No Transcript)
19
(No Transcript)
20
(No Transcript)
21
(No Transcript)
22
CEMENT CONCRETE BLOCK PAVING TRIALBandigoda
road, JaelaCost of making blocks

• Materials
• 65 blocks with one bag of cement (50kg)
• Proportion 1 11/2 2
• Crushing strength 18 - 20 N/mm2 at 7 days
• 25 30 N/mm2
  at 28 days
• Materials for 65 blocks
• 1 bag cement Rs 600
• 11/2 c.ft sand Rs 90
• 2 c.ft 6mm agg Rs 40
• water, moulds etc Rs 20
•
  750
• Cost of materials per block Rs. 11.54

23
Cost of Cement Concrete Blocks

• Cost of labour for producing blocks
• 65 blocks were produced by one person
• per day
• At Rs. 400 per person, cost of labour
• is 400/65 6.15
• Therefore the total cost of a block without
  transport Rs 17.69

24
Cost of Paving

• 14.5m2 paved by 2 men at Rs.400
• 40 blocks per m2 580 blocks
• Cost of labor for paving
• one block /69 cts
• sand 0.5 m3 at 5000/2.83/580 1.53/block
• Vibrating plate Rs 2000/day/5803.45/block
• paving cost per block Rs 5.67

25
Cost of paving concrete blocks

• Concrete edging 225mm x 150mm
• 8.28m edging for 14.5 m2 paving
• 8.28x.225x.1500.28m3 concrete at Rs.8,000 /m3
  Rs 2240/
• Cost per block 2240/580 Rs 3.86
• Total cost of cement concrete block paving
• with out cost of preparation of the base
• Rs. 27.42 say Rs 28/per block or 28x40Rs
  1120/m2
