Title:


1

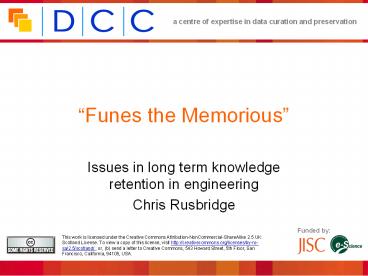

Funes the Memorious
  • Issues in long term knowledge retention in
    engineering
  • Chris Rusbridge

2
Contents
  • DCC
  • Last year?
  • Funes, and the cobbler
  • Knowledge, engineering, information, longevity
  • Next

3
Mission
  • The over-riding purpose of the DCC is to
    support and promote continuing improvement in the
    quality of data curation, and of associated
    digital preservation

4
Goals
  • Strategic leadership in digital curation
  • Influence and inform policy
  • Provide advocacy and expert advice
  • Provide resources and tools
  • Raise levels of awareness and expertise
  • Strengthen the community
  • Continue links with leading edge research

5
Status of DCC
  • Phase 2 funded 3/2007 to 2/2010
  • Associated project DCC SCARP to 4/2009
  • Includes immersive case study approach including
    engineering/architecture at Bath
  • Just starting!

6
Last year at LTKR
  • Established importance of problem
  • Critical standards exist (STEP, OAIS) helpful
    but not sufficient?
  • Identified some issues limitations
  • Wanted engineering information in (format)
    registries
  • Identified some archiving problems
  • Listed some requirements

7
Funes the Memorious
  • Story by Jorge Luis Borges 1
  • Funes remembers everything
  • 70,000 memories a day how to classify?
  • Puzzled why the dog at 314 (seen from the side)
    should have the same name as the dog at 315
    (seen from the front)
  • I suspect, however, that he was not very capable
    of thought. To think is to forget differences,
    generalize, make abstractions. In the teeming
    world of Funes, there were only details, almost
    immediate in their presence.

8
The cobbler?
  • People
  • Organisation
  • Processes
  • Knowledge
  • All in one person!
  • Un-scalable, and mortal

9
Abstraction and domain areas
  • Peak, Lubell,
  • Srinivasan
  • Waterbury,
  • JCISE 2004 2

10
Scalability bring on the M names?
  • ILM?
  • Digital curation? No, 3rd party storage
    management
  • KM?
  • Integrate processes and agents through shared
    knowledge?
  • With added requirements for long-term?
  • death/autism of KM?
  • Cultural change barriers knowledge sharing
    still
  • Person to person
  • Just in time (if youre lucky)
  • Problem-oriented
  • PLM?
  • Proprietary 3rd party? Trust me
  • Standards-based

11
Whats going on?
  • Compliance period
  • archival
  • Economic period
  • Product database

Curation begins here!
Soft transition
  • Retain
  • After life
  • Maintain
  • during life
  • Design
  • Build
  • Product information repository
  • Completeness, accuracy,
  • versions, process, efficiency
  • provenance,
  • longevity
  • Continuing interpretability

12
Archive/repository
  • Preserves information (OAIS)
  • For a Designated Community
  • Receives Submission Information Packages (SIPs)
  • Negotiated
  • Data in files
  • Metadata
  • Context provenance, etc

13
Designated Community
  • An identified group of potential Consumers who
    should be able to understand a particular set
    of information
  • Here future engineers (and accident
    investigators!)
  • Will 22nd century engineering concept set
    vocabulary be superset of todays?
  • No! Gradual concept drift
  • But likely discoverable by determined
    investigator.

14
Slippery words
  • Polysemantic concepts such as information can be
    fruitfully analysed only in relation to
    well-specified contexts of application Floridi
    3
  • Understand
  • Knowledge
  • Knowing that, knowing how
  • Information
  • Factual, instructional, process
  • Data
  • difference that makes a difference
  • Files

15
Files, databases, packets
  • No naked data
  • In any independent existence the data are always
    packaged in some way
  • Encoded serialisation of data representing
    information linked to an information model and/or
    conceptual schema?
  • Packaging adds extraneous information
  • Confuses the archivist! (Most digital
    preservation discussions relate to preserving
    files or at best digital objects)

16
ISO 19101 model
  • ISO 19101

17
Information
  • Standard definition of information Floridi
  • Comprises data that
  • is well-formed
  • and meaningful
  • OAIS definition
  • Any type of knowledge that can be exchanged. In
    an exchange, it is represented by data.

18
Representation information
  • Heavy load!
  • Representation Information accompanying a
    digital object, or sequence of bits, is used to
    provide additional meaning. It typically maps the
    bits into commonly recognized data types such as
    character, integer, and real and into groups of
    these data types. It associates these with
    higher-level meanings that can have complex
    inter-relationships that are also described.

19
Interpreted using
  • Today software tools
  • (although OAIS implies RepInfo often a text
    description)
  • Tomorrow
  • Same software running on a VM (emulation)?
  • Different software specially built using the
    RepInfo?
  • Maybe tool to interpret RepInfo eg in EAST?
  • Maybe new software implementing legacy forms?
  • Maybe transform old data for new software
    (migration)?
  • Outcomes enhanced if information in widely-used
    standards-based form!

20
OAIS a Reference Model
  • Not a design
  • Not an architecture
  • There need be no element labeled RepInfo
  • but the CONCEPT of RepInfo should exist!
  • Ie explicit relationship between data/files and
    information according to a recorded information
    model

21
Engineering RepInfo?
  • Do you have an underlying engineering information
    model?
  • What would representation information be for
    engineering information (say encoded in STEP)?
  • Definitions of appropriate STEP elements (eg the
    standard)
  • Additional refinements added by the tools used
  • ???
  • What about what cannot be encoded in STEP?
  • Or what information would an engineer need who
    had never used STEP or your analysis tools?

22
Final questions
  • What else makes your encoded product information
    fragile?
  • What can you do to make it more robust?
  • What further tools, techniques, training and
    infrastructures do you need to do a better job?

23
References
  • 1 Borges, Jorge Luis. (1962) Labyrinths,
    Selected Stories Other Writings. Penguin Books
  • 2 Peak, R., Lubell, J., Srinivasan, V.,
    Waterbury, S. (2004). STEP, XML, and UML
    Complementary Technologies. Journal of Computing
    and Information Science in Engineering 4 (4),
    379-90
  • 3 Floridi, L. (2005). Is Semantic Information
    Meaningful Data? Philosophy and Phenomenological
    Research, Vol. LXX, No. 2
