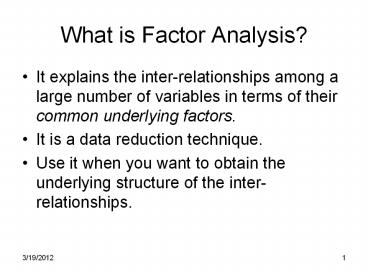

What is Factor Analysis?

1
What is Factor Analysis?

• It explains the inter-relationships among a large
  number of variables in terms of their common
  underlying factors.
• It is a data reduction technique.
• Use it when you want to obtain the underlying
  structure of the inter-relationships.

2
Seven-Stages operations of Factor Analysis.

• 1. Define the objectives
• Identification of structural relationships among
  variables.
• Obtain representative variables.
• Create a new set of variables.

3
Stage 2

• Designing Factor Analysis
• Create the correlation matrix among variables
  using
• Original data matrix called R type factor
  analysis
• Create the input data matrix from the
  correlations among sample units This is called
  Q type factor analysis.
• The ratio sampled units/variables should be
  greater than 5 for factor analysis.

4
Stage 3

• Check out the validity of assumptions
• Variables should be related to have meaningful
  common factors.
• Sample units must be homogenous.
• Data must be metric. Dummy variables are allowed.
• Multivariate normality is required only for
  doing hypotheses testing.
• The correlations among variables must be at least
  0.3 in their absolute values.

5
Stage 4

• Select one of two extraction methods
• Principal component factor analysis it uses a
  significant amount of explained variations.
• Common factor analysis it uses the common
  variance and places communality estimates on the
  diagonal of the correlation matrix.
• Determine how many factors to consider using
• Latent root criterion by specifying the threshold
  values for eigenvalues
• Percentage of variation to be explained
• Scree test criterion it plots eigenvalues of
  each factor in terms of the number of factors.
  The point where the plot becomes flat is the
  appropriate number of factors.

6
Stage 5

• The rotation redistributes the variance to
  explain well the simple structures in the factor
  matrix.
• There two rotation methods
• Orthogonal rotations called quartimax to cluster
  the sampled units, varimax to cluster the
  variables, equimax to compromise between
  varimax and quartimax.
• Oblique rotation methods
• SAS uses promax
• SPSS uses Oblimin
• Factor loadings should be at least 0.30 in
  absolute value.

7
Stage 6.

• Validating the results
• Use confirmatory factor analysis to check out the
  replications
• Factor structure should be stable
• Identify the impact of outliers by analyzing with
  and without outliers

8
Stage 7

• Interpret the results
• Use the knowledge in future studies
• Develop surrogate variables as a simple summary
  of several correlated variables.

9
Factor Analysis

• Principal components
• An extension of regression ideas to determine the
  relationship among variables
• Multivariate method

• Factor analysis details
• Use when some variables are observed and others
  are latent
• Multivariate method

10
Some Facts of Principal Components

• We can rotate the x and y axes so that highest
  variability in the data occurs in the first
  principal axis and the next high variability
  occurs in the second principal axis which is
  orthogonal to the first axis.

• The new data values are x and y which are
  linear combinations of old x and y values.
• Find standard deviation of x and y for a
  selected angle of rotation.
• The graph of such standard deviation curve helps
  to identify the optimal angle.

11
Basics

• First principal component is

12
Variability explained
13
Variability of k-th Principal Component
14
Percent of variability explained by the k-th
Principal Component
15
Distributionality
16
Confidence Interval
17
Correlations
18
Correlation matrix
19
Rationale in examining correlation matrix above

• By examining the correlations of the variables
  with a principal component, we can find the
  variable which contributes most to a principal
  component as its correlation is the highest.
• By searching for the highest correlation among
  the correlations of a variable with the principal
  components, we know which variable causes high
  overall variability in the data.

20
Factor Analysis

• This is also a regression technique of finding
  relations among observed and latent
  non-observable variables using their
  correlation structure.
• The unobserved variables are called factors.

21
Factor model
22
Assumptions of the Factor Model

• Factors are standardized to have zero mean and
  unit variance.
• Factors are uncorrelated with each other and also
  with the noise.
• The noises have zero mean and uncorrelated with
  each other and the unobserved factors and may
  have different variability.
• It is important that the number of factors, k is
  less than the number of observations, p.

23
Assumptions of Noises
24
Factor Loadings
25
Assumptions of Observed
26
Residual Correlation

• It is the difference between observed correlation
  and fitted correlation in the factor analysis
• A Rule when the residual correlation is less
  than 0.1 in absolute value, the correlation has
  been well explained.
• When the residual correlations are significantly
  large, consider including more factors.

27
An Interpretation

• The sum of the squares of the loadings for a
  factor is the proportion of the total observed
  variances (in the data of X ) that is explained
  by the factors.

28
Estimation methods

• Unknowns to be estimated are factor loadings and
  the specificities.
• Methods of estimation
• MLE gives best fit
• Varimax method not to be used when general
  factors are there
• Quartimax method use when one factor has large
  loadings and there are not many factors of that
  type

29
Oblique factors

• When two factors are NOT independent, they are
  called oblique factors.

30
How many factors to be considered?

• There is NO universal rule.
• When the residual correlations are significant,
  consider more factors
• Do test of significance as in the next two
  slides.
• The number of factors to be considered should be
  more than the number vs greater than or equal to
  one.
• Use Scree graph. The number of values above the
  base line in the graph is the number of factors
  to be considered.

31
Hypothesis Testing method
32
Idea of finding the number of factors

• 1. Varimax method uses the idea of maximizing the
  sum of the variances of the square of the
  loadings.
• 2. Quartimax method uses the idea of maximum
  possible loadings.

33
Some Notations
34
Factors in Varimax Method

35
factors to be considered in Quartimax Method
36
An Example
