Locating an Epicenter

1

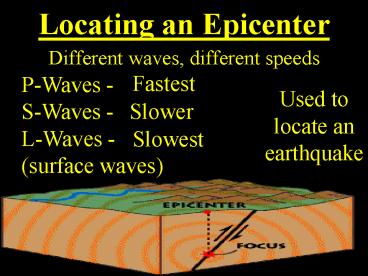

Locating an Epicenter

• Different waves, different speeds

Fastest
P-Waves - S-Waves - L-Waves - (surface waves)
Used to locate an earthquake
Slower
Slowest
2
Measuring Seismic Waves

• 3 Instruments

1. Laser Geodimeter
2. Creep Meter
3. Seismograph
3
1. Laser Geodimeter

• A measuring device using laser light to detect
  movement of the earths crust

1. Laser Geodimeter
4
2. Creep meter

• - A device used to detect subtle movement through
  the use of a wire

5
3. Seismograph-

• An instrument used to register earthquake waves
  and record the time that they arrive

6
a. Seismogram-

• The lines traced on the recording tape during a
  quake

Height determines strength
7
b. Seismologist-

• The person who studies earthquakes

BENO GUTENBERG was the foremost observational
seismologist of the twentieth century.
http//newton.nap.edu/html/biomems/bgutenberg.html
8
Seismograph Stations

• -use wave speeds to locate epicenters

Quake Local lt100km Regional 100-1400km Teleseismic
gt 1400km
Triangulate to find epicenter
9
Basic Structure of the Earth
10
Basic Structure of the Earth
Crust outer layer -between 5km and 60km
thick -lots of Si Al little Fe Mg -less dense
than mantle
11
Basic Structure of the Earth
Mantle Largest layer -lots of Si, O, Mg,
Fe -Upper and Lower mantle -Asthenosphere weak
rock that can flow slowly
12
Basic Structure of the Earth
Outer Core Liquid Mostly Fe
13
Basic Structure of the Earth
Inner Core Solid Mostly Fe
14
Mapping Earths Internal Structure
The speeds and paths of seismic waves change as
they move through different materials
As DEPTH Increases, DENSITY Increases
15
Shadow Zones-
Areas of the earth that DONT receive seismic
waves
16
P-waves- slowed and bent by liquid outer
core -speed up in the inner core
S-waves- cannot travel through liquid -travel in
mantle only
17
Layer Boundaries

• Mohorovicic Discontinuity (Moho)- Boundary
  between the crust and upper mantle

18
People and Earthquakes

• Earthquake Activity

• Provide info. About the Earths interior
• -Cause BILLIONS of in damage
• (lost lives/destruction)

19
Studying Earthquakes

• -Seismologists

• Use seismographs seismograms

20
Measuring Earthquake Magnitude

• Magnitude-

Measure of the energy released during an
earthquake (shown on a seismogram)
21
Richter Scale-
A measurement of the MAGNITUDE of an
earthquake by calculating the seismic ENERGY
released. (based on the height of the lines of
the seismogram)
-No upper limit (9.5) -Most quakes are too
low to be felt
55,000 3.0 - 4.9 1000s every day lt 3.0
22
Describing Earthquake Intensity
Mercalli Scale-
A scale for measuring the seismic
intensity of an earthquake by rating THE EFFECTS
(amount of damage) at different sites
23
Damage depends on

• Strength of quake
• Nature of surface material
• Design of structures
• Distance from epicenter

24
Liquefaction-

• Occurs when wet soil acts more like a liquid
  during an earthquake
• May cause buildings to sink or collapse

25
Tsunamis-
Seismic Seawave

• Begins over the earthquakes focus
• Can be highly destructive
• Can reach 30 meters high !!

(Pacific Tsunami Warning Center, Hilo Hawaii)
26
Earthquake Safety
Cant predict but Knowing where quakes are
likely to happen helps us to prepare
27
Quake Resistant Structures
Most loss of life is due to crumbling structures

• Reinforced walls with steal bars
• Flexible foundation supports
• (absorb shock)

28
Before a Quake
-Move heavy objects to lower shelves -Learn how
to turn off gas/water/ electric - Secure hot
water heater and other major appliances
29
(No Transcript)
30
During a Quake
Indoors-
Move away from glass and falling objects -get
under a sturdy door frame or table / desk
31
During a Quake
Outdoors-
Stay away from power lines, buildings,
chimneys -get out in the open
32
After a Quake
-Check gas/water/electricity for damage -shut
off valves -Leave building, call authorities -Be
careful, things could still fall
