Incremental Maintenance for Materialized Views over Semistructured Data

1

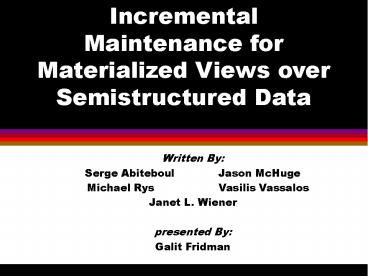

Incremental Maintenance for Materialized Views
over Semistructured Data

• Written By
• Serge Abiteboul Jason McHuge
• Michael Rys Vasilis Vassalos
• Janet L. Wiener
• presented By
• Galit Fridman

2
Outline

• Introduction
• Incremental Maintenance Approach
• Definitions
• Incremental Maintenance Algorithm
• Evaluation
• Conclusion

3
Introduction

• Database views increase the flexibility of a
  database system.
• Views are materialized to speed up querying, when
  the time is critical .

4
Introduction (cont.)

• The view contents must be maintained in order to
  preserve consistency with the base data. Two
  ways
• Recomputing the view contents from the database.
• Computing the incremental updates to the view,
  based on the updates to the database. (used by
  the new algorithm)

5
Incremental Maintenance Approach

• For nearly all types of database updates. It is
  more efficient to apply this algorithm to the
  view than recompute the view from the database.

6
The Algorithm is Based on

• OEM - Object Exchange Model
• Lorel Query Language

7
OEM - Object Exchange Model
8
Lorel Query Language

• Uses the select..from..where clauses and
  additional clause with.
• Provides powerful path expressions for traversing
  the data and rules.

9
Standard Query

• Example 1
• select e
• from Guide.Restaurant r, r.Entree e
• where r.Name Baghdad Cafe
• and e.Ingredient Mushroom
• The answer is 9

10
View Specification Statements

• Identify objects within a graph.
• Import arbitrary subgraphs.
• Add or remove objects appearing in the view.

11
View Specification

• Example 2
• define view FavoriteEntrees as Entrees
• select e
• from Guide.Restaurant r, r.Entree e
• where exists x in r.Name Baghdad Cafe
• and exists y in e.Ingredient Mushroom
• with e.Name n ,e.Ingredient I

12
Materialized Views

• Primary objects- objects that are bound to e.
• adjunct objects - subobjects discovered by the
  with clause.

13
Update Operations

• Insertion and deletions of the edge.
  Denoted ltIns,o1,L,o2gt
• ltDel,o1,L,o2gt
• Change of value of the atomic object.
• Denoted
• ltChg,o1,OldVal,NewValgt

14
Incremental Maintenance Algorithm Input

• 1. View specification statements.
• 2. Update U ltIns,o1,L,o2gt,
• ltDel,o1,L,o2gt, Chg,o1,Oldval,NewValgt
• 3. New database state DB.
• 4. View instance V.

15
Incremental Maintenance algorithm

• Basic Structure

16
Base Cost For Update Operations
17
Database Size
18
Number of label occurrences
19
Length of the form clause
20
Bound Variable Position
21
Selectivity of the where clause
22
Conclusion

• Advantage
• The algorithm outperforms recomputation of the
  view, even for large numbers of insert and delete
  edge updates.
• Scales well with increasing the database.
• Disadvantage
• can be expensive as full recomputation of the
  view for a single atomic value change.
