Control limitations for unstable plants

1

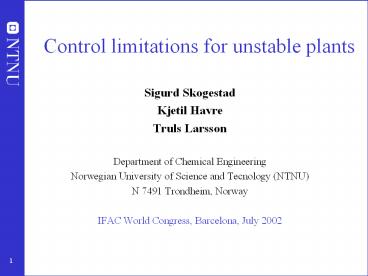

Control limitations for unstable plants

• Sigurd Skogestad
• Kjetil Havre
• Truls Larsson
• Department of Chemical Engineering
• Norwegian University of Science and Tecnology
  (NTNU)
• N 7491 Trondheim, Norway
• IFAC World Congress, Barcelona, July 2002

2
Previous work Performance limitation for
unstable plant when combined with unstable (RHP)
zero

• Presence of unstable (RHP) poles impose a lower
  limit on the system bandwidth which may be
  incompatible with the upper limit imposed by
  RHP-zeros and time delays
• Boyd and Desoer (1985)
• Doyle (1986), Doyle, Francis and Tannenbaum
  (1992)
• Middleton (1991)
• Kwakernaak (1995)
• Seron, Braslavsky and Goodwin (1997)
• Åstrøm (1997)
• Havre and Skogestad (1998), Skogestad and
  Postlethwaite (1996)

Unstable pole by itself Any fundamental
limitations?
3
Outline

• Previous work RHP-pole and RHP-zero
• Introductory example Control of G1/(s-10) with
  P-controller
• Minimum input usage in terms of H2 and H-infinity
  norms
• Inverse response in input
• Examples
• Conclusion

4
Feedback control system
5
Introductory example
Note inverse response for input (u)
6
Introductory example.
RHP- Pole
RHP- zero
7
Minimum input energy for Kc20(with closed-loop
pole move to mirror image)
Introductory example.
8
Fast response possible with large Kc (and large
u)
Introductory example.
9
Inverse response for bicycle caused by underlying
instability
10
Performance limitation for unstable plant

• Stabilization Requires the active use of
  manipulated inputs
• Obervations from simulations
• Input usage Large inputs may be required
• Inverse response for input
• Quantify effect on control performance!

11
(No Transcript)
12
Example SISO
13
Proof (SISO case)
14
Conclusion input usage

• Instability requires active use of inputs
• Quantified by lower bound on norm of KS
• u KS (r Gd d n)
• Stabilization may be impossible with constraints
  on input u

15
2. Performance limitation for stabilized plant
Unstable plant G
Primary output
Secondary measurement (for stabilization)
P
Stabilized plant
y1
r2
G1 G2
u
K2
y2
Question Does original instability (in G2)
impose limitations on the use of
r2 to control y1 (for the
stabilized plant P)
16
Special (and common) case Control objective at
the input y1 u
17
Challenge for potential World Championship in
bicycle tilting (y1 u)
18
Application Anti-slug control
Two-phase flow (liquid and vapor)
Slug (liquid) buildup
19
Anti slug-control - control structure
Undesired slug flow (limit cycle) unless feedback
control is used to stabilize a steady flow
regime (desired, but open-loop unstable)
20
Anti slug control experimental data
(Statoil/SINTEF)
Pressure (y2)
Controller ON
OFF
INPUT u
Density
21
Conclusion

• RHP-pole Performance limitations at the plant
  input (u)
• Minimum input usage
• RHP-zero Performance limitations at the plant
  output (y)
• Minimum output variation

See also the home page of Sigurd
Skogestad http//www.chembio.ntnu.no/users/skoge/
