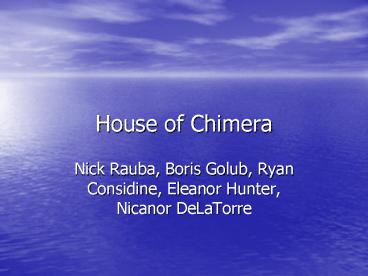

House of Chimera

1
House of Chimera

• Nick Rauba, Boris Golub, Ryan Considine, Eleanor
  Hunter, Nicanor DeLaTorre

2
3D Model
3
Floor Plan and Layout

• The floor plan of any castle is important because
  it can mean life or death when it is under siege.
  Our proposed castle comes with a complete dungeon
  with prison cells and escape route. It has
  battlements along the walls and towers. The
  towers could be used to set up catapults and
  ballistae, and can also be garrisoned by archers.

4
Blue Prints
5
Plot Planning

• When built by mountain sides, this castle is
  literally unconquerable. Surrounded by fortified
  walls (10 feet thick) and steep cliffs the
  location of this castle is almost as important as
  its construction. If by chance the castles
  defenses are breached the castle comes with a
  royal escape route which invaders can neither use
  themselves or go around. The dungeon also doubles
  as a sanctuary for women, children, and extra
  supplies during war.

6
Elevation

• Built high on a elevated plateau this castle
  provides a majestic view of the surrounding
  countryside. Able to maintain a watchful eye on
  servants and enemies alike in your land is key
  for any ruler. The 40 foot tall walls along with
  the natural mountain walls prevent larger siege
  weapons from approaching your castle. Battering
  rams and catapults alike will have an impossible
  time setting up under the hails of arrows and
  rocks from your elevated forces.
