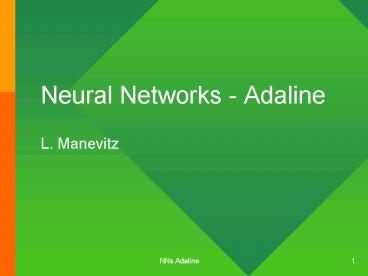

Neural Networks - Adaline

• L. Manevitz

2
Plan of Lecture

• Perceptron Connected and Convex examples
• Adaline Square Error
• Gradient
• Calculate for and, xor
• Discuss limitations
• LMS algorithm derivation.

3
What is best weights?

• Most classified correctly?
• Least Square Error
• Least Square Error Before Cut-Off!
• To Minimize S (d Sw x)2 (first sum over
  examples second over dimension)

4
Least Square Minimization

• Find gradient of error over all examples. Either
  calculate the minimum or move opposite to
  gradient.
• Widrow-Hoff(LMS) Use instantaneous example as
  approximation to gradient.
• Advantages No memory on-line serves similar
  function as noise to avoid local problems.
• Adjust by w(new) w(old) a (d) x for each x.
• Here d (desired output Swx)

5
LMS Derivation

• Errsq S (d(k) W x(k)) 2
• Grad(errsq) 2S(d(k) W x(k)) (-x(k))
• W (new) W(old) - m Grad(errsq)
• To ease calculations, use Err(k) in place of
  Errsq
• W(new) W(old) 2mErr(k) x(k))
• Continue with next choice of k

6
Applications

• Adaline has better convergence properties than
  Perceptron
• Useful in noise correction
• Adaline in every modem.

7
LMS (Least Mean Square Alg.)

• 1. Apply input to Adaline input
• 2. Find the square error of current input
• Errsq(k) (d(k) - W x(k))2
• 3. Approximate Grad(ErrorSquare) by
• differentiating Errsq
• approximating average Errsq by Errsq(k)
• obtain -2Errsq(k)x(k)
• Update W W(new) W(old) 2mErrsq(k)X(k)
• Repeat steps 1 to 4.

8
Comparison with Perceptron

• Both use updating rule changing with each input
• One fixes binary error the other minimizes
  continuous error
• Adaline always converges see what happens with
  XOR
• Both can REPRESENT Linearly separable functions

9
Convergence Phenomenom

• LMS converges depending on choice of m.
• How to choose it?

10
Limitations

• Linearly Separable
• How can we get around it?
• Use network of neurons?
• Use a transformation of data so that it is
  linearly separable

11
Multi-level Neural Networks

• Representability
• Arbitrarily complicated decisions
• Continuous Approximation Arbitrary Continuous
  Functions (and more) (Cybenko Theorem)
• Learnability
• Change Mc-P neurons to Sigmoid etc.
• Derive backprop using chain rule. (Like LMS
  TheoremSample Feed forward Network (No loops)

12
Replacement of Threshold Neurons with Sigmoid or
Differentiable Neurons

• Sigmoid

• Threshold

13
Prediction

• delay

• Compare

• Input/Output

• NN

14
Sample Feed forward Network (No loops)

• Weights

• Output

• Weights

• Weights

• Input

• Wji

• Vik

F(S wji xj
