Mixing Desks

1

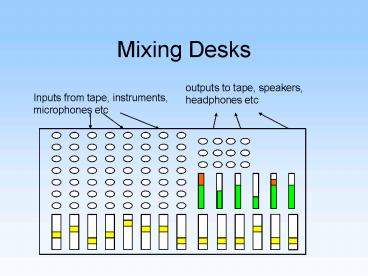

Mixing Desks
2
Inputs

• Microphone inputs
• Line inputs
• Tape returns
• Auxiliary returns
• Mix b inputs
• Insert points
• I/O

3
Outputs

• Main outs
• Tape outs
• Insert points
• Auxiliary sends
• Group outputs
• I/O
• SAME AS TAPE OUTS ON SOME DESKS

4
Overview of desk

• Live, monitoring, broadcast, recording
• Many configurations/conventions
• Naming convention
• Channels subgroups outputs
• i.e. 2482
• In line or split consoles

5
In line configuration
6
Overview of in-line desk
7
Split configuration
8
Overview of Split console
9
Main input section

• Key features
• Input switching
• Attenuation
• Insert points
• Direct out

Pad (only on xlr i/p with no line in)
10
Main input section
To EQ section
11
Gain pot

• Key features
• Gain pot for line and mic inputs
• Flip switch for mic line
• Phase switch
• Phantom power
• Lo cut filter

12
Input activity LEDs
Green LED shows -20dBu signal present Yellow LED
shows 0dB signal level Red LED shows potential
overload
13
Why/How to set gain?

• Inputs from different sources
• Mic level (micro or milliVolts)
• Line level (nominally 0.775V)
• Tape machines
• Electronic instruments (synths etc)
• Either increasing or reducing gain
• Prevent distortion
• Different gain structure for mic/line

14
Use Pre Fade Listen (PFL)

• Audition input signal
• Regardless of fader position
• With typical input activity
• Adjust gain pot until signal averages 0dB on the
  meters (yellow LED)

15
example

• Microphone input gain 10dB to 60dB
• line input gain -10dB to 40dB
• If a mic provides 6mV with an input around 94dB
  SPL. How many dBs of gain would be required to
  bring the level up to nominal line level?

16
Solution
17
Equalisation
Next lecture
18
Auxiliary sends

• Set up monitor mixes
• Side chain effects sends
• Individual channel send
• Mixed onto bus
• Master send for each aux (see later)
• Pre or post channel fader
• Usually Post eq post mute

19
Auxiliaries

• Key features
• 8 auxiliary sends (gl3300)
• Two groups of 4
• Pre fade post fade switch

20
Auxiliary sends
Channel
Aux Master faders
21
Routing Muting

• Key features
• Pan control
• PFL button
• Mute button
• Channel fader
• Level LED indicators
• Routing buttons
• Mute group select

22
Routing Muting

• Pan
• Control signal position
• Control routing to subgroups
• Mute
• Removes signal from any bus after channel fader
• Mute groups
• Select which mute groups the channel will belong
  to.

23
Signal Routing

• Channel fader sets channel level to groups or
  main faders
• Routing buttons to determine signal destination
• Route to subgroup with switches
• Use pan to select odd or even subgroup
• Therefore selects tape track (default)
• Used to group signals or tracks together
• If we run out of subgroups ??
• Use direct outs
• No routing buttons, simply use patch bay

24
Monitoring

• To monitor (listen to) signals being recorded
• Monitor tape returns (rather than direct signals)
• Mix b (in line desks) (limited facilities)
• Monitor section (split desks) (full facilities)

25
Patch Bays

• Usually 48 jacks arranged in two rows of 24
• Method of interconnecting equipment in the studio
• Easily reconfigure connections
• Access to inaccessible connections

26
Normalled
27
Half normalled
28
De-normalled
29
Typical patch bay configuration
30
(No Transcript)
31
Desk initialisation

• All buttons out
• All pots to centre détente position (Unity
  gain)
• Or fully anticlockwise (Gain and aux)
• Faders set to zero (-8)
• EQ set flat and switched out
• Patchbay all leads out
• Its your session take control of the desk and
  patchbay

32
Fault finding

• Use your meters and LEDs to trace the signal
• Try to find where the signal is reaching and
  where it isnt
• Try another patch lead
• Try something you know works.

33
VERY IMPORTANT

• DO NOT EVER unplug any leads from the back of ANY
  piece of equipment
• If there is any kind of problem, then ask the
  studio technicians Paul and Greg
• Or your lecturer

34
Lots of other stuff

• Headphone mixes
• Slate
• Input impedance
• Output impedance
• Metering
• Output levels
• Distortion
• Crosstalk

• Talkback
• Oscillator
• monitoring
• noise
• Frequency response
• Automation
• Operating levels
• Low cut filter
• Matrix

35
Further reading

• Sound and recording, Rumsey McCormick
• Chapters 6 7
• Practical recording techniques, Bartlett
• Chapter 12
• Sound recording practice, Borwick
• Chapter 7

36
Online

• http//www.record-producer.com/learn/technology.cf
  m
• http//www.mackie.com/products/8bus/index.html
• http//www.behringer.com/02_products/prodindex.cfm
  ?idMX9000langeng
• http//www.allen-heath.com/gl3300.asp
