Moon Halos.

1

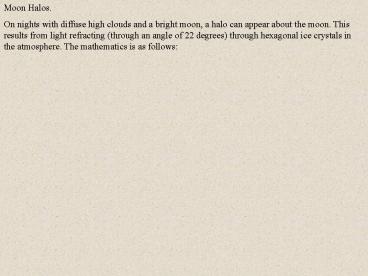

Moon Halos. On nights with diffuse high clouds
and a bright moon, a halo can appear about the
moon. This results from light refracting (through
an angle of 22 degrees) through hexagonal ice
crystals in the atmosphere. The mathematics is as
follows
2
Hexagonal ice crystals look something like this.
3
A side-on view of an ice crystal
4
When light strikes the boundary between two
different substances (air and ice) it refracts.
Light ray
Air-Ice boundary
5
Snells Law is the physical relation governing
refraction. It states that the angle of incidence
and the angle of refraction are related by the
formula
The constant k depends on the nature of the two
substances. For air-ice, it is about 1.31.
6
Light enters the crystal, and then leaves it,
making two refractions.
?1
?2
?
?3
?4
7
Here, the angle a represents the total angle the
light bends.
?1
?2
?
?3
?4
8
The necessary relations needed to determine a are
on the next slide.
9
?1
?2
?
?3
?4
10
We solve the relations on the next slide.
11
(No Transcript)
12
Technically speaking, there are about a zillion
ice crystals in the atmosphere all oriented
randomly. The angle
will take many different values.
13
This means that the light will be scattered
through many different angles, though there is a
catch.
14
If there are many different angles of incidence
that yield approximately the same a, light will
seem to build up at that angle.
15
Light builds up most where the slope is smallest.
This is 21.83929990 degrees.
16
This is the classic 22 moon halo.
Moonlight
Diffuse clouds
Apparent Halo
22
17
Light inside the halo is refracted out in a cone
that misses the observer, making this region less
bright to the observer.
Moonlight
Diffuse clouds
Apparent Halo
18
Light outside the halo is refracted out in a cone
that misses the observer, making this region less
bright to the observer.
Moonlight
Diffuse clouds
Apparent Halo
19
Light on the halo is refracted out in a cone that
the observer sees, making this region brighter to
the observer.
Moonlight
Diffuse clouds
Apparent Halo
