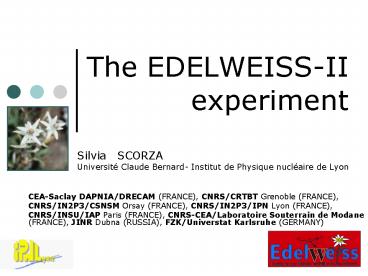

The EDELWEISS-II experiment

• Silvia SCORZA
• Université Claude Bernard-
  Institut de Physique nucléaire de Lyon
• CEA-Saclay DAPNIA/DRECAM (FRANCE), CNRS/CRTBT
  Grenoble (FRANCE),
• CNRS/IN2P3/CSNSM Orsay (FRANCE), CNRS/IN2P3/IPN
  Lyon (FRANCE),
• CNRS/INSU/IAP Paris (FRANCE), CNRS-CEA/Laboratoire
  Souterrain de Modane (FRANCE), JINR Dubna
  (RUSSIA), FZK/Universtat Karlsruhe (GERMANY)

2
Direct Search Principle
Detection of the energy deposited due to elastic
scattering off target nuclei

• Low energy threshold
• Large detector mass
• Low background
• Radio purity
• Active/passive shielding
• Deep underground sites

• Event Rate
• lt 1 ev /kg/week
• Recoil Energy
• 1 100 keV

3
EDELWEISS _at_ LSM
4
EDWII set-up

• Radiopurity
• dedicated HPGe detectors for systematic checks of
  all materials
• Strict control of bkg material
  selection/cleaning procedure/Environment
• ? Shielding
• 20 cm Pb shielding
• 50 cm PE and better coverage
• active µ veto
• (gt 98 coverage)
• Up to 110 detectors
• -gt 40kg Ge detector
• Ge/NTD
• Develop new ID detectors
• ? Goal EDW-I 100
• sW-n 10-8 pb
• lt0.003 evts/kg/day (Ergt10keV)

5
µ-veto
Candidates for coincident veto-bolometer events
Accidental coincidences
Expected from Geant4 simulation 0.03
events/kg.d Measured 0.04
events/kg.d
6
Ge Heat-Ionization Detectors

• Simultaneous measurements
• Ionization _at_ few V/cm with Al electrodes
• Heat _at_ 20 mK with Ge/NTD sensor
• Different Ionization/Heat energy ratio for
  nuclear and electronic recoils (dominate bkg)

7
Event by event background rejection
8
Edw-I limiting background
PRD71, 122002 (2005)
Problem Surface electron recoils

• Interpretation
• Bad charge collection (trapping and
  recombination)
• Indications of 210Pb contamination
• (exposition to Radon)
• a rate e rate
• 4 /kg.day

9
210Pb source
210Pb??
210Po??
10
GeNTD data improved bkg

• 210Pb-chain background reduction of x2 relative
  to EDELWEISS-I

• Gamma background reduction of x3 relative to
  EDELWEISS-I

Full volume
Conclusion Reduction of background from EDW-I
to EDW-II
Further bkg reductions after fiducial
coincidence cuts
11
Physics run GeNTD
Question How to reach lt 10-8 pb ?

• 11 detectors with lt30 keV threshold
• Threshold chosen before start of run
• (EDW-I results ? expected ? bkg)
• 93.5 kg.day
• 3 events observed in nuclear recoil band
• 31, 31 and 42 keV
• Evidence for events with deficient charge
  collection from 210Pb

• NEED
• gt1000 kgd at 15 keV threshold
• gt105 rejection for gammas
• to reject expected gt4000 ? from 210Pb

Preliminary
EDELWEISS 93.5 kgd
IDea Develop detectors with surface event
rejection using interleaved electrode design (ID)
12
ID detector

• NTD heat sensor
• E-field modified near surface with interleaved
  electrodes
• BD signals -gt vetos surface
• 1x200g 3x400g tested in2008
• 10x400g running

A electrodes 2V
B electrodes 1V
Z (cm)
guard G 1V
AB near- surface event
AC bulk event
A,BC event in low-field area
guard H - 1V
C electrodes-2V
D electrodes -1V
Radius (cm)
13
ID detector rejection

• Gamma rejection of 400g
• 1 month calibrations

• Beta rejection of 200g

6x104 210Po
6x104 210Bi
6x104
?-equivalent to 103 kgd
?-equivalent to 3x104 kgd
0 events
14
Physics run ID detectors
Conclusion This is the good technology for 10-8
pb and beyond

• 1 x 400g 1 x 350g detectors, 86 live days
• lt15 keV threshold achieved for exposure of 18.6
  kg.days
• 50 efficiency at 10 keV
• No events in
• (or around) nuclear recoil band

15
Limits

• 93.5 kgd GeNTD
• 11 detectors x 4 months
• 30 keV threshold
• 3 events observed in nuclear recoil band
• 18.3 kgd ID
• 2 detectors x 4 months
• 15 keV threshold
• No nuclear recoils
• No evts outside ? band
• 2009 10 ID detectors
• improvement in sensitivity 4x10-8 pb
• More detectors build in 2009

Preliminary
16
Conclusions/Outlook

• Significant reduction in ?, ß and ? backgrounds
  relative to EDELWEISS-I
• Improved understanding of backgrounds and of
  response of detectors to backgrounds
• Improved limit relative to EDELWEISS-I
• Passive background reduction alone not sufficient
  to reach lt 10-8 pb
• ID detectors have the surface rejection needed to
  reach this goal

• Running in 2009 with 10 x 400g detectors
• Prototype of ID detectors with larger fiducial
  volumes currently in test
• EURECA 1 ton scale experiment
• (CRESST, EDELWEISS, CERN, ) _at_ LSM
  extension

17
This is the end
18
Decay Chain
19
EDELWEISS-II 210Pb source calibration

• Confirms interpretation of EDW-I bkg as 210Pb
  surface ?.
• Response of detectors to this important background

Edw-II
210Pb??
EDELWEISS-II 210Pb source
210Bi??
Edw-II
210Bi??
210Po??
Edw-II
Edw-I data
206Pb recoils coincident with 210Po ?
?Implantation depth of 210Pb
20
EURECA - II
21
EURECA-I
22
(No Transcript)
23
France-Italy Fréjus tunnel new safety gallery
planned
Existing lab
s ?
Existing road tunnel

• 2 projects
• Limited extension
• Very large cavity

24
Implantation of new lab
First drawings nov 2006 (Lombardi eng company)
G Gerbier
EURECA ULISSE meeting- Lyon july 2008
24
25
Compatibility DAMA other experiments SI
26
Compatibility DAMA other experiments SD
27
Present limits
28
Experimental data
Number of events in WIMP region qlt 0.5, 25 lt E
lt 60 ??? registered
23 events
Alpha rate 2.5 events
29
Estimation of background from 210Pb
460 events
N alphas in calibration spectrum 3040
events Number of events in WIMP region qlt 0.5,
25 lt E lt 60 ??? registered 460 events
Expected number events from calibration with
210Pb 37 events
